| 1 |
Engine running, signal |
17E |
| 1 |
Engine running, signal |
35E |
| 1 |
Engine running, signal |
12G |
| 10 |
Gear range, status |
10G |
| 10 |
Gear range, status |
12G |
| 12 |
Reverse gear, status |
36E |
| 12 |
Reverse gear, status |
13G |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
9F |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
2F |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
36F |
| 14 |
Active curve illumination actuator motor, actuation |
23D |
| 14 |
Active curve illumination actuator motor, actuation |
29D |
| 15 |
Active curve lights position sensor, signal |
18D |
| 15 |
Active curve lights position sensor, signal |
33D |
| 16 |
Increase light output, request |
20B |
| 16 |
Increase light output, request |
32B |
| 17 |
Low beams, actuation |
23B |
| 17 |
Low beams, actuation |
28B |
| 18 |
Rear fog light button, status |
11B |
| 19 |
Rear fog light, request |
36F |
| 19 |
Rear fog light, request |
11D |
| 2 |
Drivetrain operational, signal |
35E |
| 2 |
Drivetrain operational, signal |
12G |
| 2 |
Drivetrain operational, signal |
17E |
| 20 |
Headlamp range adjustment actuator motor, actuation |
29C |
| 21 |
Light distribution actuator motor, actuation |
29E |
| 22 |
Light distribution position sensor, signal |
33E |
| 3 |
Intelligent Light System, status |
17F |
| 3 |
Intelligent Light System, status |
9G |
| 3 |
Intelligent Light System, status |
35G |
| 4 |
Steering wheel angle sensor, signal |
5C |
| 5 |
Steering wheel angle, signal |
35F |
| 5 |
Steering wheel angle, signal |
9E |
| 6 |
Combination switch, status |
5B |
| 6 |
Combination switch, status |
35F |
| 6 |
Combination switch, status |
9E |
| 7 |
Wheel speed, signal |
36E |
| 7 |
Wheel speed, signal |
9F |
| 8 |
Synchronization, signal |
17C |
| 9 |
Cornering illumination, actuation |
29C |
| 9 |
Cornering illumination, actuation |
23C |

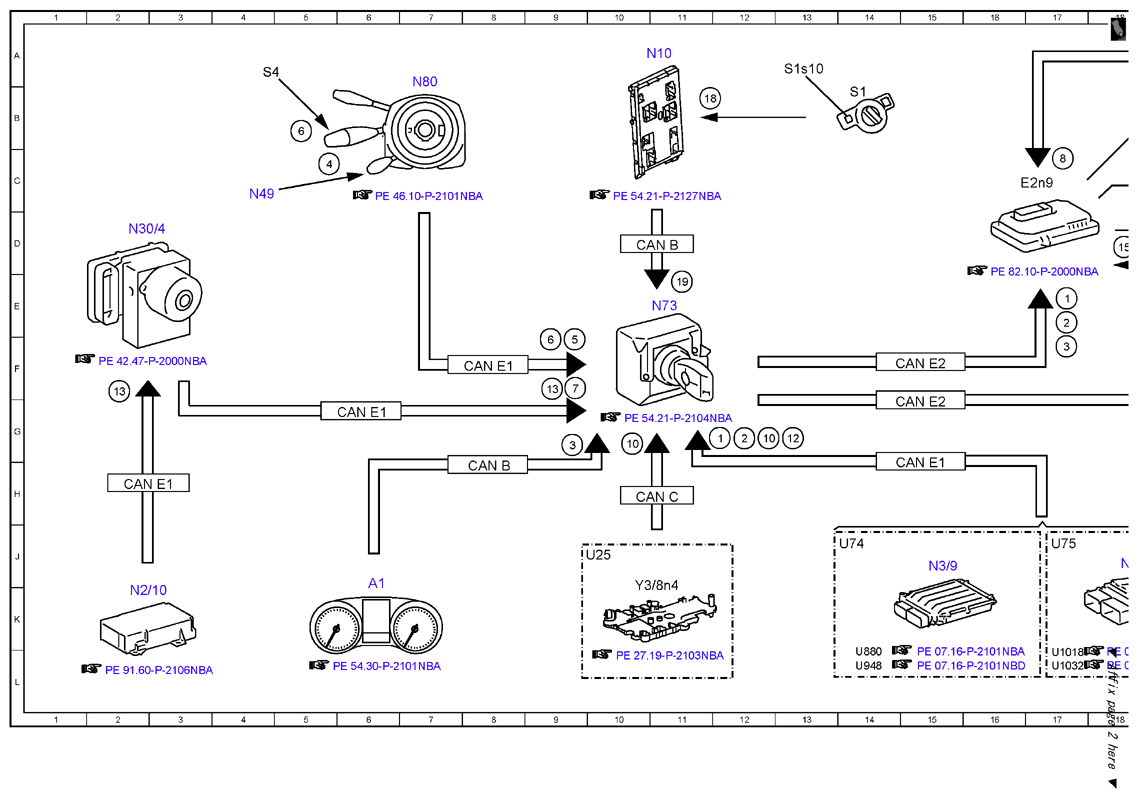

| A1 |
Instrument cluster |
6K |
| CAN B |
Interior CAN |
8H |
| CAN B |
Interior CAN |
10D |
| CAN C |
Drive train CAN |
10H |
| CAN E1 |
Chassis CAN 1 |
2H |
| CAN E1 |
Chassis CAN 1 |
6G |
| CAN E1 |
Chassis CAN 1 |
15H |
| CAN E1 |
Chassis CAN 1 |
8F |
| CAN E2 |
Chassis CAN 2 |
15G |
| CAN E2 |
Chassis CAN 2 |
15F |
| CAN E2 |
Chassis CAN 2 |
20G |
| CAN E2 |
Chassis CAN 2 |
28G |
| CAN E2 |
Chassis CAN 2 |
20A |
| CAN E2 |
Chassis CAN 2 |
28A |

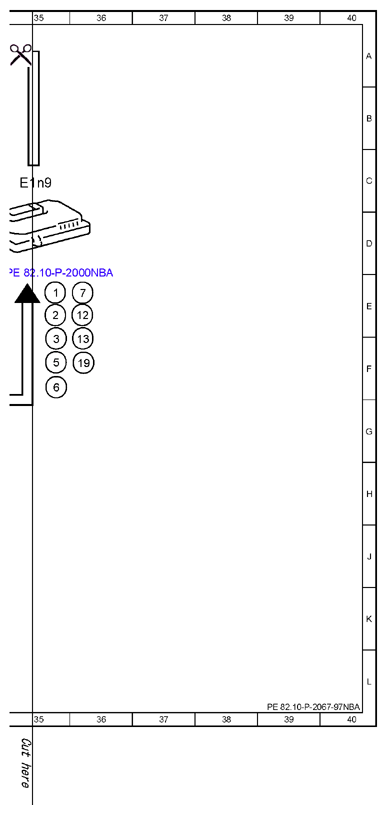

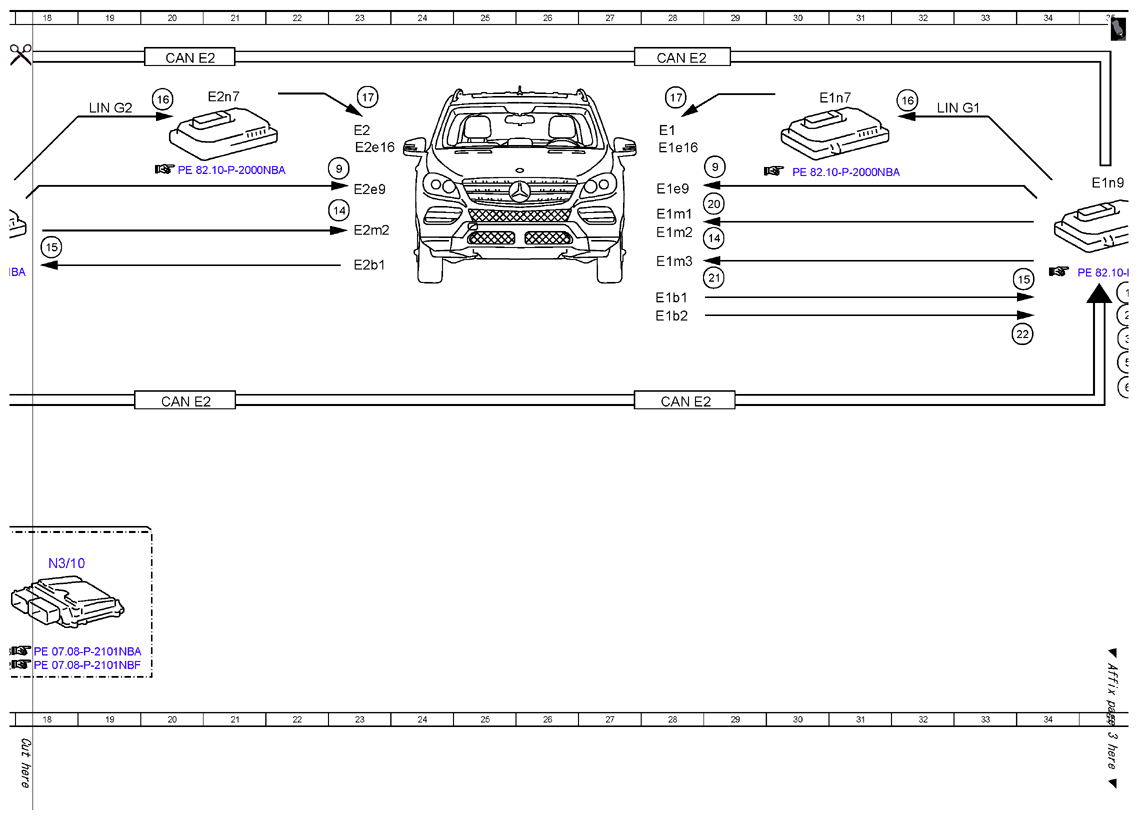

| E1 |
Left front lamp unit |
28B |
| E1b1 |
Left active curve illumination position sensor |
28E |
| E1b2 |
Left light distribution position sensor |
28E |
| E1e16 |
Left low beam (long range) |
28C |
| E1e9 |
Left cornering illumination |
28C |
| E1m1 |
Left headlamp range adjustment actuator motor |
28D |
| E1m2 |
Left active curve illumination actuator motor |
28D |
| E1m3 |
Left light distribution actuator motor |
28D |
| E1n7 |
Actuation module for left front exterior lights LED |
30B |
| E1n9 |
Left headlamp control unit |
35C |
| E2 |
Right front lamp unit |
23B |
| E2b1 |
Right active curve illumination position sensor |
23D |
| E2e16 |
Right low beam (long range) |
23C |
| E2e9 |
Right cornering illumination |
23C |
| E2m2 |
Right active curve illumination actuator motor |
23D |
| E2n7 |
Actuation module for right front exterior lights LED |
21B |
| E2n9 |
Right headlamp control unit |
16C |
| LIN G1 |
Left headlamp LIN |
32B |
| LIN G2 |
Right headlamp LIN |
19B |
| N10 |
SAM control unit |
11A |
| N2/10 |
Supplemental restraint system control unit |
2K |
| N3/10 |
ME-SFI [ME] control unit |
18J |
| N3/9 |
CDI control unit |
15J |
| N30/4 |
Electronic Stability Program control unit |
2D |
| N49 |
Steering wheel angle sensor |
4C |
| N73 |
Electronic ignition switch control unit |
11E |
| N80 |
Steering column module control unit |
7A |
| S1 |
Exterior lights switch |
14B |
| S1s10 |
Rear fog light button |
13A |
| S4 |
Combination switch |
4A |
| U1018 |
Valid for gasoline engine 276 |
17L |
| U1032 |
Valid for engine 278 and 157 |
17L |
| U25 |
Valid for automatic transmission |
9J |
| U74 |
Valid for diesel engines |
14J |
| U75 |
Valid for gasoline engines |
17J |
| U880 |
Valid for engine 642 |
14L |
| U948 |
Valid for diesel engine 651 |
14L |
| Y3/8n4 |
Fully integrated transmission control unit |
10K |
