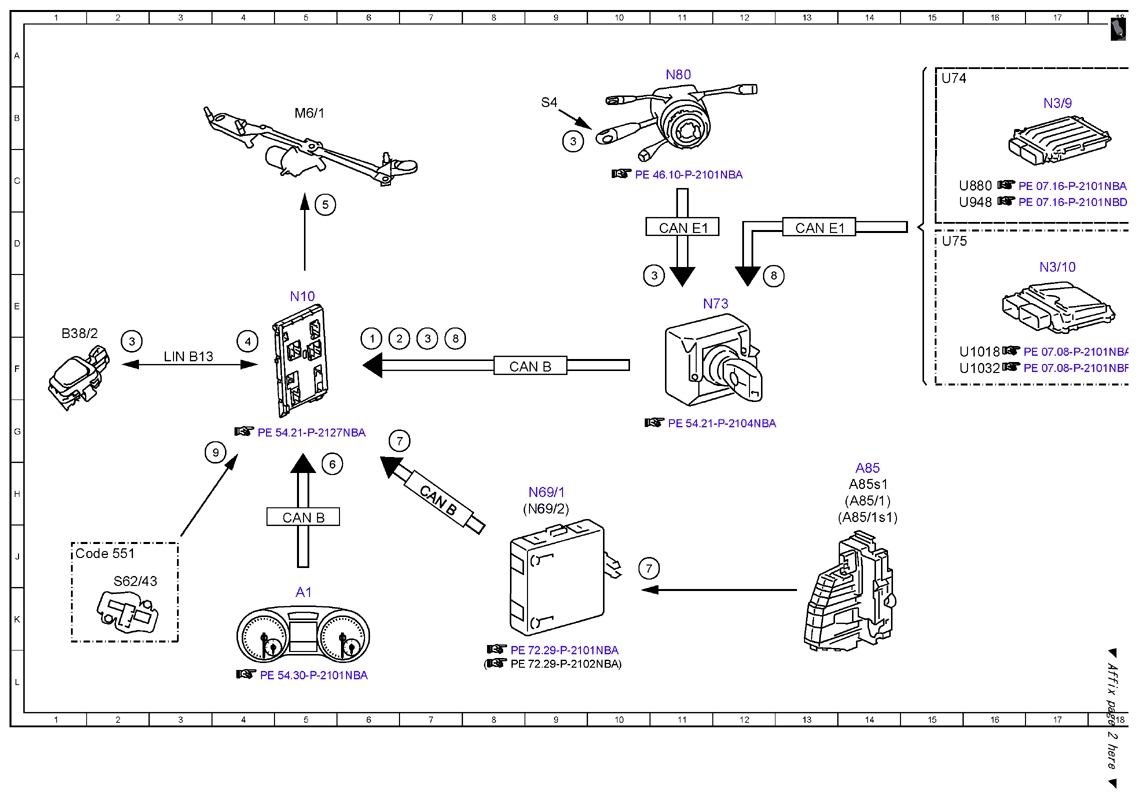

| 1 |
Circuit 15, status |
6F |
| 2 |
Circuit 50, status |
6F |
| 3 |
Combination switch, status |
11E |
| 3 |
Combination switch, status |
9B |
| 3 |
Combination switch, status |
2F |
| 3 |
Combination switch, status |
7F |
| 4 |
Rain/light sensor, status |
4F |
| 5 |
Wiper motor, actuation |
5C |
| 6 |
Vehicle speed, signal |
5G |
| 7 |
Door rotary tumbler switch, status |
6G |
| 7 |
Door rotary tumbler switch, status |
10J |
| 8 |
Gear range, status |
7F |
| 8 |
Gear range, status |
12D |
| 8 |
Gear range, status |
19C |
| 9 |
Engine hood contact switch, status |
4G |
| A1 |
Instrument cluster |
5K |
| A85 |
Left front door lock |
14H |
| A85/1 |
Right front door lock |
14H |
| A85/1s1 |
Right front door pre-locking position microswitch |
14H |
| A85s1 |
Left front door pre-locking position microswitch |
14H |
| B38/2 |
Rain/light sensor with additional functions |
1F |
| CAN B |
Interior CAN |
7H |
| CAN B |
Interior CAN |
8F |
| CAN B |
Interior CAN |
5H |
| CAN C |
Drive train CAN |
20D |
| CAN E1 |
Chassis CAN 1 |
11D |
| CAN E1 |
Chassis CAN 1 |
13D |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
1J |
| LIN B13 |
Roof LIN |
3F |
| M6/1 |
Wiper motor |
5B |
| N10 |
SAM control unit |
5E |
| N3/10 |
ME-SFI [ME] control unit |
17D |
| N3/9 |
CDI control unit |
17B |
| N69/1 |
Left front door control unit |
9H |
| N69/2 |
Right front door control unit |
9H |
| N73 |
Electronic ignition switch control unit |
11E |
| N80 |
Steering column module control unit |
11A |
| S4 |
Combination switch |
9B |
| S62/43 |
Left engine hood contact switch |
2J |
| U1018 |
Valid for gasoline engine 276 |
15F |
| U1032 |
Valid for engine 278 and 157 |
15F |
| U74 |
Valid for diesel engines |
15A |
| U75 |
Valid for gasoline engines |
15D |
| U880 |
Valid for engine 642 |
15C |
| U948 |
Valid for diesel engine 651 |
15C |

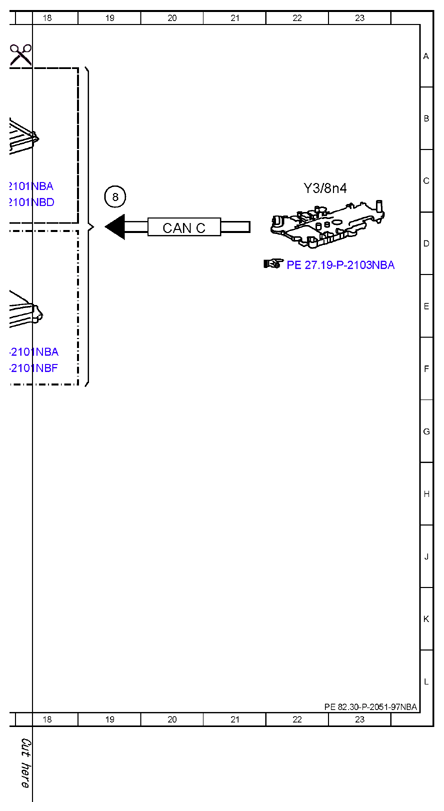

| Y3/8n4 |
Fully integrated transmission control control unit |
22C |
