| 1 |
Central locking, status |
12G |
| 10 |
Exit and warning lamp, request |
6G |
| 10 |
Exit and warning lamp, request |
6D |
| 11 |
Exit and warning lamp, actuation |
3J |
| 11 |
Exit and warning lamp, actuation |
3B |
| 11 |
Exit and warning lamp, actuation |
3C |
| 12 |
Tailgate rotary tumbler switch, status |
13E |
| 12 |
Tailgate rotary tumbler switch, status |
27J |
| 13 |
Anti-theft alarm system, status |
13E |
| 14 |
Ambient lamp, request |
28G |
| 15 |
Ambient lamp, actuation |
30H |
| 16 |
Illuminated door sill molding, request |
28G |
| 17 |
Illuminated door sill molding actuation |
29G |
| 18 |
Load compartment illumination, actuation |
3E |
| 19 |
Liftgate control button symbol illumination, actuation |
29K |
| 2 |
Circuit 15, status |
12G |
| 3 |
Crash, signal |
13K |
| 3 |
Crash, signal |
12H |
| 4 |
Interior lamp, request |
16C |
| 5 |
Rear dome lamp, actuation |
23C |
| 5 |
Rear dome lamp, actuation |
24C |
| 5 |
Rear dome lamp, actuation |
21C |
| 5 |
Rear dome lamp, actuation |
26D |
| 6 |
Footwell lamp, actuation |
23G |
| 6 |
Footwell lamp, actuation |
20G |
| 6 |
Footwell lamp, actuation |
14G |
| 6 |
Footwell lamp, actuation |
23K |
| 6 |
Footwell lamp, actuation |
20K |
| 6 |
Footwell lamp, actuation |
17G |
| 6 |
Footwell lamp, actuation |
25G |
| 7 |
OFF delay time, status |
11D |
| 7 |
OFF delay time, status |
28G |
| 8 |
Automatic function switch, status |
12D |
| 9 |
Main locking position microswitch, status |
10D |
| 9 |
Main locking position microswitch, status |
10F |

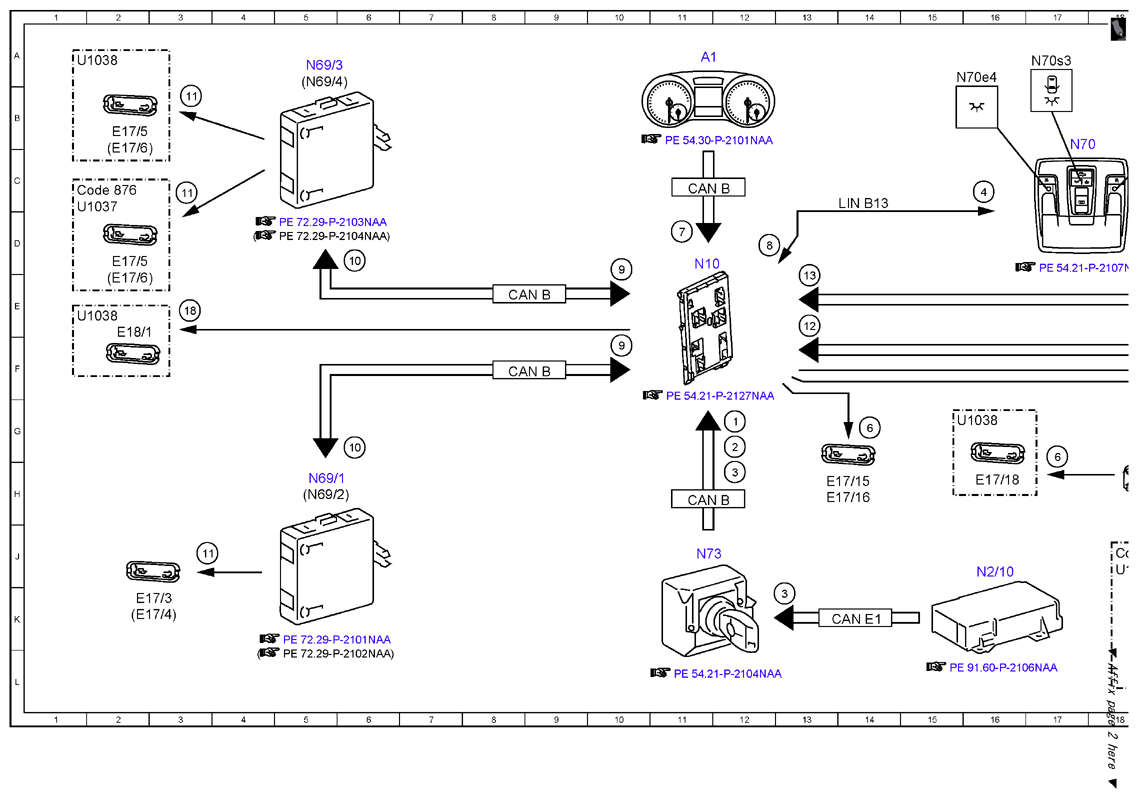

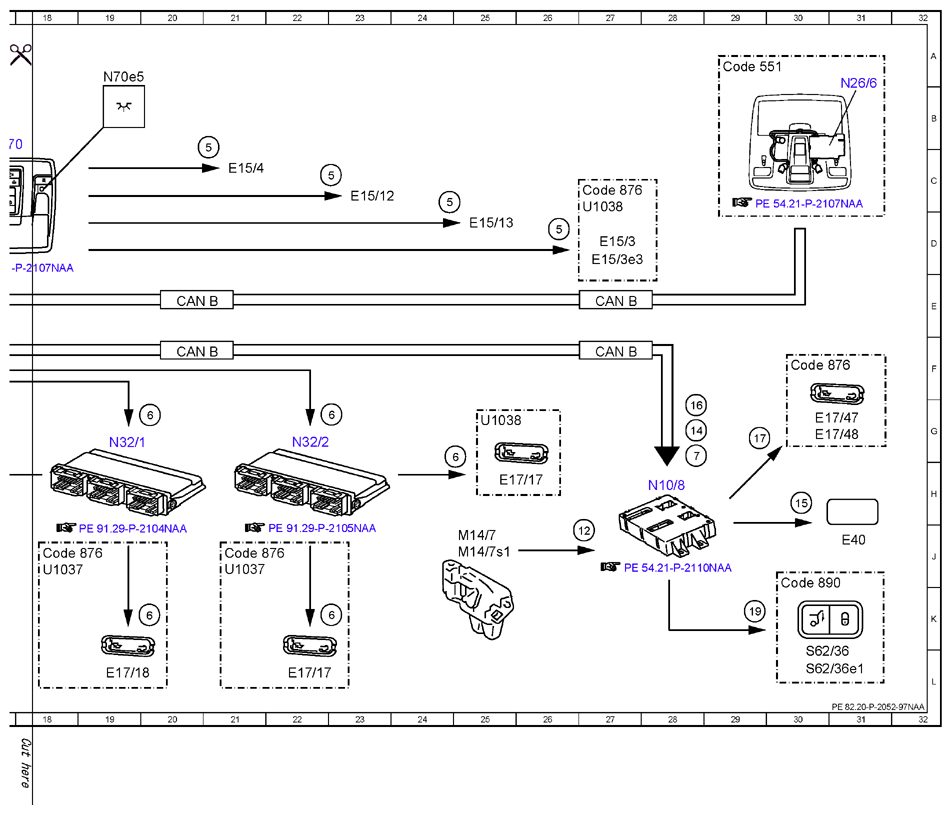

| A1 |
Instrument cluster |
11A |
| CAN B |
Interior CAN |
8F |
| CAN B |
Interior CAN |
11H |
| CAN B |
Interior CAN |
20F |
| CAN B |
Interior CAN |
8E |
| CAN B |
Interior CAN |
11C |
| CAN B |
Interior CAN |
20E |
| CAN B |
Interior CAN |
27F |
| CAN B |
Interior CAN |
27E |
| CAN E1 |
Chassis CAN 1 |
14K |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
29A |
| Code 876 |
Interior lights package |
21J |
| Code 876 |
Interior lights package |
30F |
| Code 876 |
Interior lights package |
18J |
| Code 876 |
Interior lights package |
1C |
| Code 876 |
Interior lights package |
27C |
| Code 890 |
Tailgate control |
30J |
| E15/12 |
Left dome lamp, 2nd seat row |
23C |
| E15/13 |
Right dome lamp, 2nd seat row |
25D |
| E15/3 |
Rear dome lamp |
27D |
| E15/3e3 |
Rear interior lamp |
27D |
| E15/4 |
Central load compartment dome lamp |
21C |
| E17/15 |
Right front footwell lamp |
13H |
| E17/16 |
Left front footwell lamp |
13H |
| E17/17 |
Left rear footwell lamp |
22L |
| E17/17 |
Left rear footwell lamp |
25H |
| E17/18 |
Right rear footwell lamp |
19L |
| E17/18 |
Right rear footwell lamp |
16H |
| E17/3 |
Left front door exit and warning lamp |
2K |
| E17/4 |
Right front door exit and warning lamp |
2K |
| E17/47 |
Left front illuminated door sill molding |
30G |
| E17/48 |
Right front illuminated door sill molding |
30G |
| E17/5 |
Left rear door exit and warning lamp |
2B |
| E17/5 |
Left rear door exit and warning lamp |
2D |
| E17/6 |
Right rear door exit and warning lamp |
2C |
| E17/6 |
Right rear door exit and warning lamp |
2E |
| E18/1 |
Load compartment lamp |
2E |
| E40 |
Tailgate ambient lamp |
31J |
| LIN B13 |
Roof LIN |
14C |
| M14/7 |
Tailgate central locking motor |
25J |
| M14/7s1 |
Tailgate rotary tumbler switch |
25J |
| N10 |
SAM control unit |
11D |
| N10/8 |
Rear control unit |
28H |
| N2/10 |
Supplemental restraint system control unit |
16J |
| N26/6 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
31B |
| N32/1 |
Driver seat control unit |
19G |
| N32/2 |
Front passenger seat control unit |
22G |
| N69/1 |
Left front door control unit |
5H |
| N69/2 |
Right front door control unit |
5H |
| N69/3 |
Left rear door control unit |
5A |
| N69/4 |
Right rear door control unit |
5A |
| N70 |
Overhead control panel control unit |
17B |
| N70e4 |
Left front interior lamp |
16A |
| N70e5 |
Right front interior lamp |
19A |
| N70s3 |
Interior lamp automatic function switch |
17A |
| N73 |
Electronic ignition switch control unit |
11J |
| S62/36 |
Tailgate control button |
30L |
| S62/36e1 |
Liftgate control button symbol illumination |
30L |
| U1037 |
Valid for vehicle model designation 166.0 |
21J |
| U1037 |
Valid for vehicle model designation 166.0 |
18J |
| U1037 |
Valid for vehicle model designation 166.0 |
1C |
| U1038 |
Valid for vehicle model designation 166.8 |
1A |
| U1038 |
Valid for vehicle model designation 166.8 |
27C |
| U1038 |
Valid for vehicle model designation 166.8 |
1E |
| U1038 |
Valid for vehicle model designation 166.8 |
15G |
| U1038 |
Valid for vehicle model designation 166.8 |
25G |
