Retrofit Bluetooth Module Bracket In Center Console - AZ82.70-P-0014GQ

MODEL 166.0##/8## 1# with CODE 386 (Convenience telephony)

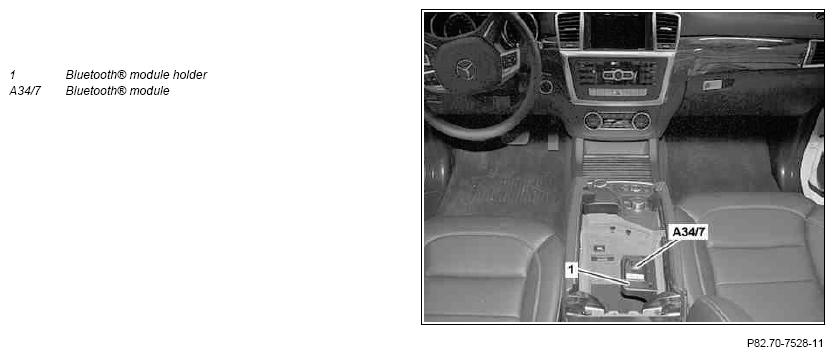

Fig 1: Identifying Retrofit Bluetooth Module Bracket In Center Console

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove cover with Bluetooth® module (A34/7)
		MODEL 166.0##/8## 1# with CODE 386 (Convenience telephony)	AR82.70-P-8919GQ
	Install
2	Retrofit Bluetooth® module holder (1)		AZ82.70-P-0014-02GQ
		Angle drill 0
3	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Bluetooth module holder retrofitted in center console as per AZ82.70-P-0014GQ " under field organization texts to design group 82.
	Check
4	Check Bluetooth® module (A34/7) for proper operation

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (refer to EPC)	Bluetooth® module holder scope of supply	1
