Removing And Installing Keyless Go Antenna - AR82.62-P-8000GQ

MODEL 166 with CODE 889 (Keyless Go)

MODEL 166.0

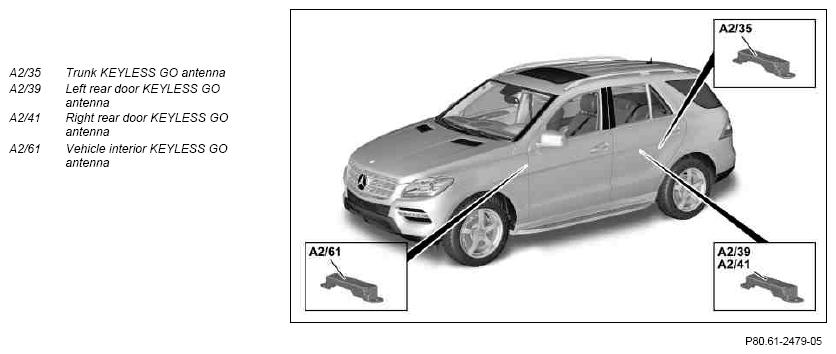

Fig 1: Identifying Keyless Go Antenna Removing/Installing Components

Courtesy of MERCEDES-BENZ USA

Model 166.8

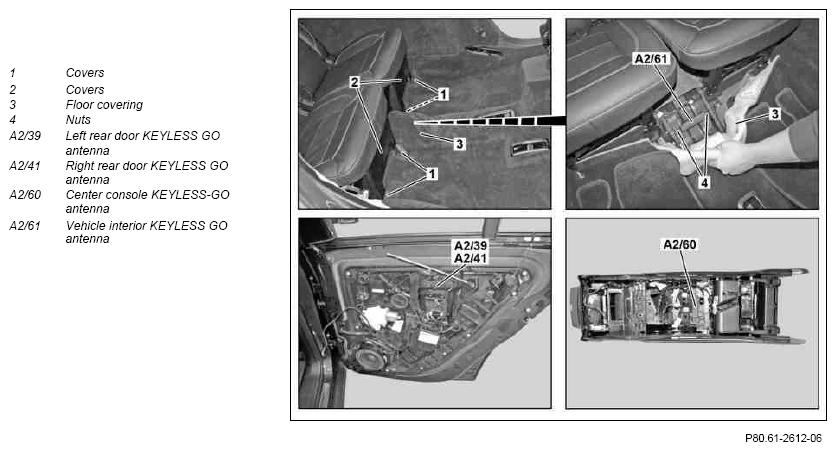

Fig 2: Identifying Keyless Go Antenna Removing/Installing Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only present on vehicles with CODE 889 (Keyless-Go).
2.1	Remove center console	MODEL 166.0 with CODE 889 (Keyless Go) When removing vehicle interior KEYLESS-GO antenna (A2/61)
			AR68.20-P-2000GQ
		MODEL 166.0 with CODE 301 (Ashtray package/smoker package) with CODE 889 (Keyless Go) The vehicle interior KEYLESS-GO antenna (A2/61) is located below the ashtray.
2.2	Remove center console	MODEL 166.8 with CODE 889 (Keyless Go) When removing center console KEYLESS-GO antenna (A2/60)
			AR68.20-P-2000GQ
		MODEL 166.8 with CODE 301 (Ashtray package/smoker package) with CODE 889 (Keyless Go) The center console KEYLESS-GO antenna (A2/60) is located below the ashtray.
2.3	Remove rear door lining	When removing left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41)
			AR72.12-P-1010GQ
2.4	Remove trunk floor	MODEL 166.0 with CODE 889 (Keyless Go) When removing trunk KEYLESS-GO antenna (A2/35) The trunk KEYLESS-GO antenna (A2/35) is located below the 60% rear seat backrest.
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
2.5	Fold 60% and 40% rear seat of 2nd seat row forward. To do so, pull on release lever for rear seat	MODEL 166.8 with CODE 889 (Keyless Go) When removing vehicle interior KEYLESS-GO antenna (A2/61) MODEL 166.8 with CODE 843 (Electric EASY-ENTRY) with CODE 889 (Keyless Go) Operate switch for folding backrest.
2.6	Remove covers (1, 2) and lift floor covering (3)	MODEL 166.8 with CODE 889 (Keyless Go) When removing vehicle interior KEYLESS-GO antenna (A2/61) Ensure that covers (1, 2) are seated correctly.
3	Disconnect corresponding electrical connector
4	Unclip corresponding KEYLESS-GO antenna (A2/35, A2/39, A2/41, A2/60 or A2/61)	MODEL 166.8 with CODE 889 (Keyless Go) Unscrew nuts (4) and remove vehicle interior KEYLESS-GO antenna (A2/61).
5	Install in the reverse order
