Remove/Install Signaling Lights Actuation Module - AR82.10-P-4655GQ
MODEL 166 with CODE 615 (Bi-xenon headl. (LHD veh.) w. corn. function)
MODEL 166 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 166 with CODE 622 (Intelligent Light System (right-hand traffic))
Shown on model 166.0, left side

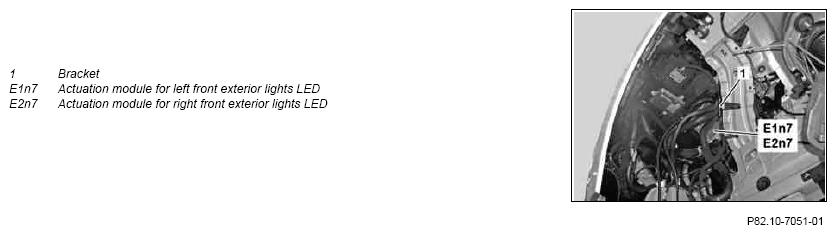

Fig 1: Identifying Signaling Lights Actuation Module Remove/Install Components - Shown On Model 166.0
Shown on model 166.8, left side

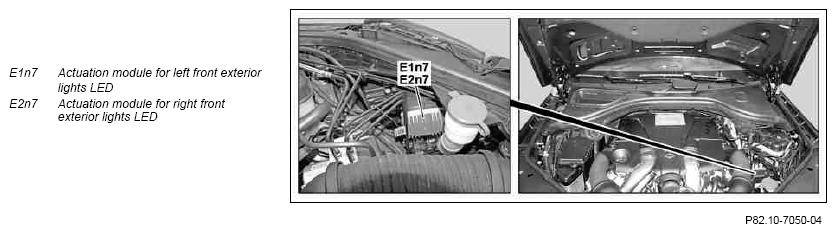

Fig 2: Identifying Signaling Lights Actuation Module Remove/Install Components - Shown On Model 166.8
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) | When replacing left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Remove left or right front section of fender liner in front fender | MODEL 166.0 | |
| AR88.10-P-1310GQ | |||
| 4 | Detach bracket (1) at body, loosen cable tie and push electrical lines to one side | MODEL 166.0 When removing left front actuation module, LED exterior lighting (E1n7). |
|
| 5 | Remove screws/bolts on left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) and remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) from lamp unit | ||
| 6 | Disconnect electrical connector on left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) | ||
| 7 | Install in the reverse order |
