Remove/Install Panic Alarm System Control Unit (GAS) - AR82.25-P-1206GQS
MODEL 166 with CODE Z04 (Light armoring)
MODEL 166 with CODE Z05 (B5 armoring on special protection version)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition, detach transmitter key from electronic ignition switch control unit | ||
| 2 | Fold down rear bench seat | ||
| 3 | Fold back left floor covering | AR68.20-P-2050GQ | |

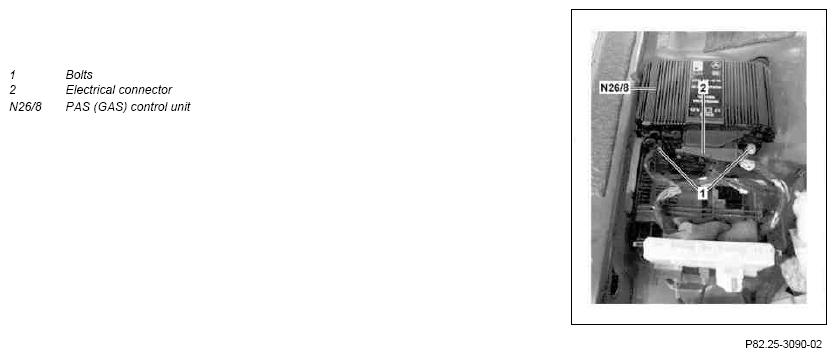

| 4 | Expose PAS [GAS] control unit (N26/8) | ||
| 5 | Disconnect electrical connection (2) | ||
| 6 | Unscrew PAS [GAS] control unit screws/bolts (N26/8) and remove PAS [GAS] control unit | ||
| 7 | Install in the reverse order |
