Remove/Install Loudspeaker In Dashboard - AR82.62-P-7833GQ

MODEL 166

Shown on vehicle with code (220) Parktronic system (PTS)

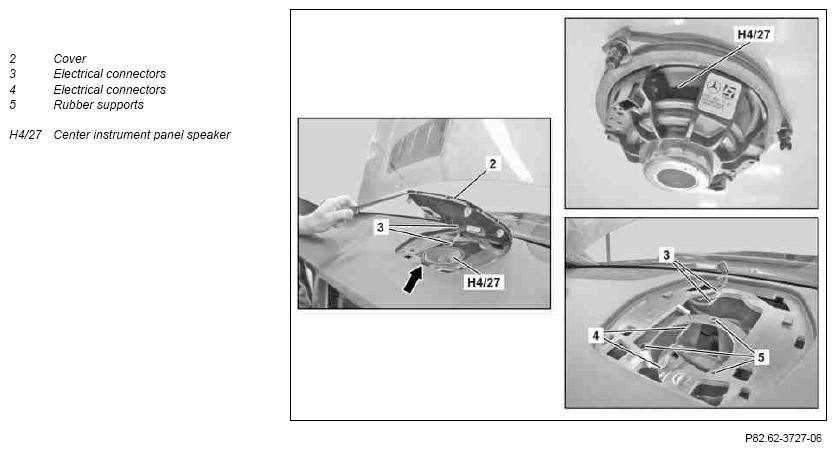

Fig 1: Identifying Loudspeaker In Dashboard Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from electronic ignition lock control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Carefully unclip cover (2) at rear edge (arrow) and pull upward out of installation opening	Insert cover (2) with both front lugs first, then engage at rear at clamp.
			Figure
3	Disconnect electrical connectors (3) at cover (2)
4	Pull center instrument panel speaker (H4/27) upward out of instrument panel	Ensure that rubber supports (5) are seated correctly in instrument panel.
			Figure
5	Disconnect electrical connectors (4) at center instrument panel speaker (H4/27)
6	Remove center instrument panel speaker (H4/27)
7	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
