Remove/Install DVD Player - AR82.60-P-7505GQ

MODEL 166 with CODE (864) Rear entertainment system

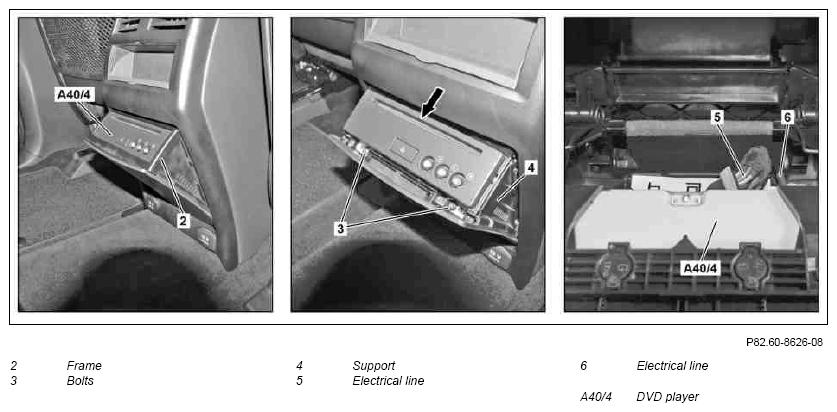

Fig 1: Identifying DVD Player Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of rear entertainment system in STAR DIAGNOSIS	When replacing the DVD player (A40/4) Transfer buffered basic data to rear entertainment system.	AD00.00-P-2000-04A
2	Open DVD player (A40/4)
3	Unclip frame (2) from DVD player (A40/4)
4	Remove bolt (3)
5	Unclip mount (4) of DVD player (A40/4) from center console	To do so, push mount (4) and DVD player (A40/4) beyond the mounting point (arrow).
6	Pull DVD player (A40/4) far enough out of the mount (4) until the electrical lines (5, 6) are accessible
7	Detach electrical line (5) from DVD player (A40/4)
8	Unclip and detach electrical line (6) from DVD player (A40/4)
9	Remove DVD player (A40/4)
10	Install in the reverse order
