Remove/Install Bass Module Speaker - AR82.62-P-7839GQ

MODEL 166 with CODE 810 (Sound system)

MODEL 166 with CODE 811 (Advanced sound system)

Shown on MODEL 166.0 on left side of vehicle

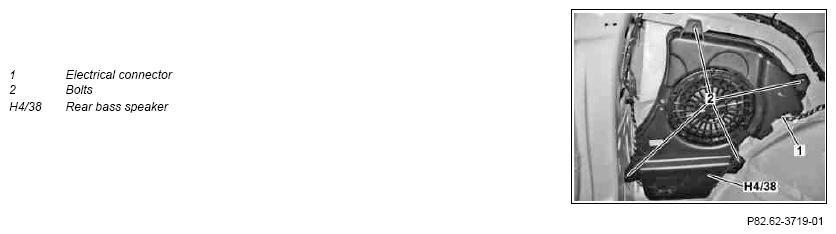

Fig 1: Identifying Bass Module Speaker Remove/Install Components - Shown On Model 166.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 166.8 on right side of vehicle

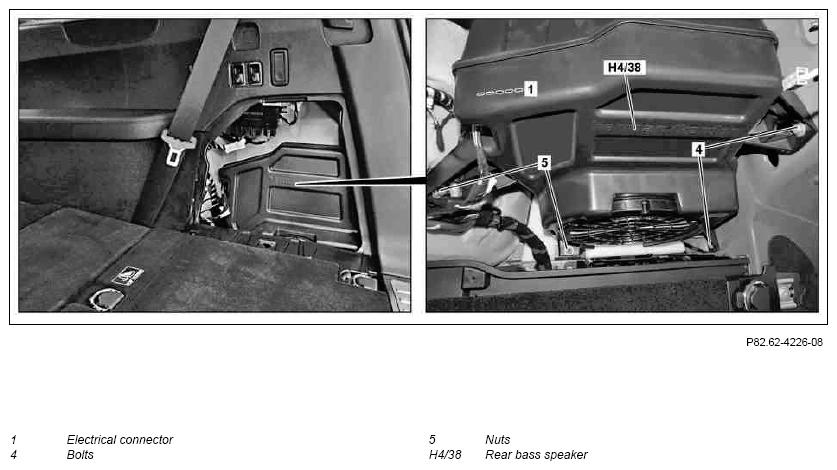

Fig 2: Identifying Bass Module Speaker Remove/Install Components - Shown On Model 166.8

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove side paneling in right side of trunk	MODEL 166.8 with CODE 810 (Sound system) MODEL 166.8 with CODE 811 (Advanced sound system)
			AR68.30-P-4800GQX
1.2	Remove side paneling in left side of luggage compartment	MODEL 166.0 with CODE 810 (Sound system) MODEL 166.0 with CODE 811 (Advanced sound system)
			AR68.30-P-4800GQ
2	Disconnect electrical connector (1)
3.1	Remove bolts (2)	MODEL 166.0 with CODE 810 (Sound system) MODEL 166.0 with CODE 811 (Advanced sound system)
3.2	Unscrew nuts (3) and remove screws/bolts (4)	MODEL 166.8 with CODE 810 (Sound system) MODEL 166.8 with CODE 811 (Advanced sound system)
4	Remove rear bass speaker (H4/38)
5	Install in the reverse order
