Remove/Install Amplifier For Sound System - AR82.62-P-7723GQA
MODEL 166 with CODE 810 (Sound system) without CODE 811 (Advanced sound system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Transmit basic data of sound system amplifier control unit (12) to diagnostic system | When replacing the sound system amplifier control unit (12). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove left front seat | AR91.10-P-1000GQ | |
| 3 | Remove lower molding from left B-pillar | AR68.30-P-4700GQ | |
| 4 | Place rear floor covering to one side | ||
| 5 | Place front floor covering to one side | ||

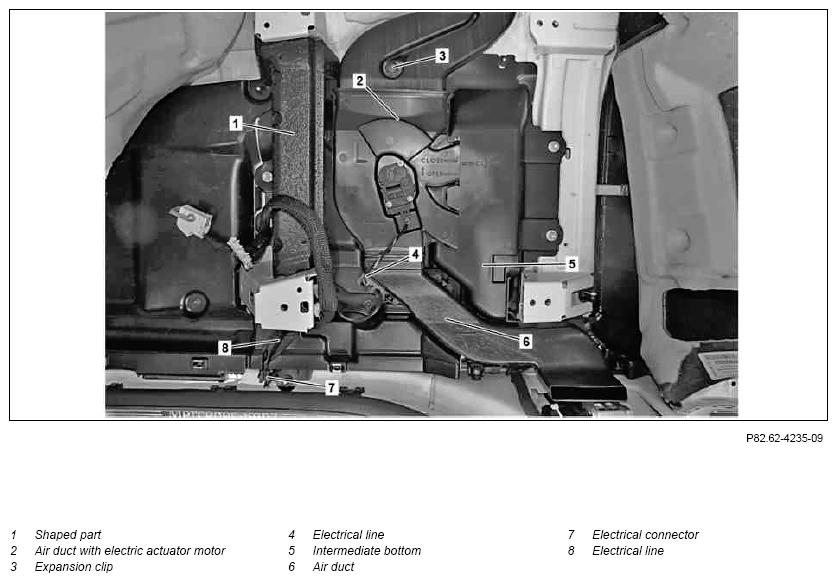

| 6 | Unhook electrical line (4) from air duct (6) | ||
| 7 | Remove air duct (6) | ||
| 8 | Remove expansion clip (3) | Fig 4 | |
| 9 | Remove air duct with electric actuator motor (2) and place to one side with connected electrical line (4) | ||
| 10 | Remove shaped part (1) | ||
| 11 | Unhook electrical connector (7) and electrical line (8) from intermediate bottom (5) | ||

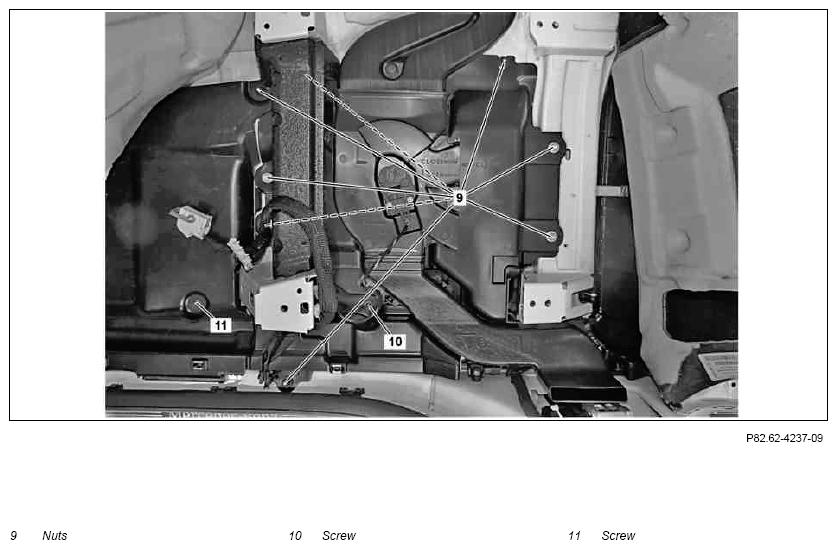

| 12 | Unscrew nuts (9) from intermediate bottom (5) | ||
| 13 | Unscrew bolts (10, 11) | ||
| 14 | Remove intermediate bottom (5) | ||

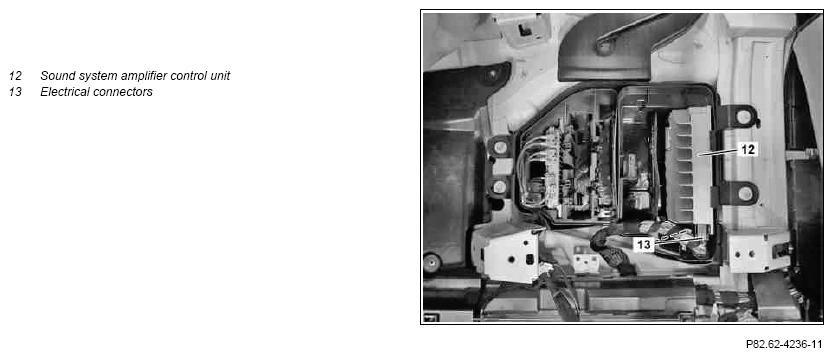

| 15 | Unclip sound system amplifier control unit (12) and remove from bracket | ||
| 16 | Disconnect electrical connections (13) | ||
| 17 | Install in the reverse order | ||
| 18 | Transfer basic data from diagnostic system to sound system amplifier control unit (12) | When replacing the sound system amplifier control unit (12). |
