Overview of interior illumination (IBL) system components - GF82.20-P-9997GR
MODEL 166 up to model year 2016

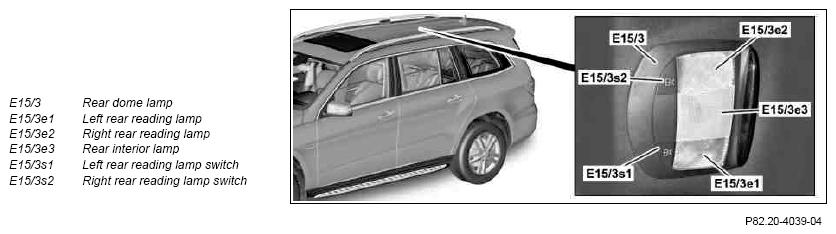

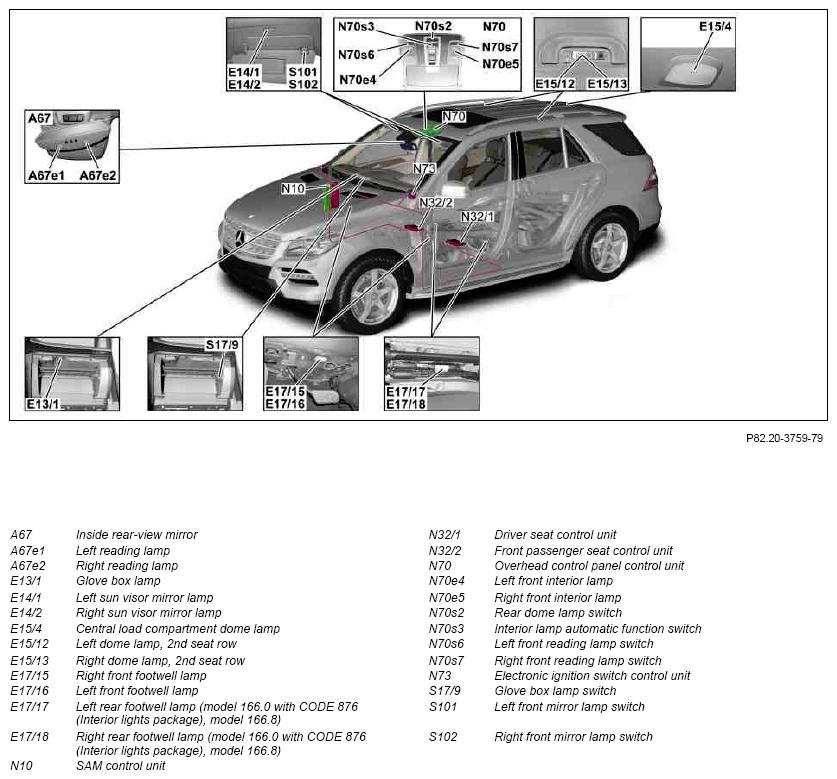

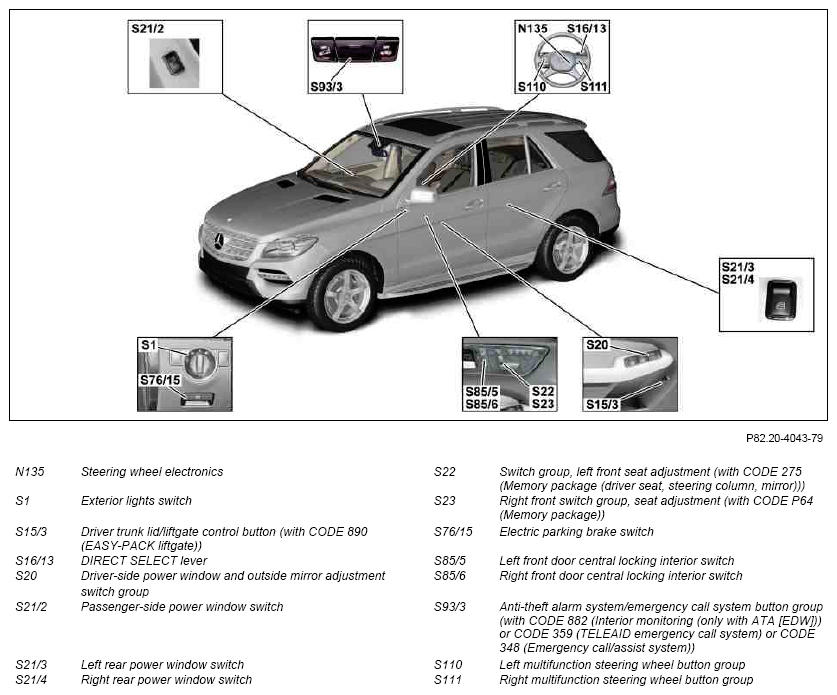

Manual interior lights control, shown on model 166.0 with CODE 275 (Memory package (driver seat, steering column, mirrors))

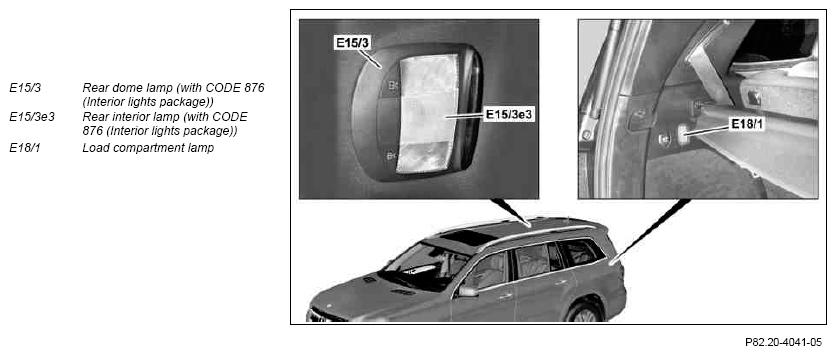

Manual interior lights control, additional components, model 166.8 with CODE 876 (Interior lights package)

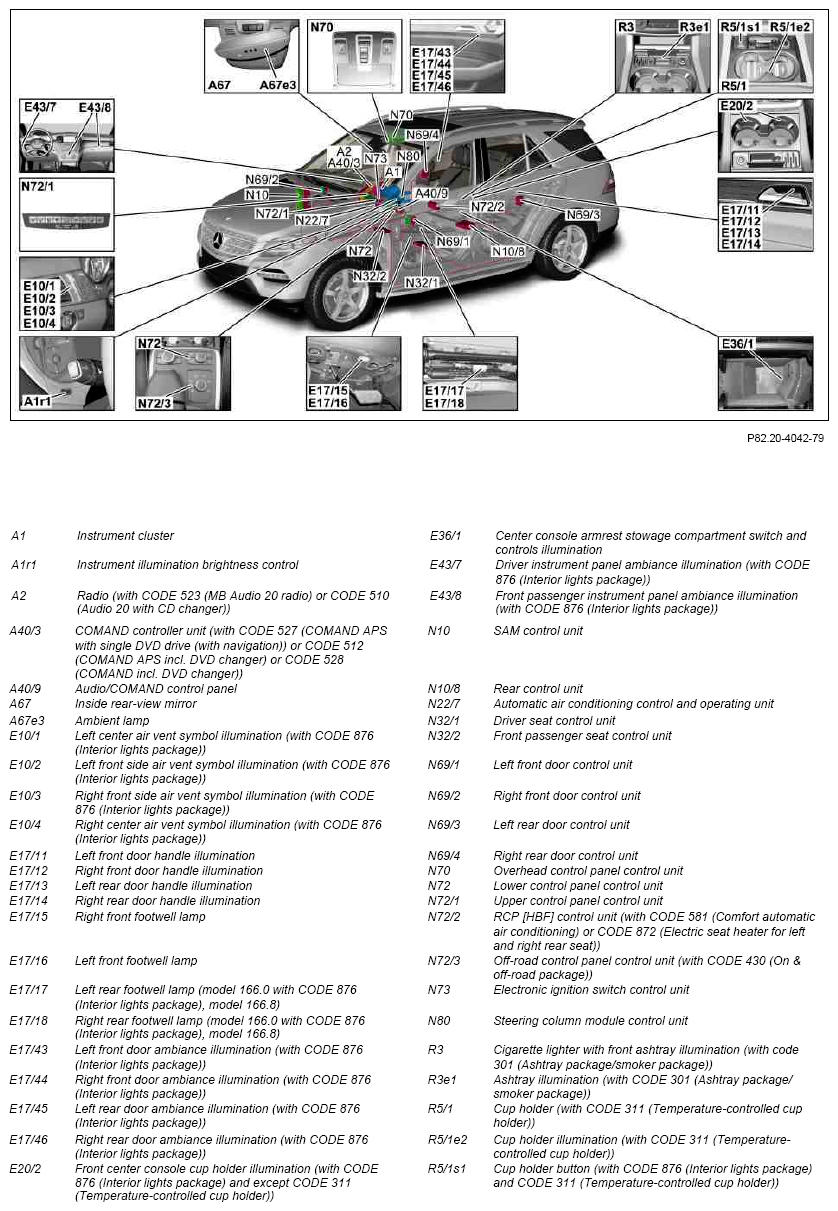

Automatic interior lights control, shown on model 166.0 with CODE 275 (Memory package (driver seat, steering column, mirrors))

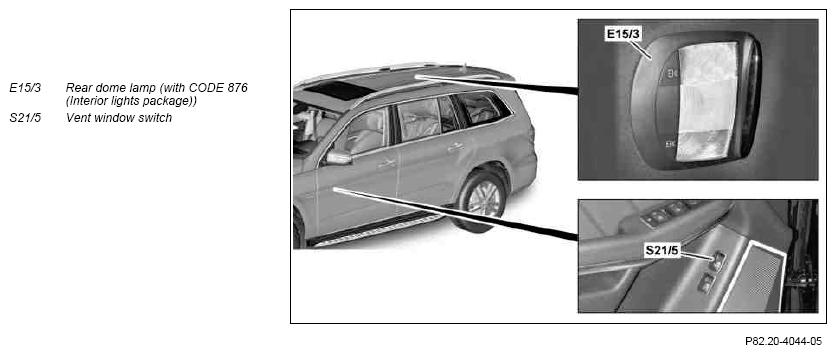

Automatic interior lights control, additional components, model 166.8

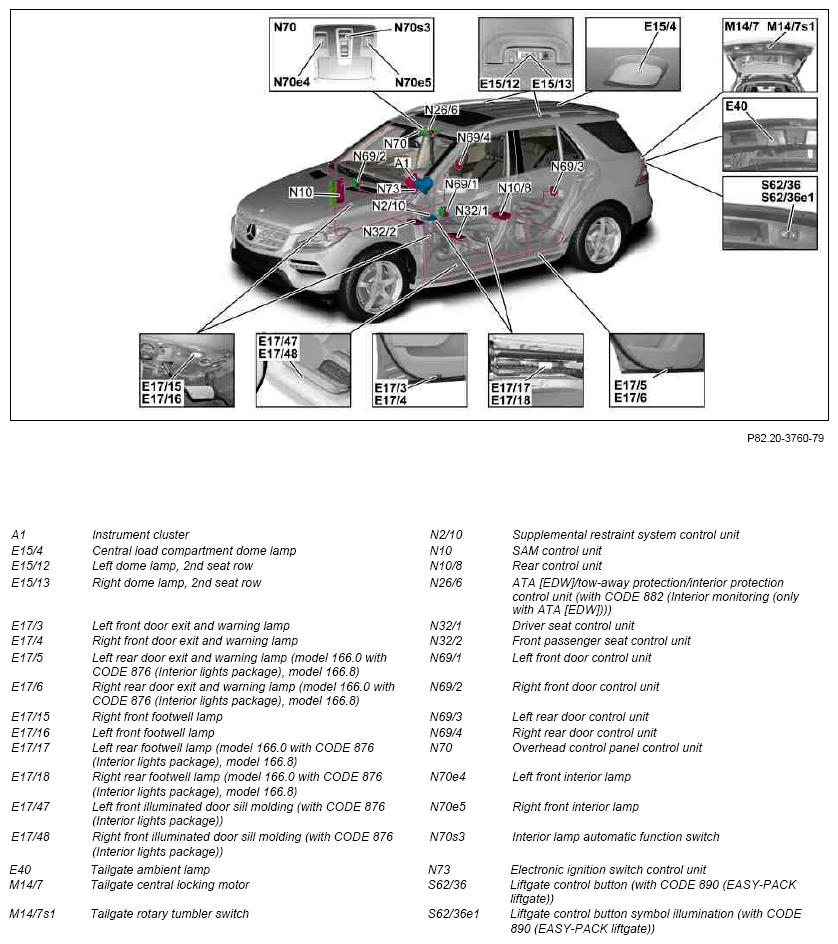

Symbol and ambiance illumination, shown on model 166.0 with CODE 275 (Memory package (driver seat, steering column, mirrors))
Symbol and ambiance illumination, shown on model 166.0
Symbol and ambiance illumination, additional components, model 166.8
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for the radio | MODEL 166 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 166 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122GRA | |
| Component description for COMAND controller unit | MODEL 166 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 166 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 166 up to model year 2016 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| ATA/tow-away protection/interior protection control unit, component description | MODEL 166 up to model year 2016 with CODE 882 (Interior monitoring (with ATA [EDW] only)) N26/6 |
GF80.50-P-4131GR | |
| Component description for driver seat control unit | MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 |
GF91.29-P-5231GR | |
| MODEL 166 up to model year 2016 without CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 |
GF91.29-P-5231GRA | ||
| Component description for front passenger seat control unit | MODEL 166 up to model year 2016 with CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GR | |
| MODEL 166 up to model year 2016 without CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GRA | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GR | |
| Lower control panel control unit, component description | N72 | GF54.21-P-6060GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Rear control panel control unit, component description | MODEL 166 up to model year 2016 with CODE 581 (Comfort automatic air conditioning) MODEL 166 up to model year 2016 with CODE 872 (Electrically heated left and right rear seats) N72/2 |
GF83.40-P-3020GR | |
| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) N72/3 |
GF54.21-P-3520VGC | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998GR |
