Digital TV tuner, component description - GF82.60-P-3118GR
MODEL 166.0 as of model year 2013 up to model year 2016 with CODE 865 (TV tuner)
MODEL 166.8 up to model year 2016 with CODE 865 (TV tuner)
Illustrated on model 166.0

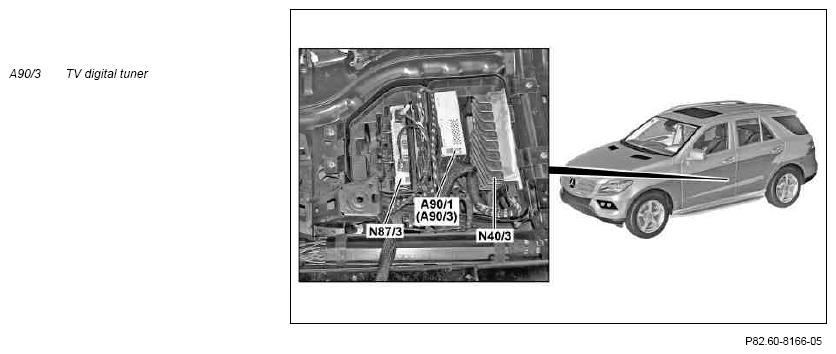

Location
The digital TV tuner is arranged beneath the left front seat.
Task
- Receive signals
- Demodulating and decoding signals
- Transmitting signals
Receive signals
- Direct lines
- Telematics CAN (CAN A) (with CODE 864 (Rear Entertainment System))
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via circuit 31 and circuit 30 via one direct line each
- Electronic wake-up for MOST via a direct line
- FM 2, DAB and TV 1 antenna amplifier (A2/19) over a coaxial cable, with CODE 537 (Digital radio) over the TV 1 antenna amplifier (A94/1)
- TV 2 antenna amplifier (A94/2) over a coaxial cable
- TV 3 antenna amplifier (A94/3) via a coaxial cable
Telematics CAN (CAN A) (with CODE 864 (Rear Entertainment System))
The TV digital tuner is a telematics CAN subscriber and it communicates with the following control units:
- Left rear display (A40/5)
- Right rear display (A40/6)
- DVD player (A40/4)
MOST
The digital TV tuner is a participant of the MOST, via which it communicates with the COMAND controller unit (A40/3).
Demodulating and decoding signals
The TV signals that are received via the antenna amplifier are evaluated internally and separated into video and audio signals.
Transmitting signals
Signals are sent through the following lines:
- Direct line
- Telematics (with CODE 864 (Rear entertainment system))
- Media Oriented System Transport (MOST)
Direct line
- Supply voltage to the following antenna amplifiers:
- FM 2, DAB and TV 1 antenna amplifier
- TV 2 antenna amplifier
- TV 3 antenna amplifier
- Video signals via Y/C lines to COMAND controller unit
- Video signals over Y/C lines to the DVD player (with CODE 864 (Rear entertainment system))
- Audio signals over low frequency (LF) lines to the DVD player (with CODE 864 (Rear entertainment system))
Telematics (with CODE 864 (Rear entertainment system))
The TV digital tuner is a telematics CAN subscriber and it communicates with the following control units:
- Left rear display (with CODE 864 (Rear Entertainment System))
- Right rear display (with CODE 864 (Rear Entertainment System))
- DVD player
Media Oriented System Transport (MOST)
The TV digital tuner is a subscriber of the MOST, via which it communicates with the COMAND controller unit. The audio signals are transmitted to the COMAND controller unit or the sound system amplifier control unit (N40/3) (with CODE 810 (Sound system) or CODE 811 (Advanced sound system)).
Body
With CODE 498 (Japan version) the digital TV tuner is delivered with a "B-CAS card". The "B-CAS card" is designed as a subscriber identification module (SIM) card and inserted in the SIM card reader. The SIM card reader does not have a cover.
| Wiring diagram for TV tuner | A90/3 | PE82.60-P-2220-97NAA |
