| A0 |
Color code key |
104L |
| Code 301 |
Ashtray in place of stowage compartment with flap and power outlet |
16H |
| Code 460 |
Canada version |
54G |
| Code 460 |
Canada version |
59G |
| Code 494 |
USA version |
54G |
| Code 494 |
USA version |
59G |
| Code 640 |
High Performance LED |
61G |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
61H |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
61H |
| Code 843 |
Electric EASY-ENTRY |
21G |
| Code 843 |
Electric EASY-ENTRY |
24J |
| Code 876 |
Interior lights package |
36J |
| Code 876 |
Interior lights package |
40J |
| Code 876 |
Interior lights package |
7G |

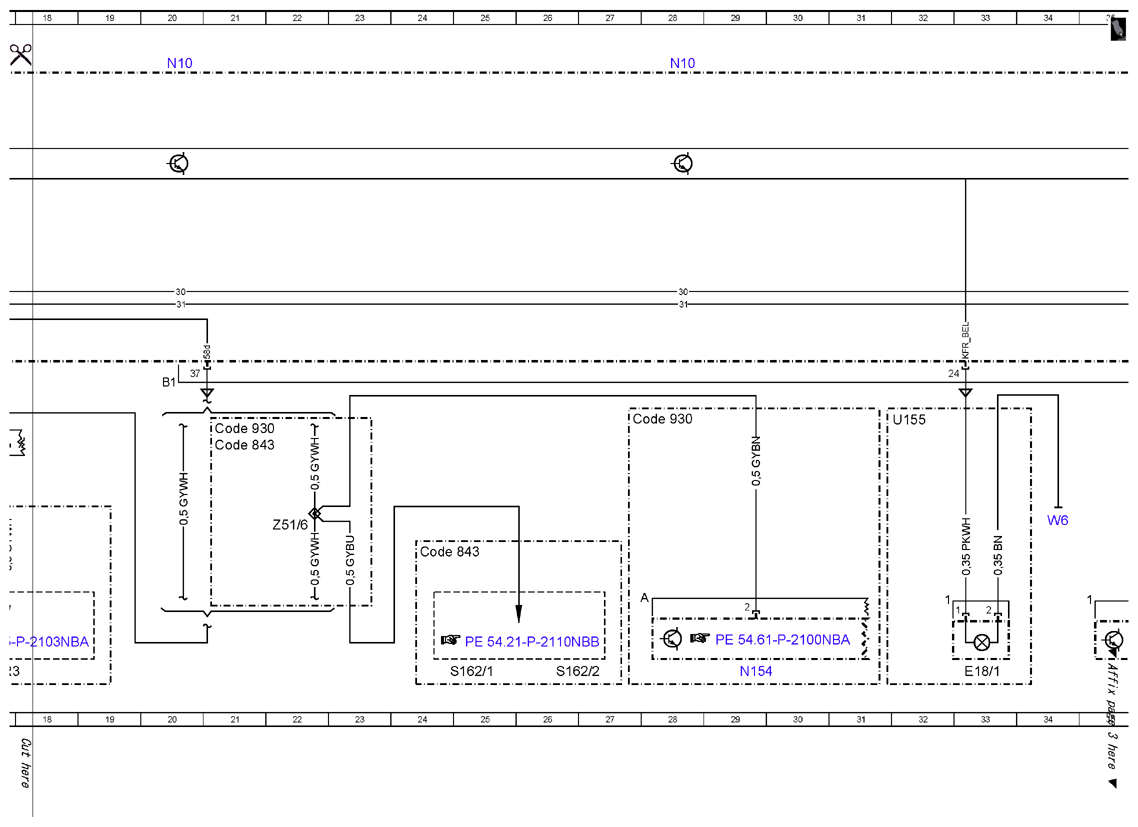

| Code 930 |
Tachograph pre-installation |
27G |
| Code 930 |
Tachograph pre-installation |
21G |

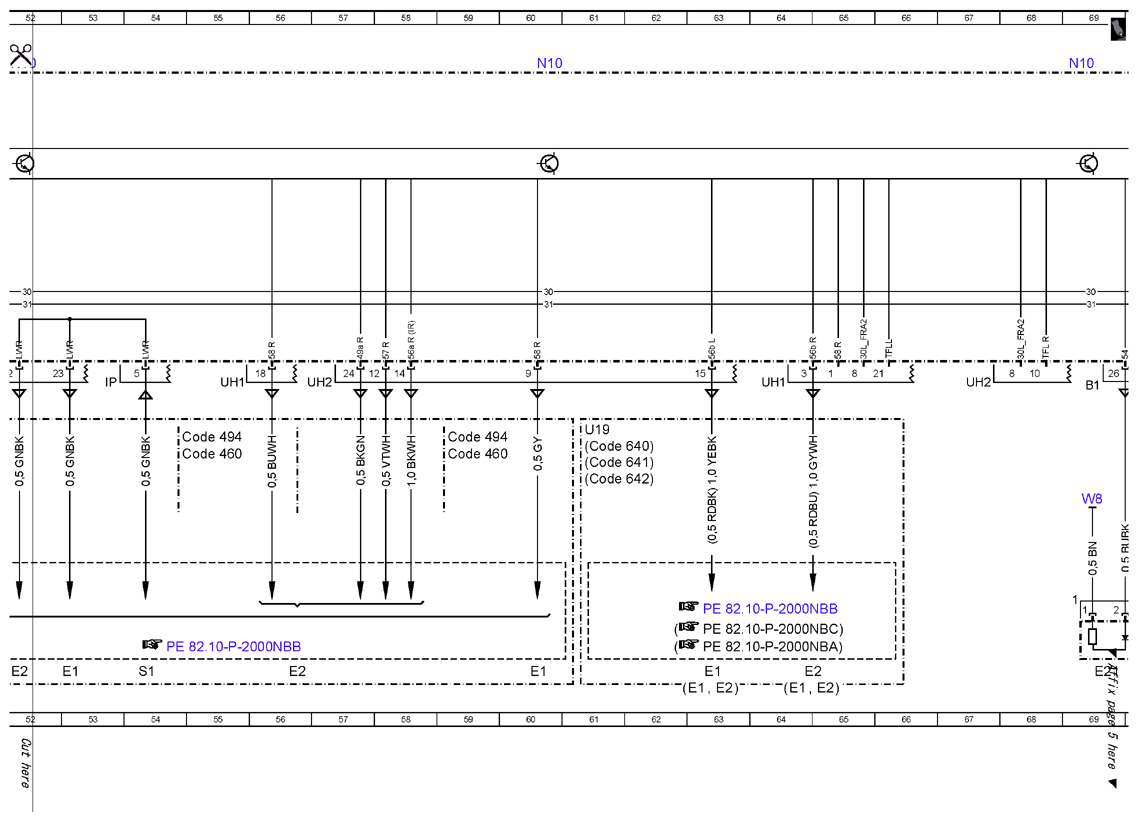

| E1 |
Left front lamp unit |
50L |
| E1 |
Left front lamp unit |
53L |
| E1 |
Left front lamp unit |
63L |
| E1 |
Left front lamp unit |
60L |
| E1 |
Left front lamp unit |
63L |
| E1 |
Left front lamp unit |
64L |

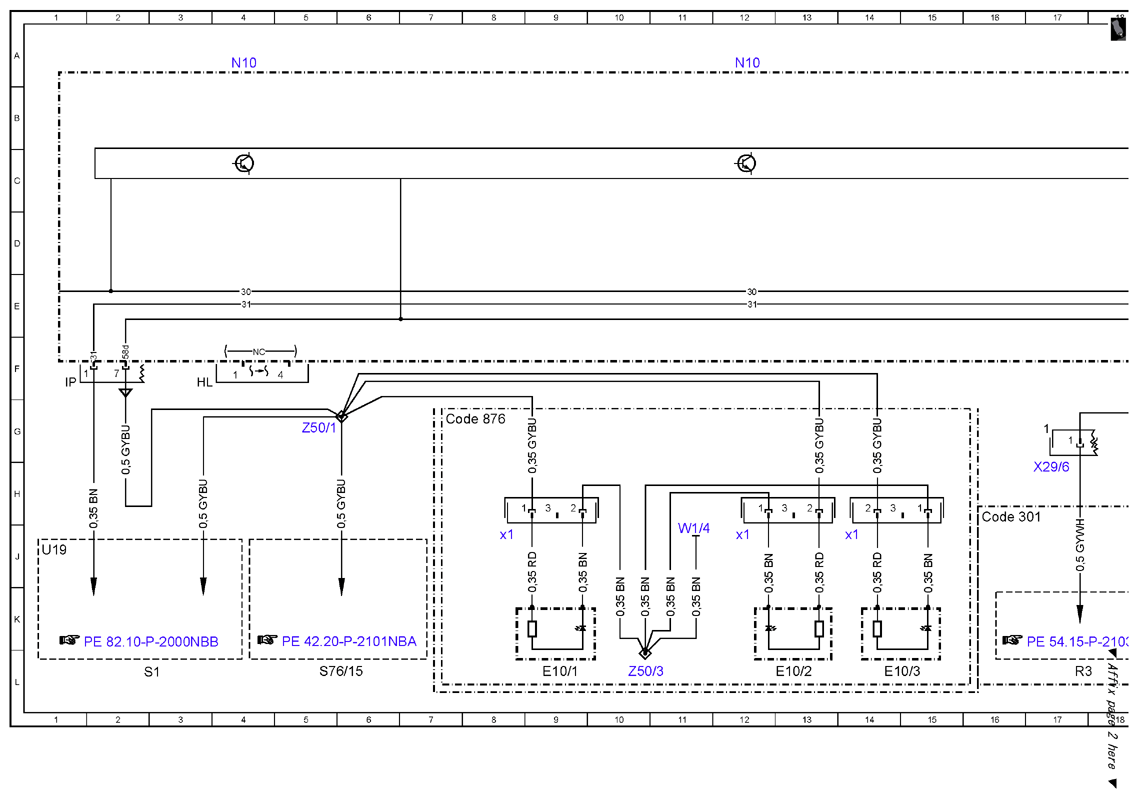

| E10/1 |
Left center air outlet symbol illumination |
9L |
| E10/1x1 |
Center vent symbol illumination electrical connector |
8J |
| E10/2 |
Left front side air outlet symbol illumination |
13L |
| E10/2x1 |
Left front side vent symbol illumination electrical connector |
12J |
| E10/3 |
Right front side air outlet symbol illumination |
14L |
| E10/3x1 |
Right front side vent symbol illumination electrical connector |
14J |
| E17/15 |
Right front footwell lamp |
43L |
| E17/16 |
Left front footwell lamp |
44L |
| E18/1 |
Load compartment lamp |
33L |

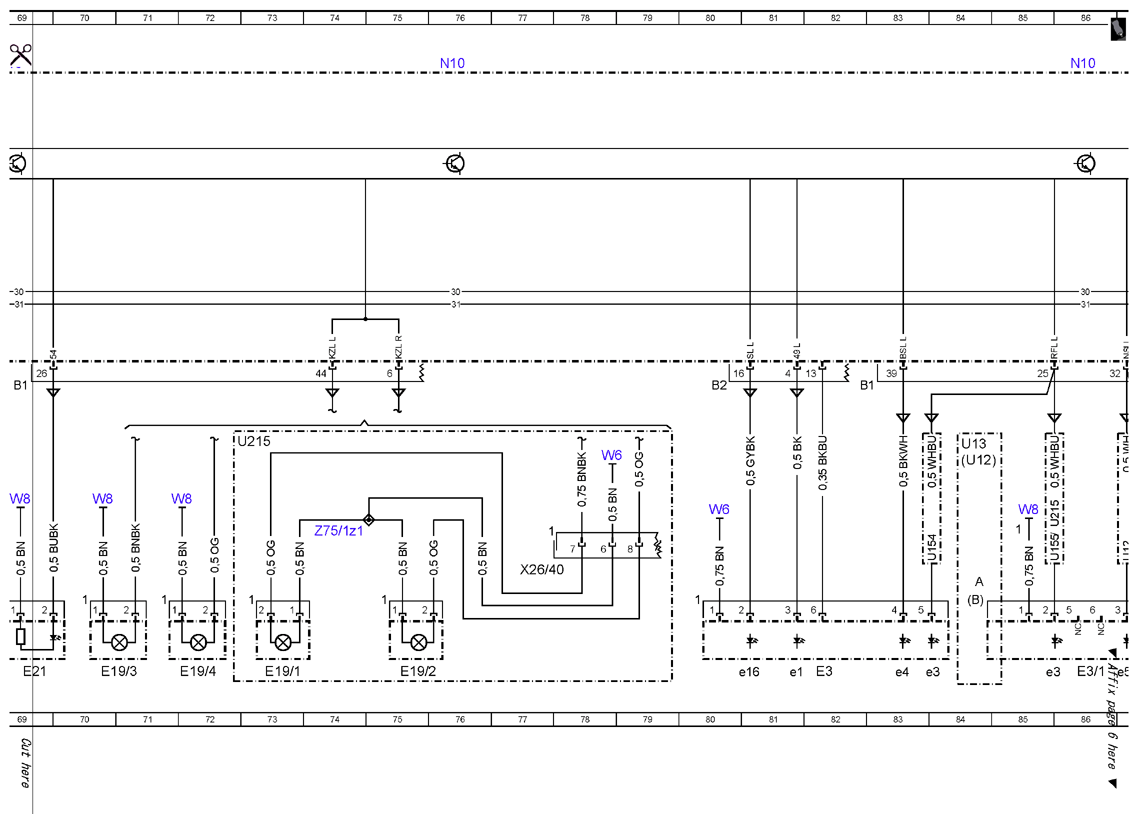

| E19/1 |
Left license plate lamp |
73L |
| E19/2 |
Right license plate lamp |
75L |
| E19/3 |
Left liftgate license plate lamp |
70L |
| E19/4 |
Right liftgate license plate lamp |
72L |
| E2 |
Right front lamp unit |
52L |
| E2 |
Right front lamp unit |
56L |
| E2 |
Right front lamp unit |
63L |
| E2 |
Right front lamp unit |
64L |
| E2 |
Right front lamp unit |
65L |
| E21 |
Center stop lamp |
69L |
| E3 |
Left rear lamp unit |
82L |
| E3/1 |
Inner left rear lamp unit |
86L |
| E3/1e2 |
Left inside taillight |
88L |
| E3/1e3 |
Left backup lamp |
85L |
| E3/1e5 |
Left rear fog lamp |
87L |
| E3e1 |
Left rear turn signal lamp |
81L |
| E3e16 |
Outer left taillight |
81L |
| E3e3 |
|
83L |
| E3e4 |
Left stop lamp |
83L |

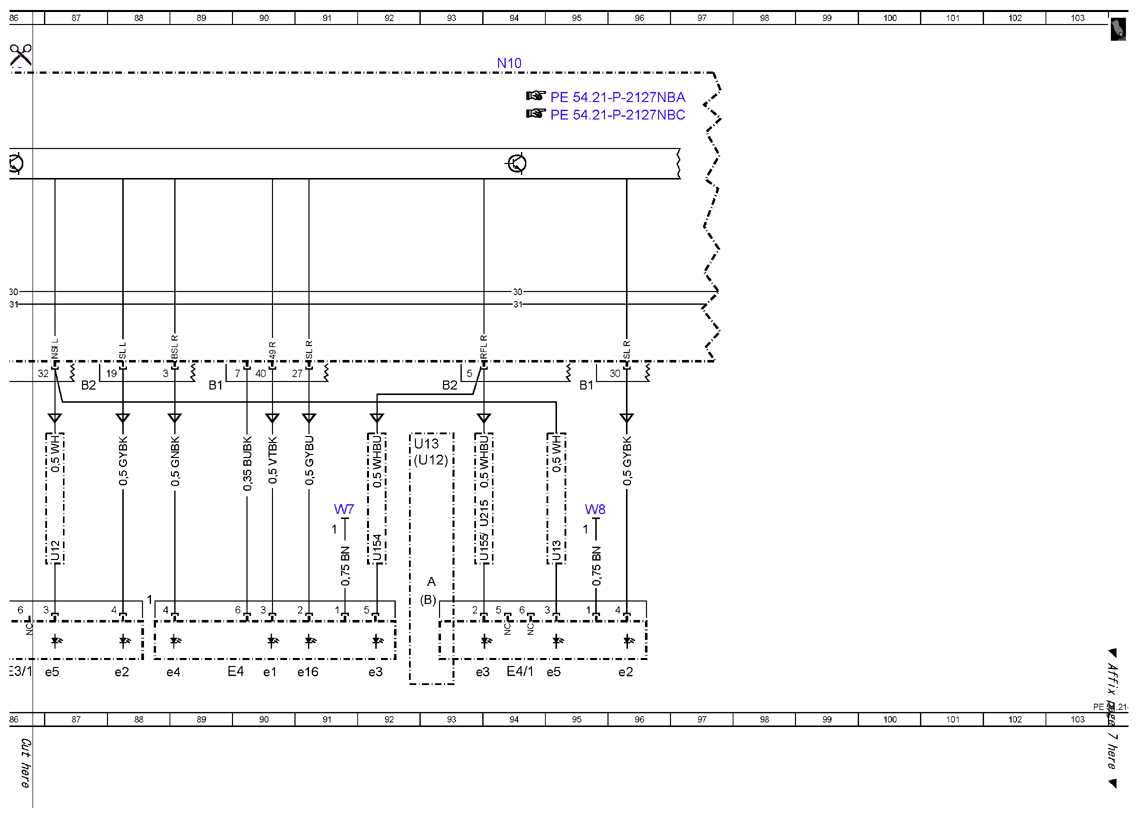

| E4 |
Right rear lamp unit |
89L |
| E4/1 |
Inner right rear lamp unit |
94L |
| E4/1e2 |
Right inside taillight |
96L |
| E4/1e3 |
Right backup lamp |
93L |
| E4/1e5 |
Right rear fog lamp |
95L |
| E4e1 |
Right rear turn signal lamp |
90L |
| E4e16 |
Outer right taillight |
91L |
| E4e3 |
|
92L |
| E4e4 |
Right stop lamp |
88L |
| F58 |
Engine compartment fuse and relay module |
47L |
| N10 |
SAM control unit |
4A |
| N10 |
SAM control unit |
12A |
| N10 |
SAM control unit |
28A |
| N10 |
SAM control unit |
20A |
| N10 |
SAM control unit |
37A |
| N10 |
SAM control unit |
52A |
| N10 |
SAM control unit |
60A |
| N10 |
SAM control unit |
69A |
| N10 |
SAM control unit |
76A |
| N10 |
SAM control unit |
44A |
| N10 |
SAM control unit |
94A |
| N10 |
SAM control unit |
86A |
| N154 |
Digital tachograph control unit |
29L |

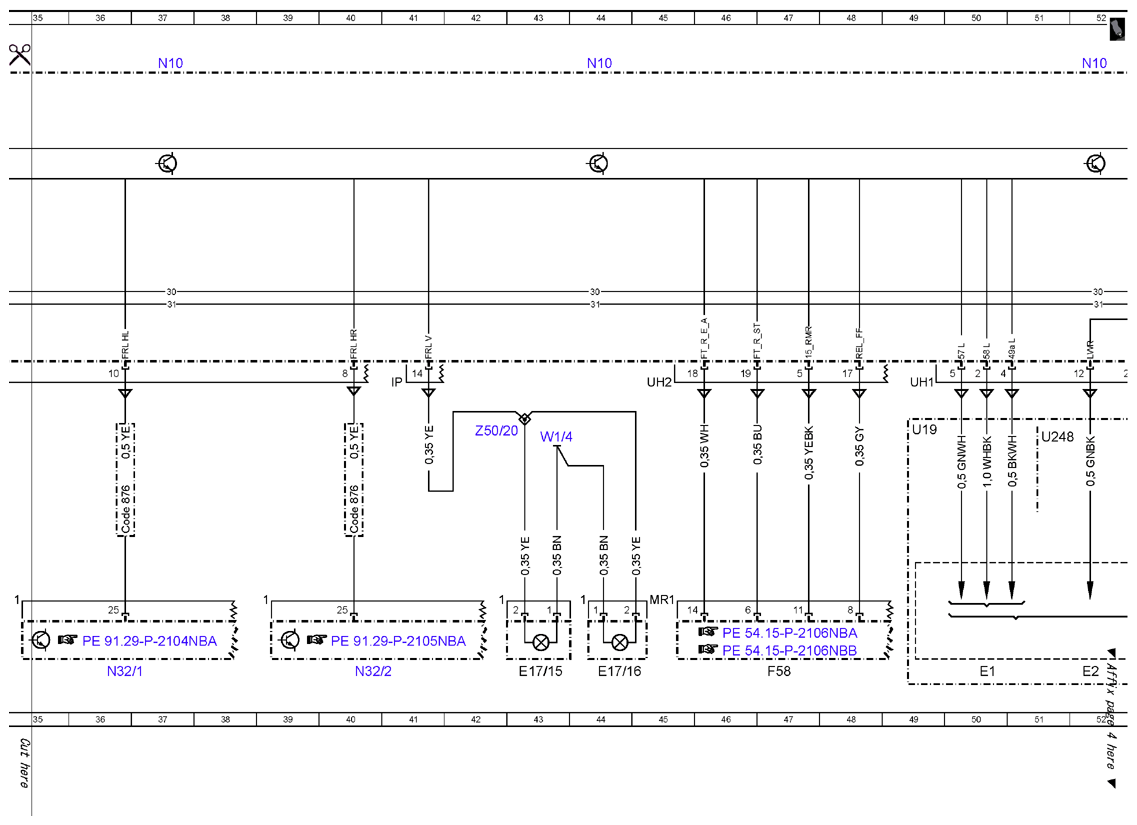

| N32/1 |
Driver seat control unit |
36L |
| N32/2 |
Front passenger seat control unit |
40L |
| R3 |
Front cigarette lighter with ashtray illumination |
17L |
| S1 |
Exterior lights switch |
2L |
| S1 |
Exterior lights switch |
54L |
| S162/1 |
Left 2nd seat row folding backrest switch |
25L |
| S162/2 |
Right 2nd seat row folding backrest switch |
26L |
| S76/15 |
Electric parking brake switch |
5L |
| U12 |
Valid for left-hand drive vehicles |
87J |
| U12 |
Valid for left-hand drive vehicles |
84H |
| U12 |
Valid for left-hand drive vehicles |
92H |
| U13 |
Valid for right-hand drive vehicles |
95J |
| U13 |
Valid for right-hand drive vehicles |
84G |
| U13 |
Valid for right-hand drive vehicles |
92G |
| U154 |
Valid for 166.0 |
84J |
| U154 |
Valid for 166.0 |
92J |
| U155 |
Valid for 166.8 |
32G |
| U155 |
Valid for 166.8 |
86J |
| U155 |
Valid for 166.8 |
94J |
| U19 |
Valid for standard equipment |
1J |
| U19 |
Valid for standard equipment |
61G |
| U19 |
Valid for standard equipment |
49G |
| U215 |
Valid for model series 292 |
72G |
| U215 |
Valid for model series 292 |
86J |
| U215 |
Valid for model series 292 |
94J |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
51G |
| W1/4 |
Cockpit ground point |
43G |
| W1/4 |
Cockpit ground point |
11J |
| W6 |
Inner left D-pillar ground point |
78G |
| W6 |
Inner left D-pillar ground point |
34J |
| W6 |
Inner left D-pillar ground point |
80H |
| W7 |
Right rear center section ground point |
91H |
| W8 |
Liftgate ground point |
69H |
| W8 |
Liftgate ground point |
70H |
| W8 |
Liftgate ground point |
71H |
| W8 |
Liftgate ground point |
95H |
| W8 |
Liftgate ground point |
85H |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
77J |
| X29/6 |
Center console electrical connector |
17H |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
5G |
| Z50/20 |
Cockpit connector sleeve, footwell lighting |
42G |
| Z50/3 |
Circuit 31 instrument panel connector sleeve |
10L |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
22J |
| Z75/1z1 |
License plate lamp connector sleeve |
74J |
