| A0 |
Color code key |
80L |
| B14 |
Outside temperature sensor |
61L |

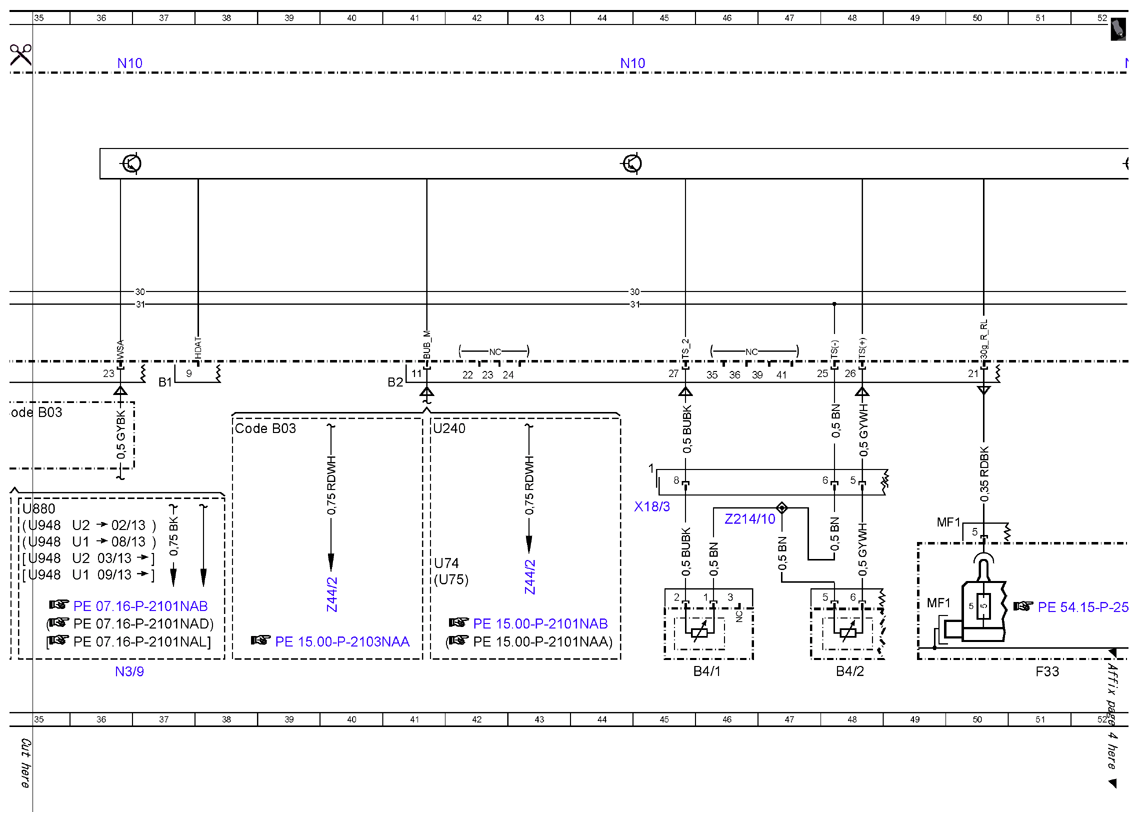

| B4/1 |
Fuel tank fuel level indicator fill level sensor, left |
46L |
| B4/2 |
Fuel tank fuel level indicator fill level sensor, right |
48L |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
66G |
| Code 580 |
Automatic air conditioning |
59G |
| Code 581 |
Comfort automatic air conditioning |
59G |
| Code 846 |
Running boards |
16G |
| Code B03 |
ECO start/stop function |
34G |
| Code B03 |
ECO start/stop function |
1J |
| Code B03 |
ECO start/stop function |
28G |
| Code B03 |
ECO start/stop function |
38G |
| Code B03 |
ECO start/stop function |
66G |

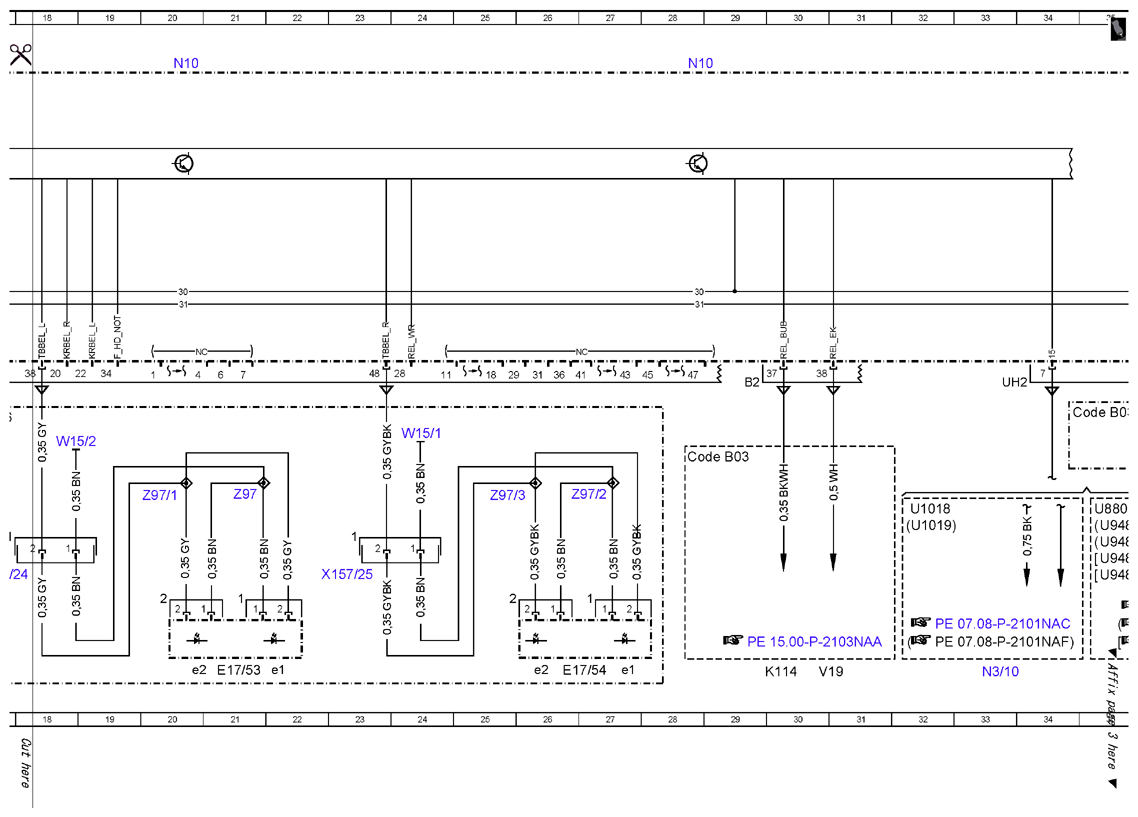

| E17/53 |
Left running board courtesy light |
21L |
| E17/53e1 |
Left rear running board courtesy light |
22L |
| E17/53e2 |
Left front running board courtesy light |
20L |
| E17/54 |
Right running board courtesy light |
26L |
| E17/54e1 |
Right rear running board courtesy light |
27L |
| E17/54e2 |
Right front running board courtesy light |
26L |
| F33 |
Battery compartment prefuse box |
10L |
| F33 |
Battery compartment prefuse box |
51L |
| F33MF1 |
Multiple fuse 1 |
49K |
| F4 |
Rear fuse box |
14L |
| K114 |
ECO start/stop function additional battery relay |
30L |
| M5/2 |
Headlamp cleaning system pump |
58L |

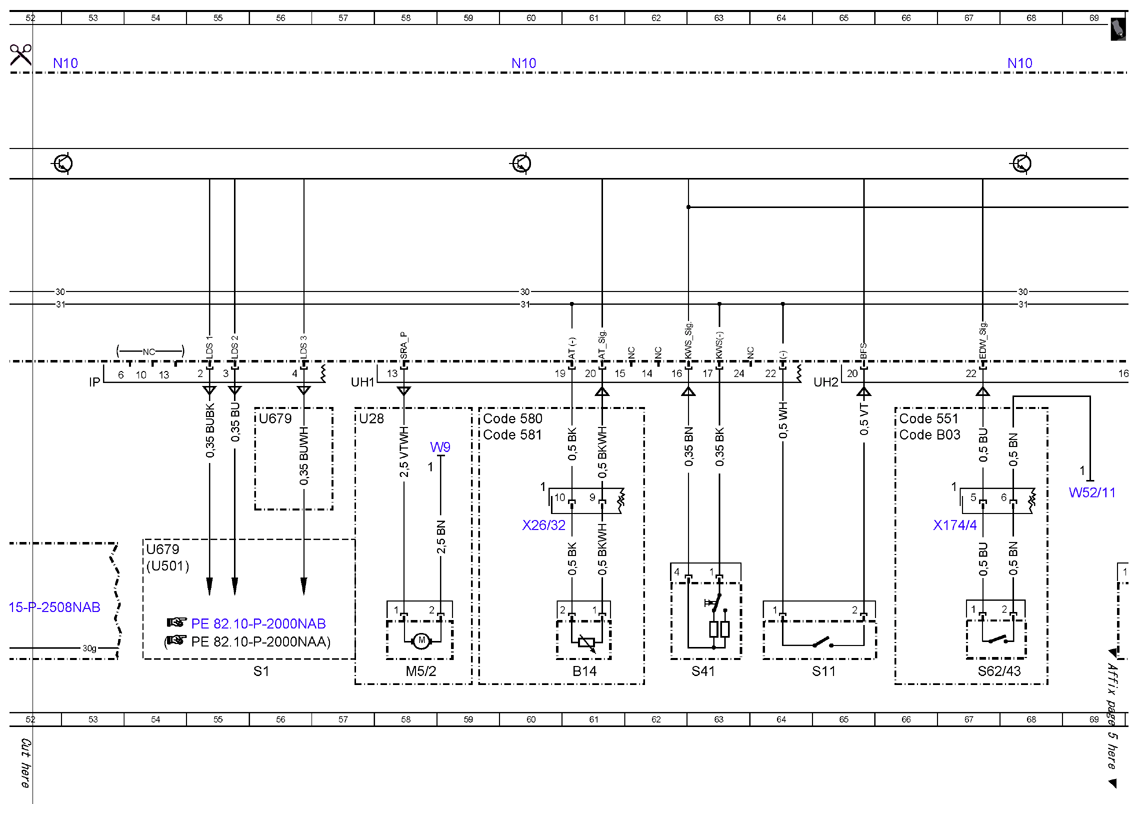

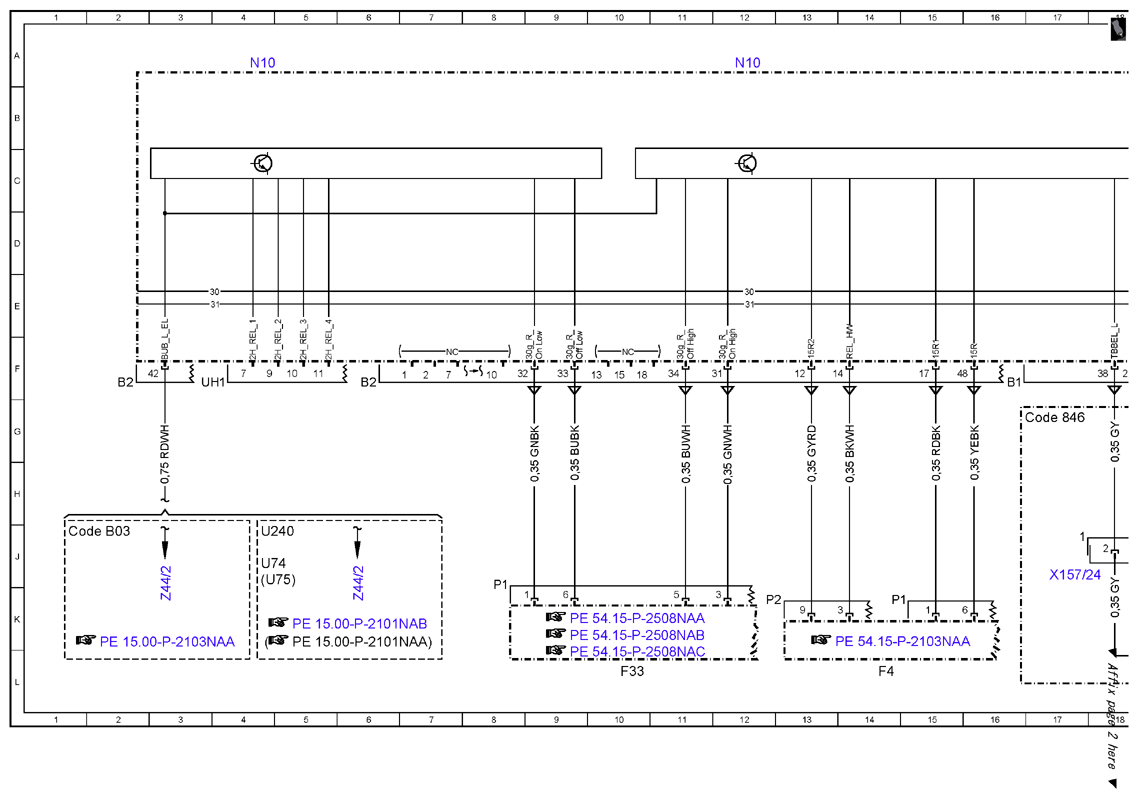

| N10 |
SAM control unit |
4A |
| N10 |
SAM control unit |
12A |
| N10 |
SAM control unit |
20A |
| N10 |
SAM control unit |
28A |
| N10 |
SAM control unit |
36A |
| N10 |
SAM control unit |
44A |
| N10 |
SAM control unit |
52A |
| N10 |
SAM control unit |
60A |
| N10 |
SAM control unit |
68A |
| N3/10 |
ME-SFI [ME] control unit |
33L |
| N3/9 |
CDI control unit |
36L |
| R2/11 |
Spray nozzle hose heater |
73L |
| S1 |
Exterior lights switch |
56L |
| S11 |
Brake fluid level switch |
65L |
| S41 |
Coolant level switch |
63L |

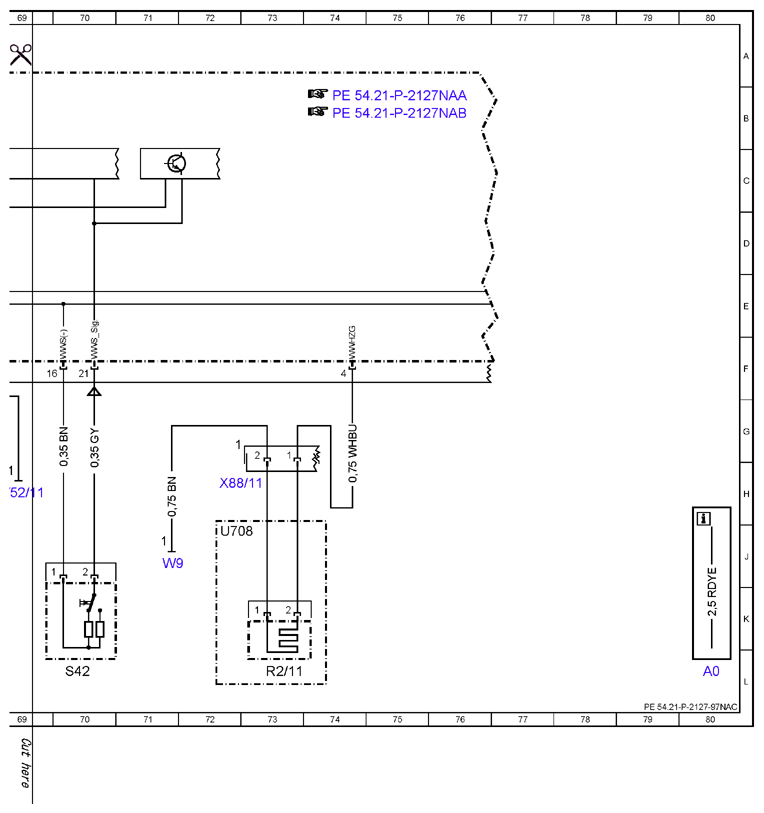

| S42 |
Windshield washer system washer fluid level switch |
70L |
| S62/43 |
Left engine hood contact switch |
67L |
| U1 |
Valid for USA |
36J |
| U1 |
Valid for USA |
36J |
| U1018 |
Valid for gasoline engine 276 |
32H |
| U1019 |
Valid for gasoline engine 278 |
32J |
| U2 |
Valid for all except USA |
36J |
| U2 |
Valid for all except USA |
36J |
| U240 |
Valid for all except ECO start/stop function |
4J |
| U240 |
Valid for all except ECO start/stop function |
41G |
| U28 |
Valid for headlamp cleaning system |
57G |
| U501 |
Valid for xenon headlamps |
54J |
| U679 |
Valid for version without xenon headlamps |
56G |
| U679 |
Valid for version without xenon headlamps |
54J |
| U708 |
Valid for spray nozzle hose heater |
72J |
| U74 |
Valid for diesel engines |
4J |
| U74 |
Valid for diesel engines |
41J |
| U75 |
Valid for gasoline engines |
4J |
| U75 |
Valid for gasoline engines |
41J |
| U880 |
Valid for engine 642 |
35H |
| U948 |
Valid for diesel engine 651 |
35J |
| U948 |
Valid for diesel engine 651 |
35J |
| V19 |
ECO start/stop function diode |
30L |
| W15/1 |
Right footwell ground point |
24G |
| W15/2 |
Left footwell ground point |
18G |
| W52/11 |
Upper right front longitudinal member ground point |
69H |
| W9 |
Left front ground point (at lamp unit) |
58G |
| W9 |
Left front ground point (at lamp unit) |
71J |
| X157/24 |
Left running board courtesy light electrical connector |
17J |
| X157/25 |
Right running board courtesy light electrical connector |
23J |
| X174/4 |
Engine compartment/vehicle front electrical connector |
67J |
| X18/3 |
Vehicle interior/fuel tank electrical connector |
45H |
| X26/32 |
Engine compartment/front bumper electrical connector |
60J |
| X88/11 |
Spray nozzle heater electrical connector |
72H |
| Z214/10 |
Fuel level sensor ground line connector sleeve |
46H |
| Z44/2 |
Buffer battery connector sleeve |
3J |
| Z44/2 |
Buffer battery connector sleeve |
6J |
| Z44/2 |
Buffer battery connector sleeve |
40J |
| Z44/2 |
Buffer battery connector sleeve |
43J |
| Z97 |
Left running board courtesy light circuit 31 connector sleeve |
21H |
| Z97/1 |
Left running board courtesy light circuit 58d connector sleeve |
20H |
| Z97/2 |
Right running board courtesy light circuit 31 connector sleeve |
27H |
| Z97/3 |
Right running board courtesy light circuit 58d connector sleeve |
25H |
