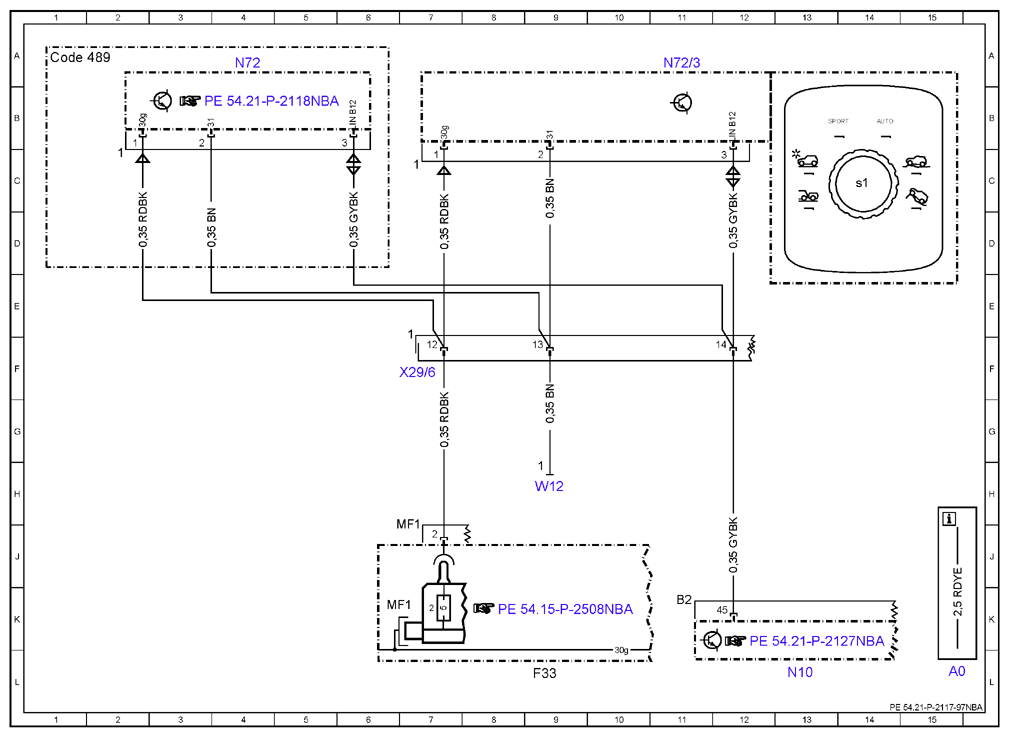

Wiring diagram for offroad control panel control unit - PE54.21-P-2117-97NBA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| Code 489 | AIRMATIC | 1A |
| F33 | Battery compartment prefuse box | 9L |
| F33MF1 | Multiple fuse 1 | 6K |
| N10 | SAM control unit | 13L |
| N72 | Lower control panel control unit | 4A |
| N72/3 | Off-Road operating panel control unit | 11A |
| N72/3s1 | Off-Road package transmission mode controller | 14C |
| W12 | Ground point (center console) | 9H |
| X29/6 | Center console electrical connector | 7F |
