| A0 |
Color code key |
32L |
| A40/13 |
Stereo multifunction camera |
24L |
| B24/15 |
Yaw rate sensor for lateral and longitudinal acceleration |
15J |
| CAN E1 |
Chassis CAN 1 |
8K |
| CAN E2 |
Chassis CAN 2 |
11K |
| Code 23P |
Driver assistance package |
18F |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
13G |
| F33 |
Battery compartment prefuse box |
3L |
| F33MF3 |
Multiple fuse 3 |
1K |
| N30/4 |
Electronic Stability Program control unit |
16J |

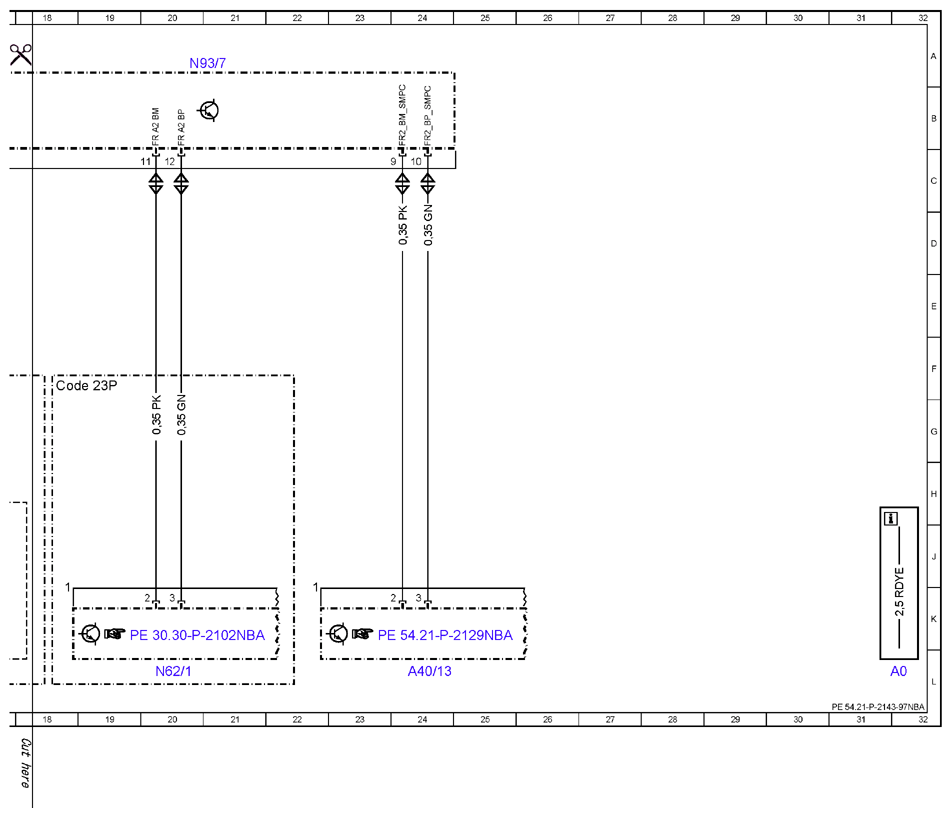

| N62/1 |
Radar sensors control unit |
20L |

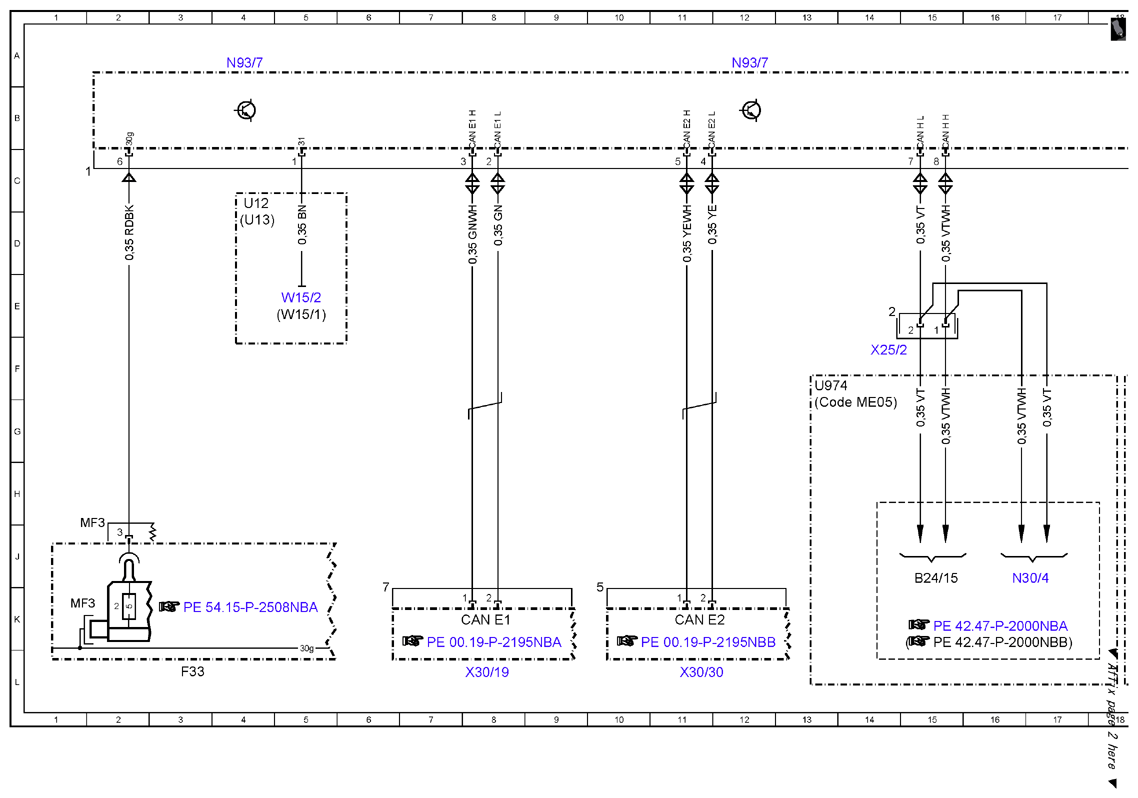

| N93/7 |
Chassis gateway control unit |
4A |
| N93/7 |
Chassis gateway control unit |
12A |
| N93/7 |
Chassis gateway control unit |
20A |
| U12 |
Valid for left-hand drive vehicles |
4C |
| U13 |
Valid for right-hand drive vehicles |
4D |
| U974 |
Not valid for hybrid drive |
13F |
| W15/1 |
Right footwell ground point |
5E |
| W15/2 |
Left footwell ground point |
5E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
14F |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
8L |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
11L |
