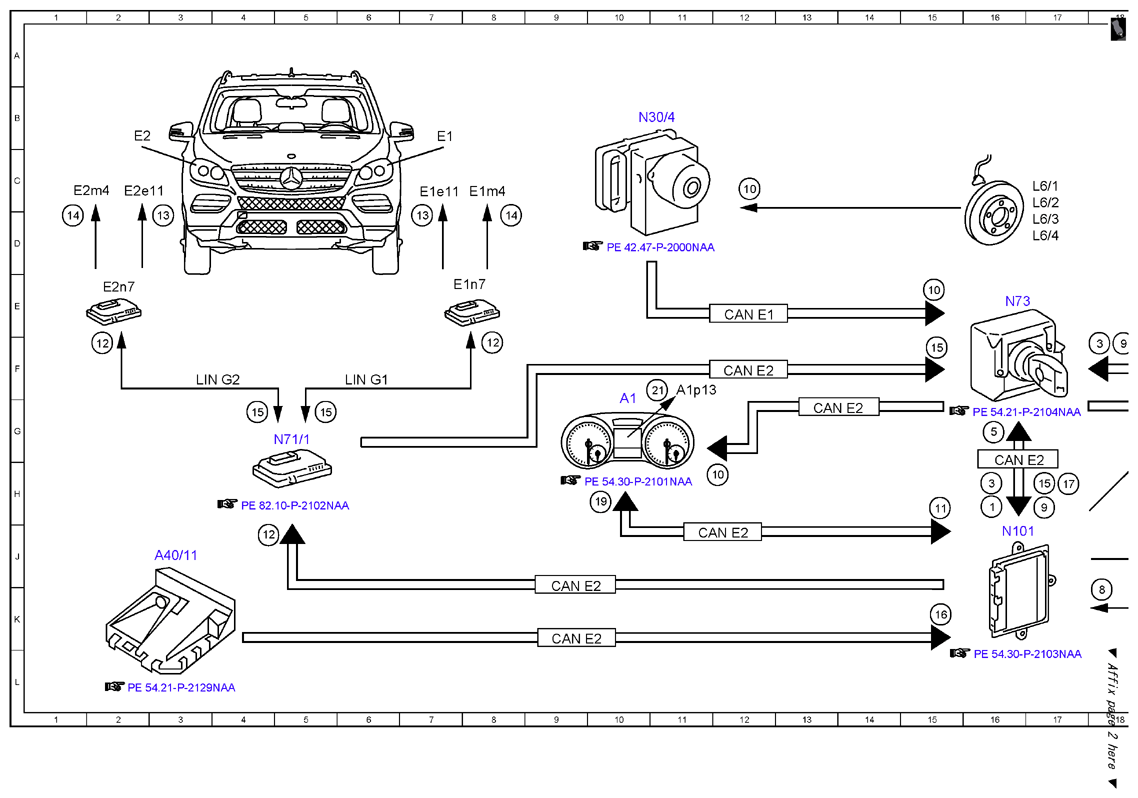

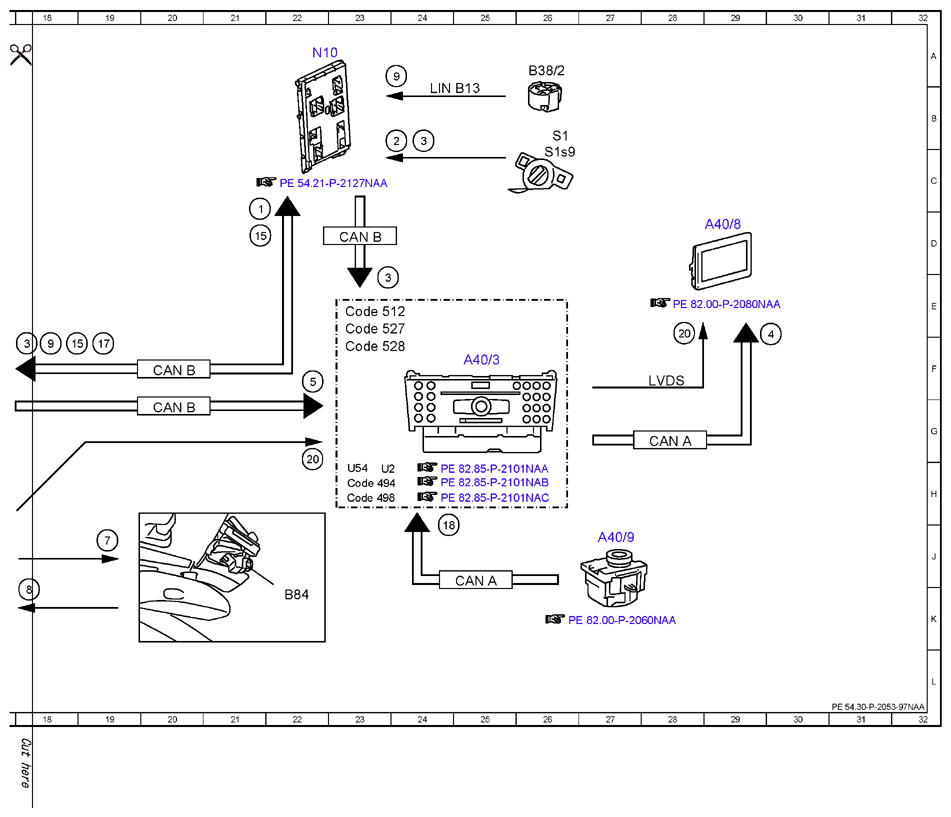

| 1 |
Circuit 15, status |
21D |
| 1 |
Circuit 15, status |
16H |
| 10 |
Wheel speed, signal |
12C |
| 10 |
Wheel speed, signal |
15E |
| 10 |
Wheel speed, signal |
12G |
| 11 |
Vehicle speed, signal |
15H |
| 12 |
Infrared light request |
2F |
| 12 |
Infrared light request |
8F |
| 12 |
Infrared light request |
4J |
| 13 |
Infrared light, actuation |
3D |
| 13 |
Infrared light, actuation |
7D |
| 14 |
Fan motor, actuation |
8D |
| 14 |
Fan motor, actuation |
1D |
| 15 |
Infrared light, status |
15F |
| 15 |
Infrared light, status |
21D |
| 15 |
Infrared light, status |
18F |
| 15 |
Infrared light, status |
17H |
| 15 |
Infrared light, status |
5G |
| 15 |
Infrared light, status |
4G |
| 16 |
Light source detection status |
15K |
| 17 |
Low beams, status |
17H |
| 17 |
Low beams, status |
19F |
| 18 |
Audio/COMAND controller, request |
24J |
| 19 |
Instrument cluster message, request |
10H |
| 2 |
Exterior lights switch, status |
24B |
| 20 |
Night View Assist camera processed image data, signal |
22H |
| 20 |
Night View Assist camera processed image data, signal |
26E |
| 21 |
Multifunction display, actuation |
10F |
| 3 |
Night View Assist button, status |
24B |
| 3 |
Night View Assist button, status |
23E |
| 3 |
Night View Assist button, status |
18F |
| 3 |
Night View Assist button, status |
16H |
| 4 |
Audio/COMAND display, actuation |
30F |
| 5 |
Night View Assist, status |
16G |
| 5 |
Night View Assist, status |
22F |
| 7 |
Night View Assist camera, actuation |
19J |
| 8 |
Night View Assist camera image data, signal |
18K |
| 9 |
Rain/light sensor, status |
24A |
| 9 |
Rain/light sensor, status |
17H |
| 9 |
Rain/light sensor, status |
18F |
| A1 |
Instrument cluster |
10G |
| A1p13 |
Multifunction display |
11F |
| A40/11 |
Multifunction camera |
3J |
| A40/3 |
COMAND control unit |
25F |
| A40/8 |
Audio/COMAND display |
29D |
| A40/9 |
Audio/COMAND control panel |
27J |
| B38/2 |
Rain/light sensor |
26A |
| B84 |
Night View Assist camera |
22K |
| CAN A |
Telematics CAN |
28G |
| CAN A |
Telematics CAN |
25J |
| CAN B |
Interior CAN |
20G |
| CAN B |
Interior CAN |
20F |
| CAN B |
Interior CAN |
23D |
| CAN E1 |
Chassis CAN 1 |
12E |
| CAN E2 |
Chassis CAN 2 |
9K |
| CAN E2 |
Chassis CAN 2 |
9K |
| CAN E2 |
Chassis CAN 2 |
12J |
| CAN E2 |
Chassis CAN 2 |
16H |
| CAN E2 |
Chassis CAN 2 |
13G |
| CAN E2 |
Chassis CAN 2 |
12F |
| Code 494 |
USA version |
23H |
| Code 498 |
Japan version |
23H |
| Code 512 |
COMAND APS with DVD changer |
23E |
| Code 527 |
COMAND APS (with navigation) |
23E |
| Code 528 |
COMAND with DVD changer |
23F |
| E1 |
Left front lamp unit |
7B |
| E1e11 |
Left infrared lamp |
7C |
| E1m4 |
Left LED signaling lights actuation module fan motor |
8C |
| E1n7 |
Actuation module for left front exterior lights LED |
8E |
| E2 |
Right front lamp unit |
2B |
| E2e11 |
Right infrared lamp |
2C |
| E2m4 |
Right LED signaling lights actuation module fan motor |
1C |
| E2n7 |
Actuation module for right front exterior lights LED |
2E |
| L6/1 |
Left front axle rpm sensor |
17C |
| L6/2 |
Right front axle rpm sensor |
17C |
| L6/3 |
Left rear axle rpm sensor |
17D |
| L6/4 |
Right rear axle rpm sensor |
17D |
| LIN B13 |
Roof LIN |
24B |
| LIN G1 |
Left headlamp LIN |
6F |
| LIN G2 |
Right headlamp LIN |
3F |
| LVDS |
Low voltage differential signal |
28F |
| N10 |
SAM control unit |
22A |
| N101 |
Night View Assist control unit |
16J |
| N30/4 |
Electronic Stability Program control unit |
10B |
| N71/1 |
Headlamp control unit |
5G |
| N73 |
Electronic ignition switch control unit |
16E |
| S1 |
Exterior lights switch |
26B |
| S1s9 |
Night View Assist button |
26C |
| U2 |
Valid for all except USA |
23H |
| U54 |
Valid for all except Japan |
23H |
