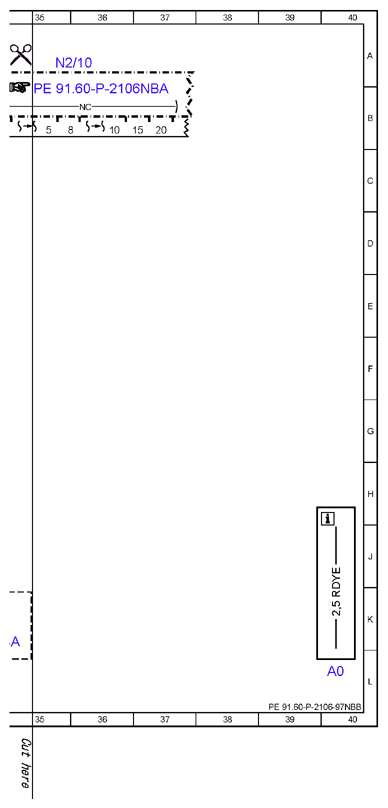

| A0 |
Color code key |
40L |
| Code 348 |
Emergency call/assistance system |
16D |
| Code B03 |
ECO start/stop function |
5D |

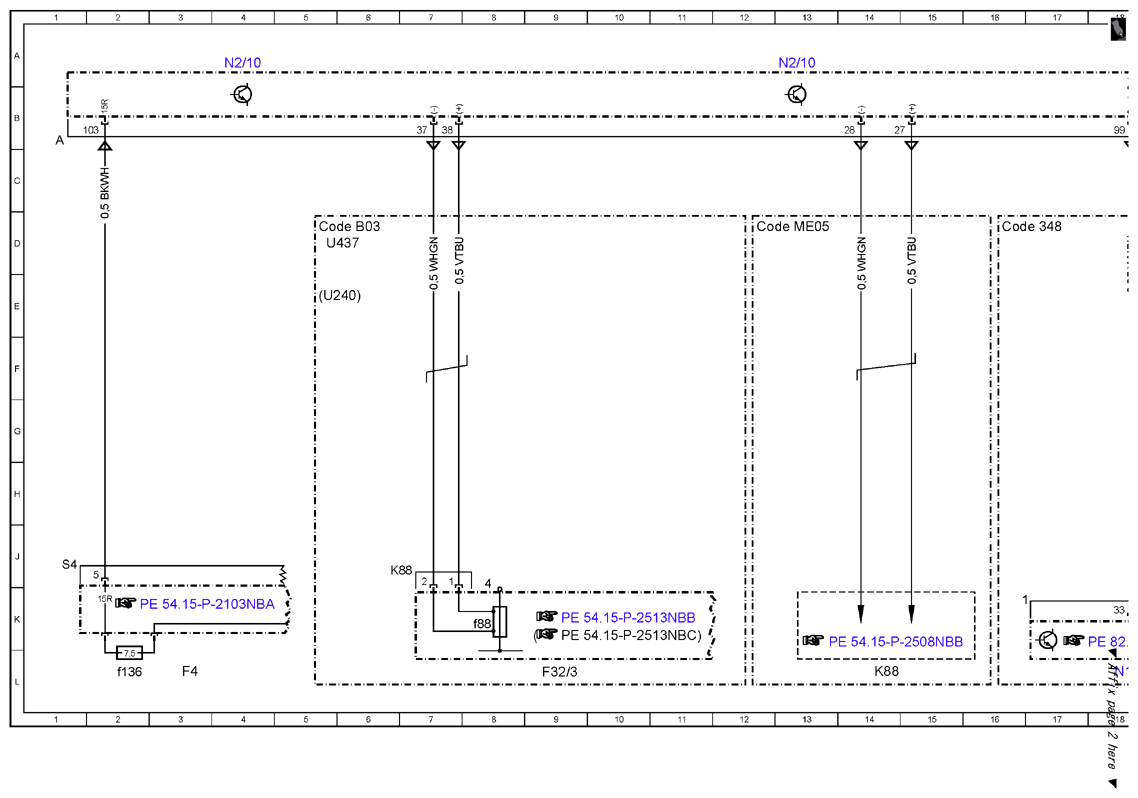

| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
12D |
| F32/3 |
Engine compartment prefuse box |
9L |
| F32/3f88 |
Pyrofuse |
8K |
| F4 |
Rear fuse box |
3L |
| F4f136 |
Fuse 136 |
2L |
| K88 |
Pyrotechnical separator |
14L |
| N123/4 |
Emergency call system control unit |
18L |

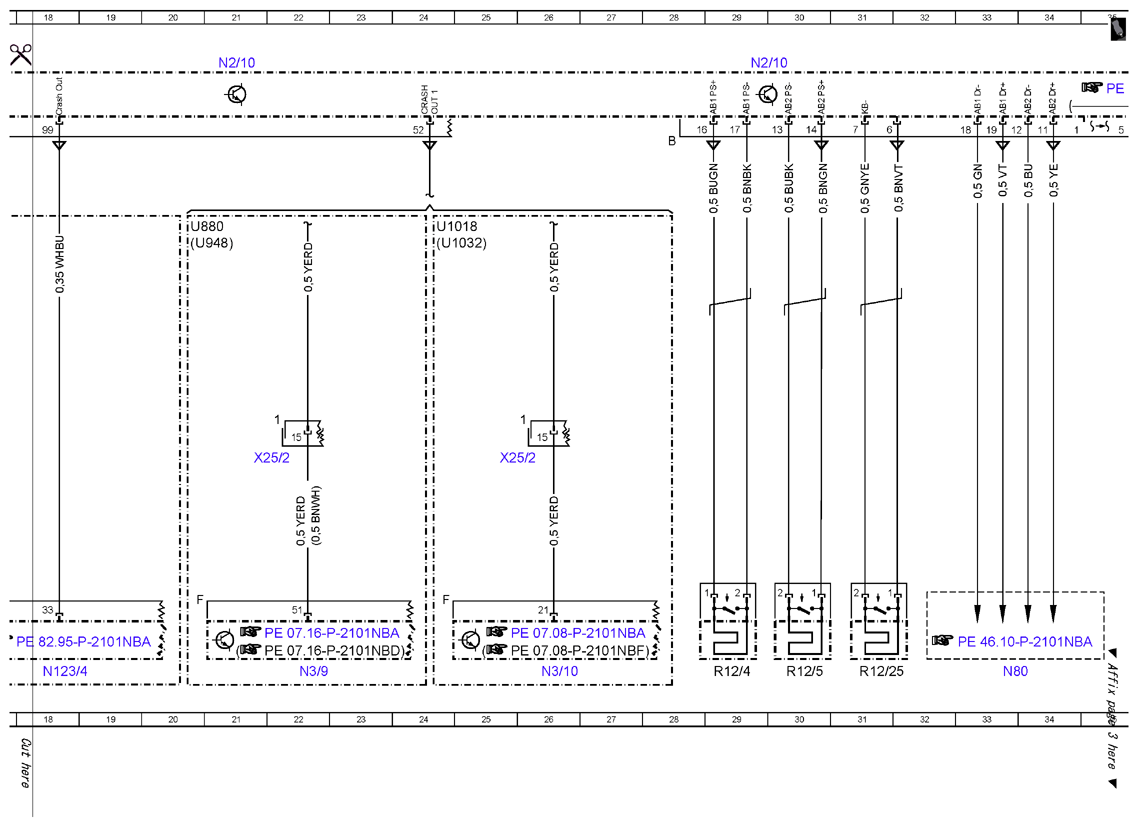

| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
21A |
| N2/10 |
Supplemental restraint system control unit |
29A |
| N2/10 |
Supplemental restraint system control unit |
35A |
| N2/10 |
Supplemental restraint system control unit |
13A |
| N3/10 |
ME-SFI [ME] control unit |
26L |
| N3/9 |
CDI control unit |
22L |
| N80 |
Steering column module control unit |
33L |
| R12/25 |
Driver kneebag squib |
31L |
| R12/4 |
Front passenger airbag squib 1 |
29L |
| R12/5 |
Front passenger airbag squib 2 |
30L |
| U1018 |
Valid for gasoline engine 276 |
24D |
| U1032 |
Valid for engine 278 and 157 |
24D |
| U240 |
Valid for all except ECO start/stop function |
5E |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
5D |
| U880 |
Valid for engine 642 |
20D |
| U948 |
Valid for diesel engine 651 |
20D |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
22H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
26H |
