| A0 |
Color code key |
32L |
| CAN B |
Interior CAN |
2K |
| CAN B |
Interior CAN |
11K |
| CAN B |
Interior CAN |
17K |
| F33 |
Battery compartment prefuse box |
13L |
| F33f64 |
Fuse 64 |
12L |

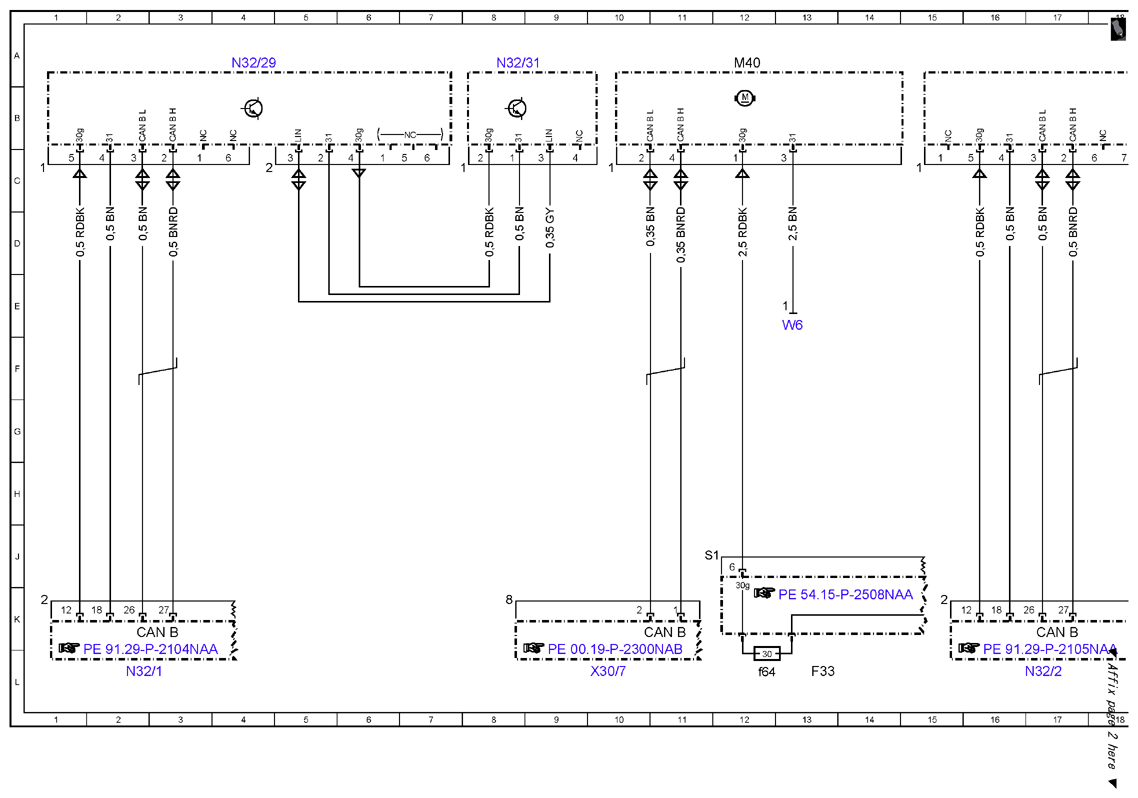

| M40 |
Multicontour seat pneumatic pump |
12A |
| N32/1 |
Driver seat control unit |
2L |
| N32/2 |
Front passenger seat control unit |
17L |
| N32/29 |
Driver multicontour seat control unit |
4A |

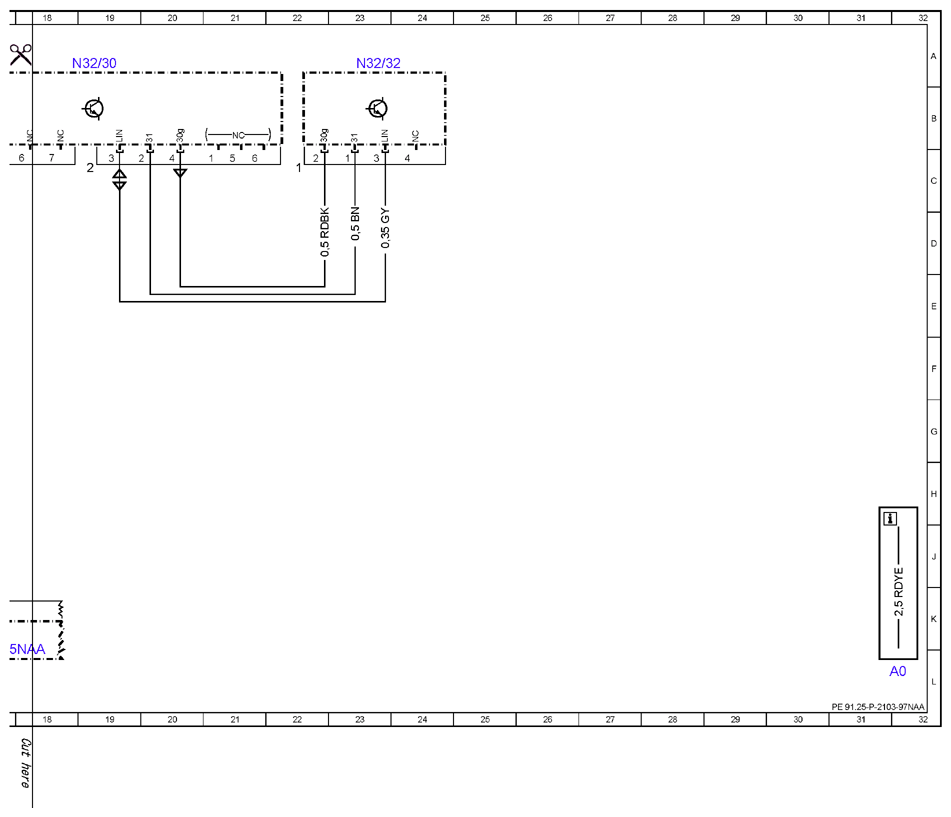

| N32/30 |
Front passenger multicontour seat control unit |
19A |
| N32/31 |
Driver massage function control unit |
8A |
| N32/32 |
Front passenger massage function control unit |
23A |
| W6 |
Inner left D-pillar ground point |
13E |
| X30/7 |
Left potential distributor electrical connector (CAN) |
10L |
