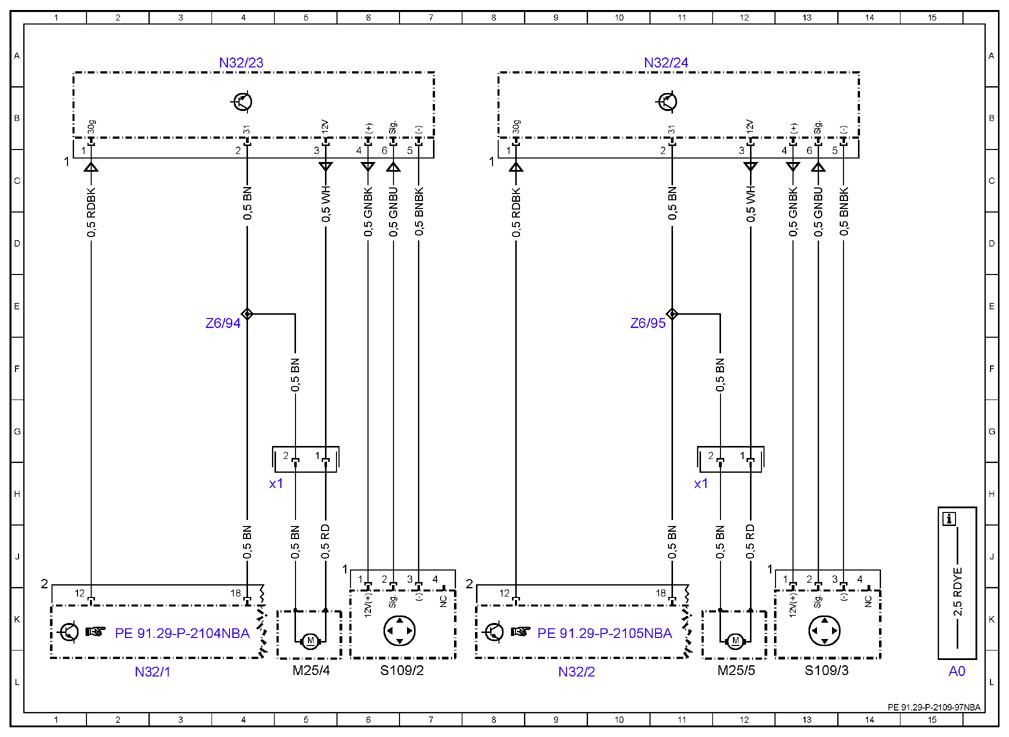

| A0 |
Color code key |
15L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
5L |
| M25/4x1 |
Driver seat lumbar support pneumatic pump electrical connector |
5H |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
12L |
| M25/5x1 |
Front passenger seat lumbar support pneumatic pump electrical connector |
11H |
| N32/1 |
Driver seat control unit |
2L |
| N32/2 |
Front passenger seat control unit |
9L |
| N32/23 |
Driver seat lumbar support adjustment control unit |
4A |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
11A |
| S109/2 |
Driver seat lumbar support adjustment switch |
6L |
| S109/3 |
Front passenger seat lumbar support adjustment switch |
13L |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
4E |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
10E |
