Remove/install trim at C-pillar - AR68.30-P-4490GQX

MODEL 166.8

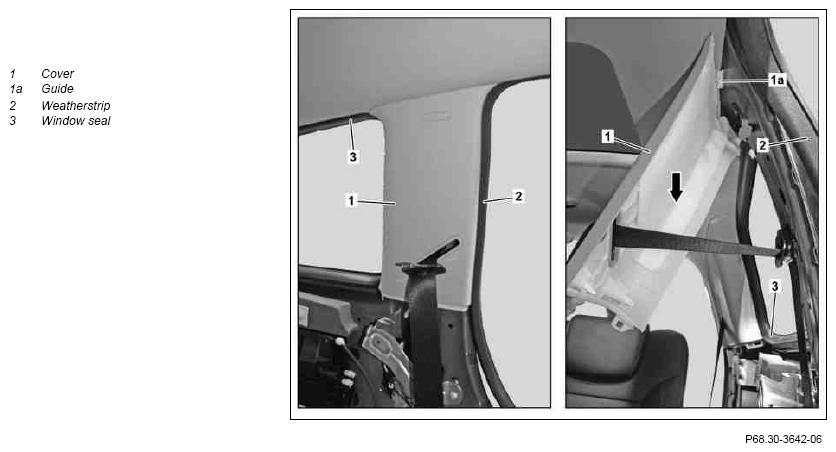

Fig 1: Identifying C-Pillar Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove side paneling in trunk		AR68.30-P-4800GQX
2	Remove sealing weather strip (2) in area of paneling (1)
3	Pry off lower paneling (1) and pull out of guide (1a) in direction of arrow	Ensure that paneling (1) and window seal (3) are seated correctly.
		Mounting wedge	Figure
4	Install seat belt and remove paneling (1)
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
