Remove/install hydraulic pump pulsation damper - AR32.34-P-0013GQX
MODEL 166 with ENGINE 157, 278 with CODE 468 (ACTIVE CURVE SYSTEM)
| Remove/install | |||
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on active roll stabilization | AH32.34-P-0001-01A | ||
| 1 | Open engine hood | AR88.40-P-1000GQ | |
| 2 | Remove center section of engine cover | ||
| Clean | |||

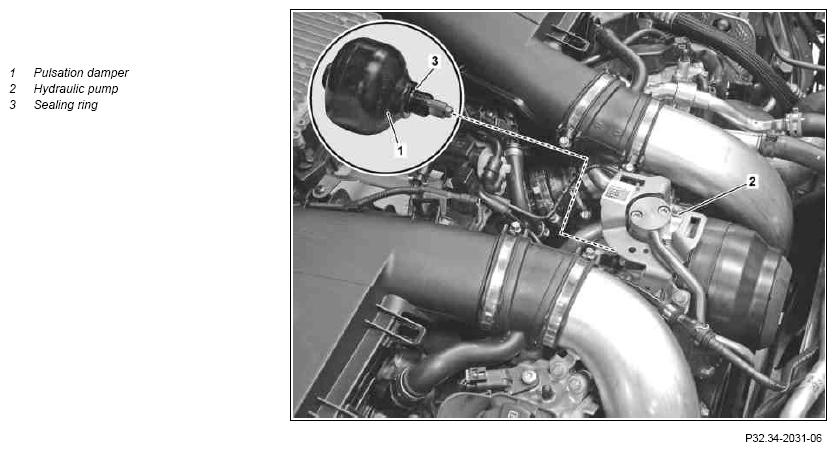

| 3 | Clean the area around the pulsation damper (1) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 4 | Unbolt pulsation damper (1) from hydraulic pump (2) | ||
| *BA32.00-P-1005-01A | |||
| 5 | Fill and bleed ACTIVE CURVE SYSTEM | AR32.34-P-0021GQ | |
| 6 | Install in the reverse order |
HYDRAULIC PUMP
| Number | Designation | MODEL 166 with ENGINE 157 | MODEL 166 with ENGINE 278 | |
|---|---|---|---|---|
| BA32.00-P-1005-01A | Pulsation damper to hydraulic pump | Nm | 45 | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | - |
