Remove/Install Rear Axle Headlamp Range Adjustment Sensor - AR82.10-P-4084GQ
MODEL 166 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic))
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |
| 2 | Unclip lever (2) | ||
| 3 | Remove bolt (3) | *BA82.10-P-1001-02C | |

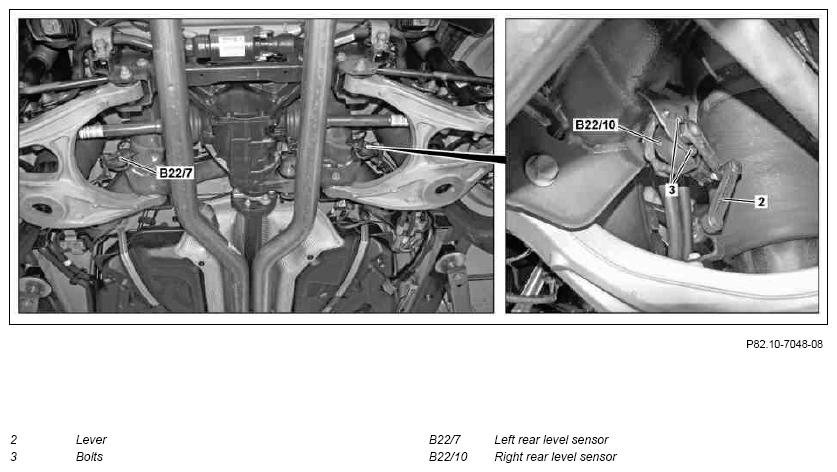

| 4 | Remove level sensor (B22/7) or (B22/10) from retaining plate and disconnect electrical connector | ||
| 5 | Install in the reverse order | ||
| 6 | Connect Star Diagnosis, read out fault memory and adjust zero position of headlamps | ||
| AD00.00-P-2000-04A | |||
| 7 | Check headlamp setting and correct if necessary | ||
| AP82.10-P-8260GZA |
REAR AXLE LEVEL SENSOR
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA82.10-P-1001-02C | Screw/bolt, level sensor to retaining plate | Nm | 5 |
