Wiring diagram for multifunction camera - PE54.21-P-2129-97NBA

Code:	Designation:	Position:
A0	Color code key	15L
A40/13	Stereo multifunction camera	6A
F33	Battery compartment prefuse box	3L
F33MF2	Multiple fuse 2	2K
N93/7	Chassis gateway control unit	8L
R50	Auxiliary heater heating element	10L
W15/2	Left footwell ground point	3E

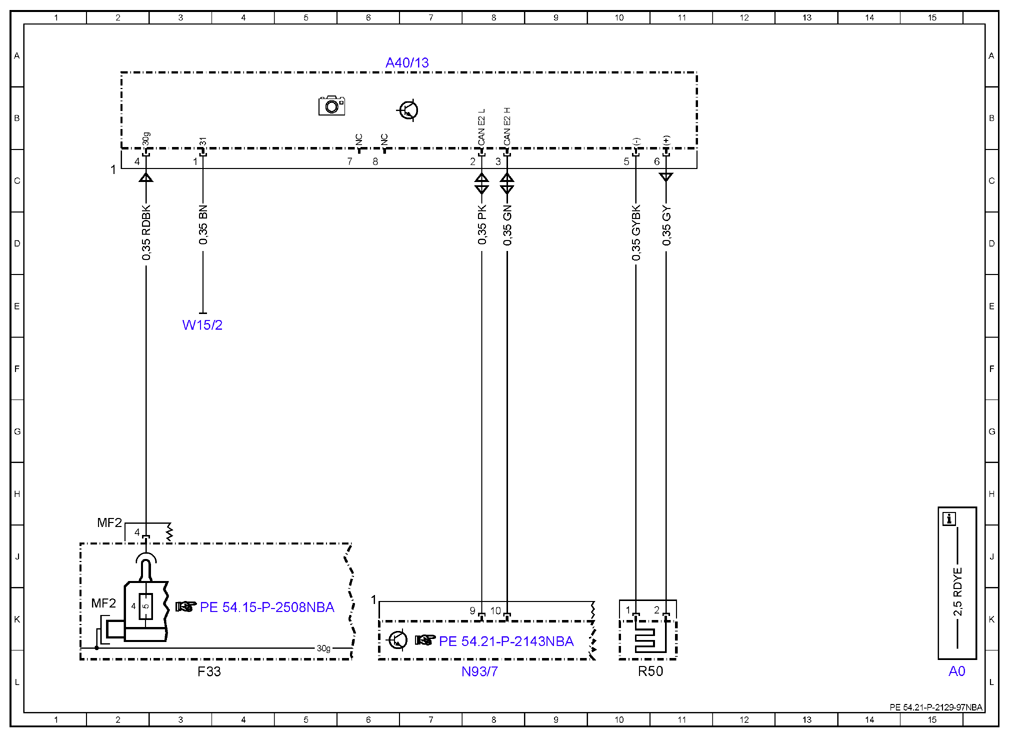

Fig 1: Multifunction Camera Wiring Diagram

Courtesy of MERCEDES-BENZ USA
