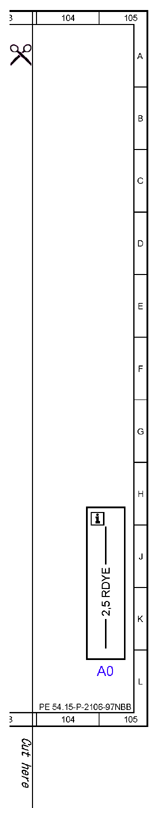

| A0 |
Color code key |
105L |
| A89 |
DISTRONIC electric controller unit |
38L |
| B92 |
Front long-range radar sensor |
38L |
| Code 239 |
|
36F |
| Code 23P |
Driver assistance package |
36G |
| Code 4U7 |
Start/stop voltage dip protection |
3K |
| Code 4U7 |
Start/stop voltage dip protection |
47F |
| Code 640 |
High Performance LED |
83F |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
83G |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
83G |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
2K |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
10G |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
6G |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
28F |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
40G |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
18A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
65F |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
90F |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
72G |
| E1 |
Left front lamp unit |
45L |
| E1 |
Left front lamp unit |
85L |
| E2 |
Right front lamp unit |
46L |
| E2 |
Right front lamp unit |
89L |
| F32/3 |
Engine compartment prefuse box |
4L |
| F32/3f5 |
Fuse 5 |
1K |
| F33 |
Battery compartment prefuse box |
50L |
| F58 |
Engine compartment fuse and relay module |
4A |
| F58 |
Engine compartment fuse and relay module |
13A |
| F58 |
Engine compartment fuse and relay module |
36A |
| F58 |
Engine compartment fuse and relay module |
21A |
| F58 |
Engine compartment fuse and relay module |
28A |
| F58 |
Engine compartment fuse and relay module |
44A |
| F58 |
Engine compartment fuse and relay module |
53A |
| F58 |
Engine compartment fuse and relay module |
59A |
| F58 |
Engine compartment fuse and relay module |
66A |
| F58 |
Engine compartment fuse and relay module |
76A |
| F58 |
Engine compartment fuse and relay module |
85A |
| F58 |
Engine compartment fuse and relay module |
92A |
| F58 |
Engine compartment fuse and relay module |
97A |
| F58f201 |
Fuse 201 |
92A |
| F58f206 |
Fuse 206 |
77A |
| F58f207 |
Fuse 207 |
84A |
| F58f208 |
Fuse 208 |
80A |

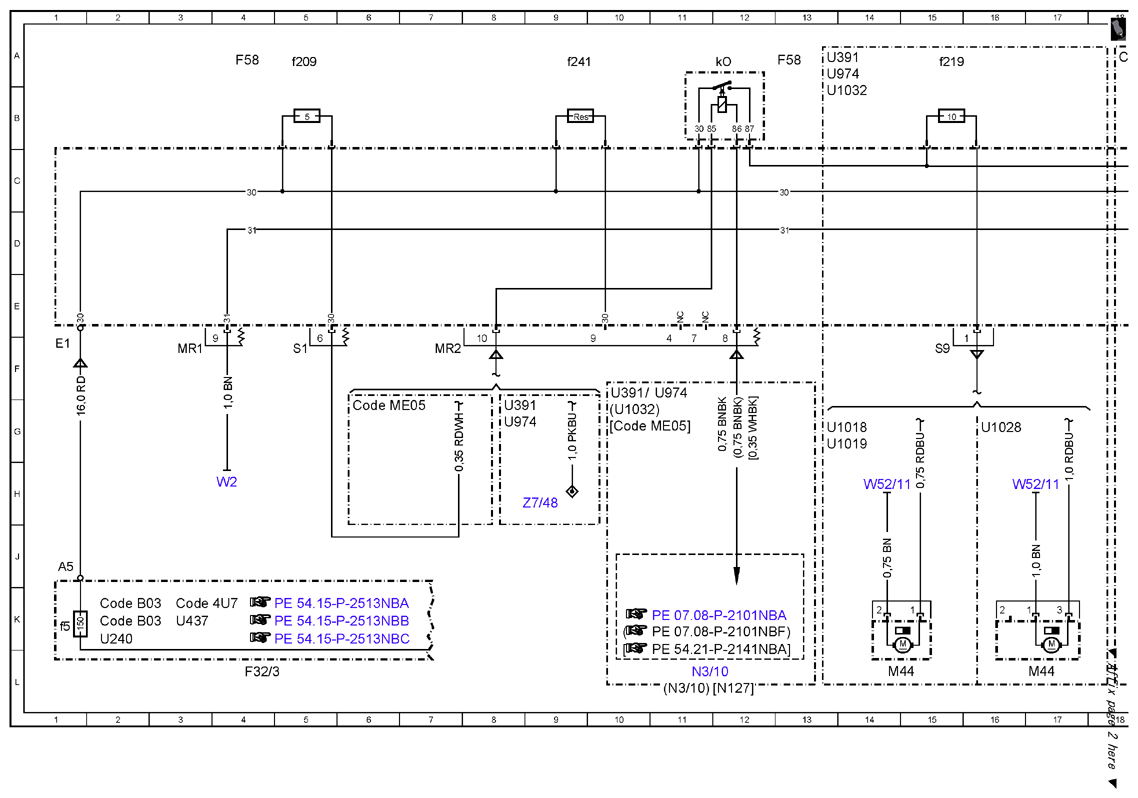

| F58f209 |
Fuse 209 |
5A |
| F58f210 |
Fuse 210 |
78A |

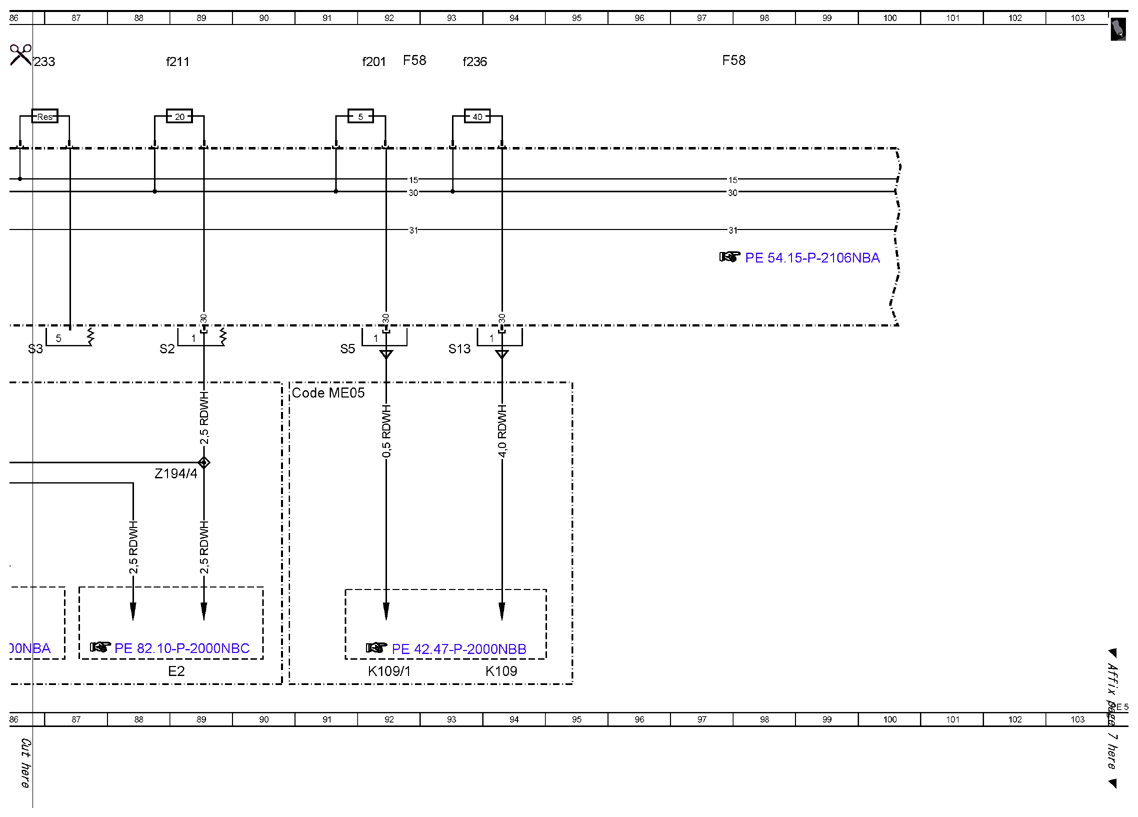

| F58f211 |
Fuse 211 |
89A |
| F58f213 |
Fuse 213 |
60A |
| F58f214 |
Fuse 214 |
75A |
| F58f215 |
Fuse 215 |
58A |
| F58f216 |
Fuse 216 |
59A |
| F58f217 |
Fuse 217 |
57A |
| F58f218 |
Fuse 218 |
73A |

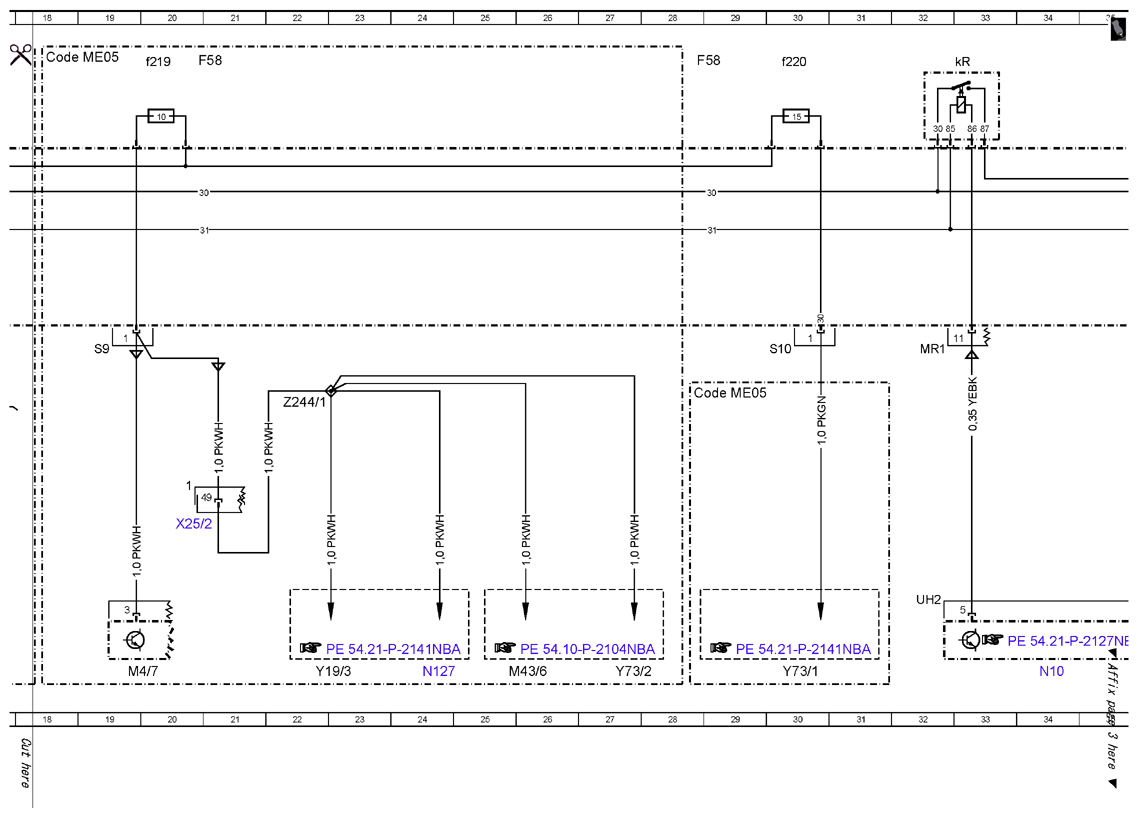

| F58f219 |
Fuse 219 |
20A |
| F58f219 |
Fuse 219 |
15A |
| F58f220 |
Fuse 220 |
30A |
| F58f222 |
Fuse 222 |
63A |
| F58f223 |
Fuse 223 |
65A |

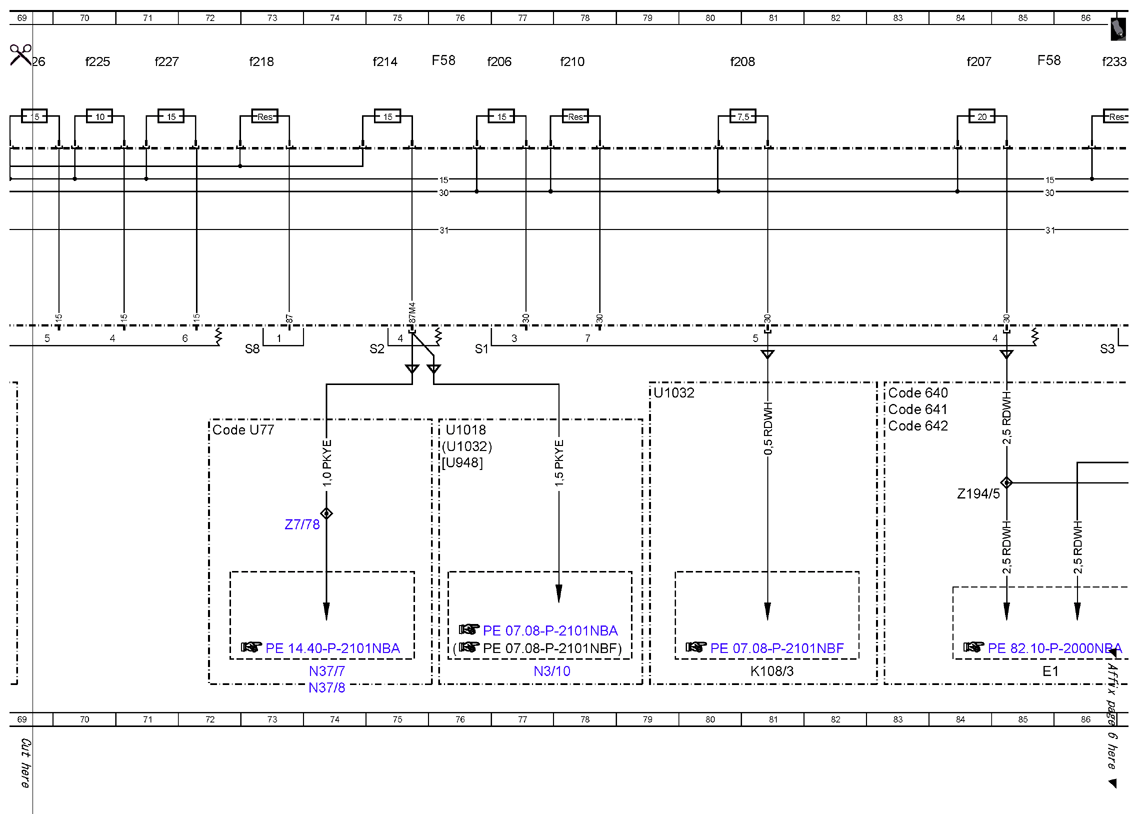

| F58f224 |
Fuse 224 |
67A |
| F58f225 |
Fuse 225 |
70A |
| F58f226 |
Fuse 226 |
69A |
| F58f227 |
Fuse 227 |
71A |
| F58f228 |
Fuse 228 |
68A |
| F58f229 |
Fuse 229 |
45A |

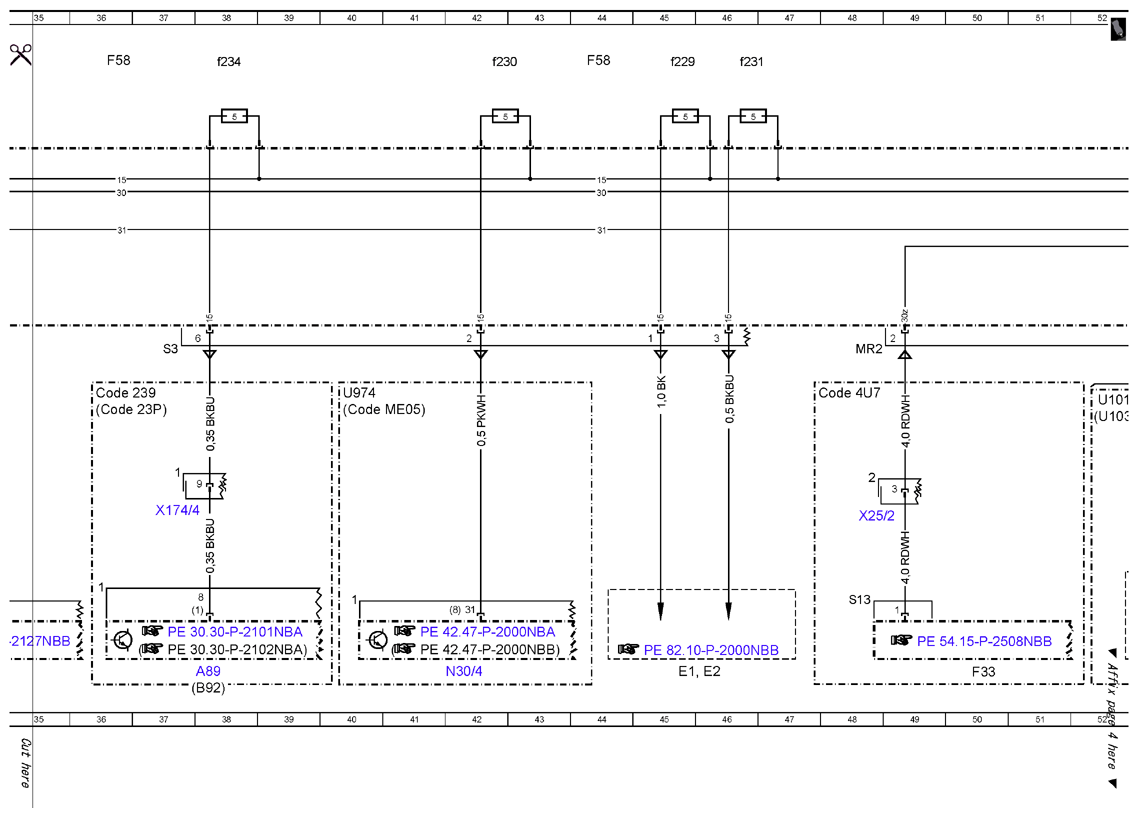

| F58f230 |
Fuse 230 |
42A |
| F58f231 |
Fuse 231 |
46A |
| F58f233 |
Fuse 233 |
86A |
| F58f234 |
Fuse 234 |
38A |
| F58f236 |
Fuse 236 |
93A |
| F58f241 |
Fuse 241 |
9A |

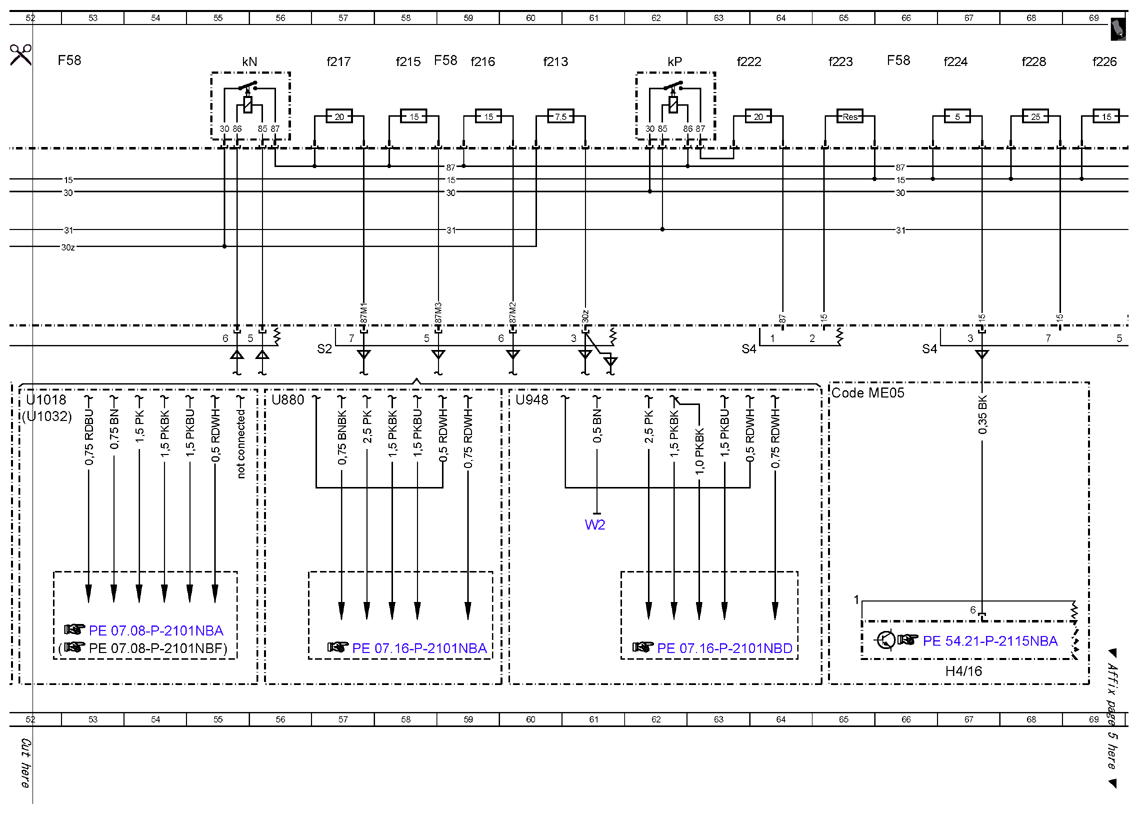

| F58kN |
Circuit 87M relay |
55A |
| F58kO |
Turbocharger relay |
12A |
| F58kP |
Backup relay |
62A |
| F58kR |
Circuit 15 relay |
33A |
| H4/16 |
Sound generator |
67L |
| K108/3 |
Coolant run-on pump relay |
81L |
| K109 |
Vacuum pump relay (+) |
94L |
| K109/1 |
Vacuum pump relay (-) |
92L |
| M4/7 |
Fan motor |
19L |
| M43/6 |
Low temperature circuit circulation pump 1 |
26L |
| M44 |
Charge air cooler circulation pump |
14L |
| M44 |
Charge air cooler circulation pump |
17L |
| N10 |
SAM control unit |
34L |
| N127 |
Drivetrain control unit |
12L |
| N127 |
Drivetrain control unit |
24L |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/10 |
ME-SFI [ME] control unit |
77L |
| N30/4 |
Electronic Stability Program control unit |
42L |
| N37/7 |
NOx sensor control unit downstream of diesel particulate filter |
74L |
| N37/8 |
NOx sensor control unit downstream of SCR catalytic converter |
74L |
| U1018 |
Valid for gasoline engine 276 |
13G |
| U1018 |
Valid for gasoline engine 276 |
52G |
| U1018 |
Valid for gasoline engine 276 |
76G |
| U1019 |
Valid for gasoline engine 278 |
13G |
| U1028 |
Valid for engine 157 |
16G |
| U1032 |
Valid for engine 278 and 157 |
10G |
| U1032 |
Valid for engine 278 and 157 |
52G |
| U1032 |
Valid for engine 278 and 157 |
13B |
| U1032 |
Valid for engine 278 and 157 |
76G |
| U1032 |
Valid for engine 278 and 157 |
79F |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U391 |
Valid for gasoline engine 276.8 |
8G |
| U391 |
Valid for gasoline engine 276.8 |
10F |
| U391 |
Valid for gasoline engine 276.8 |
13A |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
3K |
| U880 |
Valid for engine 642 |
56G |
| U948 |
Valid for diesel engine 651 |
60G |
| U948 |
Valid for diesel engine 651 |
76H |
| U974 |
Not valid for hybrid drive |
8G |
| U974 |
Not valid for hybrid drive |
11F |
| U974 |
Not valid for hybrid drive |
40F |
| U974 |
Not valid for hybrid drive |
13A |
| W2 |
Right front ground point at lamp unit |
4H |
| W2 |
Right front ground point at lamp unit |
61J |
| W52/11 |
Upper right front longitudinal member ground point |
14H |
| W52/11 |
Upper right front longitudinal member ground point |
16H |
| X174/4 |
Engine compartment/vehicle front electrical connector |
37H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
20J |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
48H |
| Y19/3 |
Front evaporator shutoff valve |
22L |
| Y73/1 |
Low-temperature circuit switchover valve |
30L |
| Y73/2 |
Low-temperature circuit switchover valve 2 |
27L |
| Z194/4 |
Circuit 30/1 connector sleeve (front lamp unit) |
89H |
| Z194/5 |
Circuit 30/2 connector sleeve (front lamp unit) |
84H |
| Z244/1 |
Connector sleeve, circuit 87/C1 |
22G |
| Z7/48 |
Circuit 87D2 connector sleeve |
9H |
| Z7/78 |
Circuit 87 D4 connector sleeve |
73J |
