Drain/pour in coolant - AR20.00-P-1142GW

MODEL 463 with ENGINE 157

MODIFICATION NOTES

20.11.2013	Work procedure altered and special tools for electrical vacuum pump and NTKL adaptation, added. Operation steps 14 to 26		AR20.00-P-1142-04A
26.09.2014	Mixing ratio of coolant		BF20.00-P-1001-04A

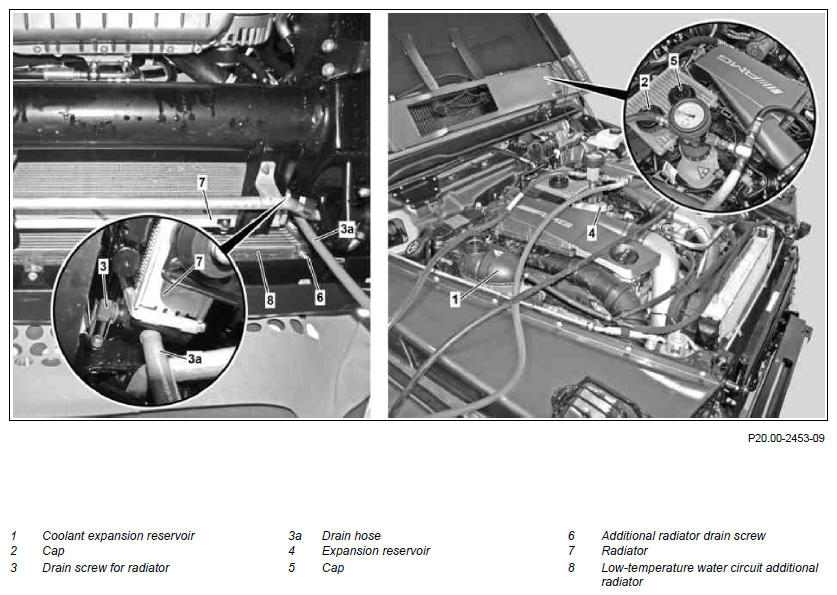

Fig 1: Coolant Expansion Reservoir, Drain Hose, Additional Radiator Drain Screw, Cap, Expansion Reservoir And Radiator

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant level		AH20.00-P-1142-01V
	Notes on coolant		AH20.00-N-2080-01A
	Drain off
1	Open engine hood		AR88.40-P-1000GG
2	Lift/jack up vehicle		AR00.60-P-1000G
3	Remove underride guard	Helper required.
	Drain coolant at radiator (7)
4	Unscrew cap (2) slowly at coolant expansion reservoir (1) and relieve overpressure
5	Drain off coolant	To do this place drain hose (3a) with an inside diameter of 12 mm on the radiator (7), then open the radiator drain screw (3). Catch coolant in a suitable container. Observe regulations to dispose of coolant.
	Drain coolant at low-temperature water circuit additional radiator (8)
6	Unscrew cap (5) slowly at expansion reservoir (4) and relieve overpressure
7	Drain off coolant	To do this open additional radiator drain screw (6). Catch coolant in a suitable container. Observe regulations to dispose of coolant. Replace additional radiator drain screw (6) and seal.
	Pour in
8	Detach drain hose (3a)
9	Tighten down cooler drain screw (3)
10	Tighten down additional radiator drain screw (6)	Drain screw to additional radiator for low-temperature circuit	*BA20.20-P-1003-01O
11	Pour in coolant and bleed cooling system		AR20.00-P-1142-04A
		Coolant mixing ratio	*BF20.00-P-1001-04A
		Electric vacuum pump	Fig 2
		NTKL Adaption	Fig 3
		Test cap	Figure
		Cooler vacuum filling device	Fig 4
12	Check cooling system for leaktightness		AR20.00-P-1010GW
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Perform an engine test run and check cooling system for proper operation

RADIATOR, COOLANT HOSES

Number	Designation			Engine 157
BA20.20-P-1003-01O	Drain screw to additional radiator for low-temperature circuit	M12	Nm	30

COOLANT MIXING RATIO

Number	Designation				Engine all
BF20.00-P-1001-04A	Coolant mixing ratio	Antifreeze/water	Up to -37°C	%	50/50
			As of -38 °C	%	55/45
			Sheet		Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
			Sheet		Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
			Sheet		Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1

Fig 2: Identifying Electric Vacuum Pump (285 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying NTKL Adaption (285 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Cooler Vacuum Filling Device (285 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
