Remove/install belt drive components - AR13.20-P-0001GW

ENGINES 157 in MODEL 463

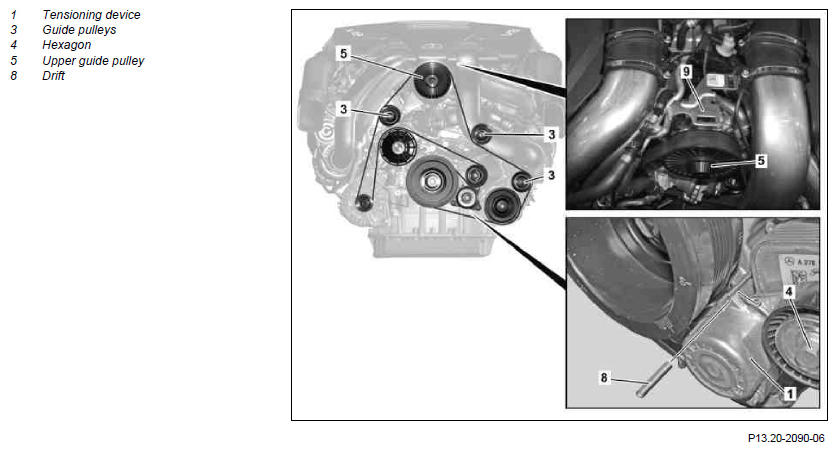

Fig 1: Belt Drive Remove/Install Components
G10780036Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove center section of engine cover INSTALLATION IMPORTANT Ensure correct seating of the engine cover.
2 Remove fan unit   AR20.40-P-5050GW
3 Slacken poly-V belt and remove IMPORTANT To do so, swivel clamping device (1) at hexagon (4) counterclockwise, remove poly-V belt and detension clamping device (1).
INSTALLATION NOTES Do not use any belt wax or similar products. This leads to slipping of the poly-V belt.

INSTALLATION IMPORTANT Observe routing diagram for poly-V belt. AR13.22-P-3902-02MM
INSPECT Checking
4 Inspect belt pulley sections, tensioning device (1) and guide pulleys (3) IMPORTANT Check for damage, wear and dirt; replace if necessary.
5 Check poly-V belt IMPORTANT Check for damage, wear and dirt; replace if necessary.
  Only perform Operation steps 6 through 9 for remove/install of clamping device (1).
6 Lock clamping device (1) IMPORTANT Swivel clamping device (1) at hexagon (4) counterclockwise and lock in place using drift (8).
7 Remove screw/bolts on clamping device (1) TORQUE SPECIFICATION *BA13.25-P-1001-01Y
8 Remove clamping device (1) upwards
9 Slacken clamping device (1) When replacing the clamping device (1)
IMPORTANT Clamp tensioning device (1) in a vise, swivel at hexagon (4) in an anti-clockwise direction, pull out drift (8) and slacken tensioning device (1).
INSTALLATION IMPORTANT The clamping device (1) can be mounted in both a locked and an unlocked condition.

  Only perform Operation steps 10 through 12 for removal/installation of guide pulleys (3)
10 Remove LH charge air duct When removing the upper guide pulley (3) on the left side of the engine AR09.41-P-8620GW
11 Remove screw/bolts for guide pulleys (3) TORQUE SPECIFICATION *BA13.25-P-1002-01Y
TORQUE SPECIFICATION *BA13.25-P-1005-01Y
12 Remove guide pulleys (3)
13 Install in the reverse order
BELT TENSIONING DEVICE

Number Designation Engine 157
BA13.25-P-1001-01Y Screw/bolt, poly-V belt tensioning device to timing case cover   Nm 20
BA13.25-P-1002-01Y Screw/bolt, guide pulley to carrier   Nm 70
BA13.25-P-1005-01Y Screw/bolt, guide pulley to coolant pump/oil filter/timing case cover M8 Nm 35
M10 Nm 35
