Remove/install mechanical stop lamp switch - AR42.10-P-0040GW

MODEL 463 as of model year 2013/model refinement package 2012

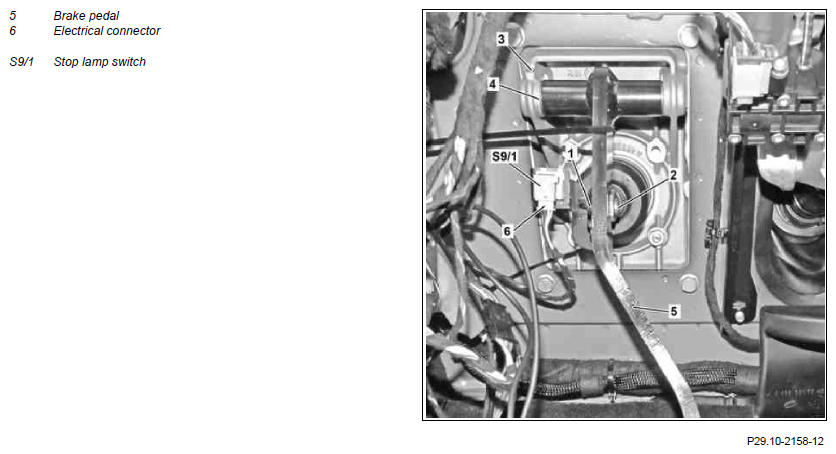

Fig 1: Mechanical Stop Lamp Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Remove cover below left of instrument panel		AR68.10-P-1500GW
3	Disconnect electrical connector (6)
4	Push catch on brake light switch (S9/1) and detach brake light switch (S9/1)	Fully depress brake pedal (5) and latch brake light switch (S9/1) into bracket. Release brake pedal (5) and pull back with little force.
5	Install in the reverse order
6	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
