Remove/install front grille - AR88.00-P-2115GW

MODEL 463 as of model year 2013/model refinement package 2012

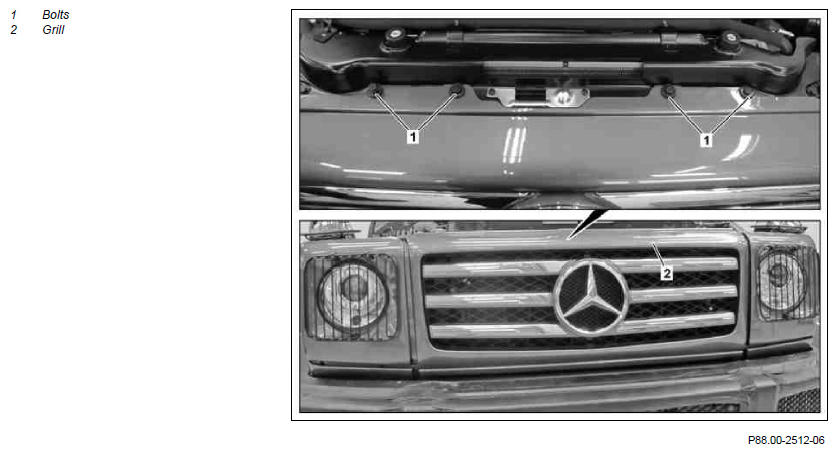

Fig 1: Front Grille Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove headlamp trim		AR88.00-P-2100GW
2	Remove bolt (1)
3	Tilt radiator grille (2) toward front	Slide radiator grille (2) to side, lift out of retaining lug toward front and then unhook opposite side. Ensure that the retaining lugs are positioned in the guides of the headlamp paneling on both sides.
4	Pull hose out of radiator grille (2)
5	Remove radiator grille (2)
6	Install in the reverse order
