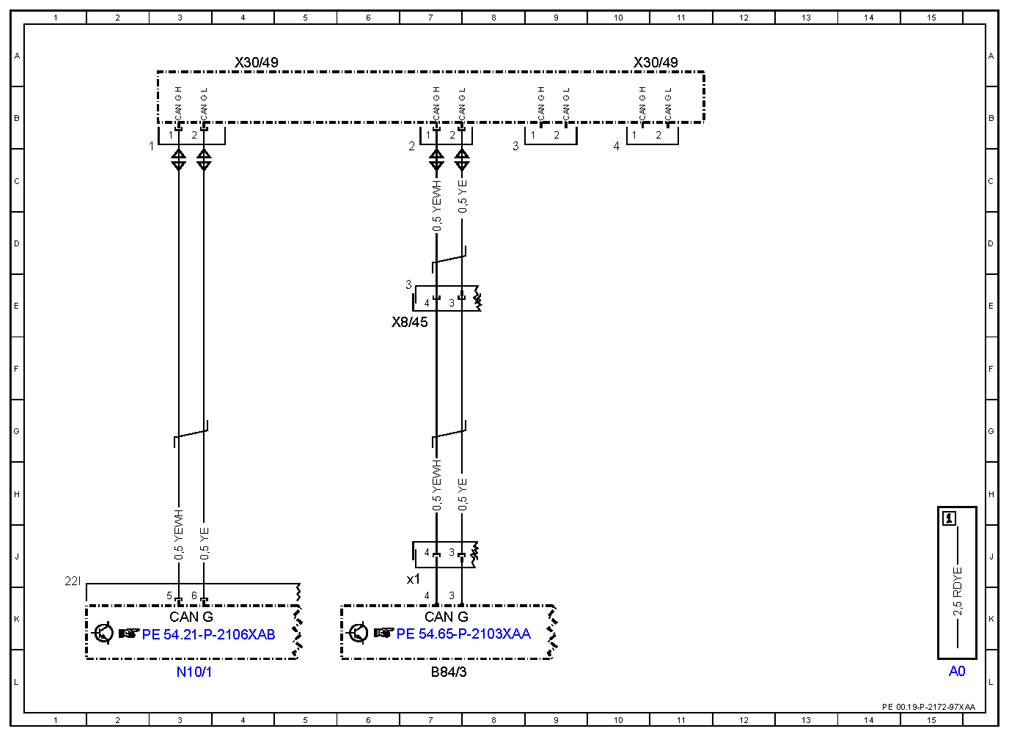

Wiring diagram for front end CAN - PE00.19-P-2172-97XAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| B84/3 | Backup camera | 7L |
| B84/3x1 | Backup camera electrical connector | 7J |
| CAN G | Front end CAN | 3K |
| CAN G | Front end CAN | 7K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| X30/49 | Front end CAN (CAN G) potential distributor electrical connector | 4A |
| X30/49 | Front end CAN (CAN G) potential distributor electrical connector | 10A |
| X8/45 | Left vehicle interior and trunk lid/liftgate electrical connector | 7E |
