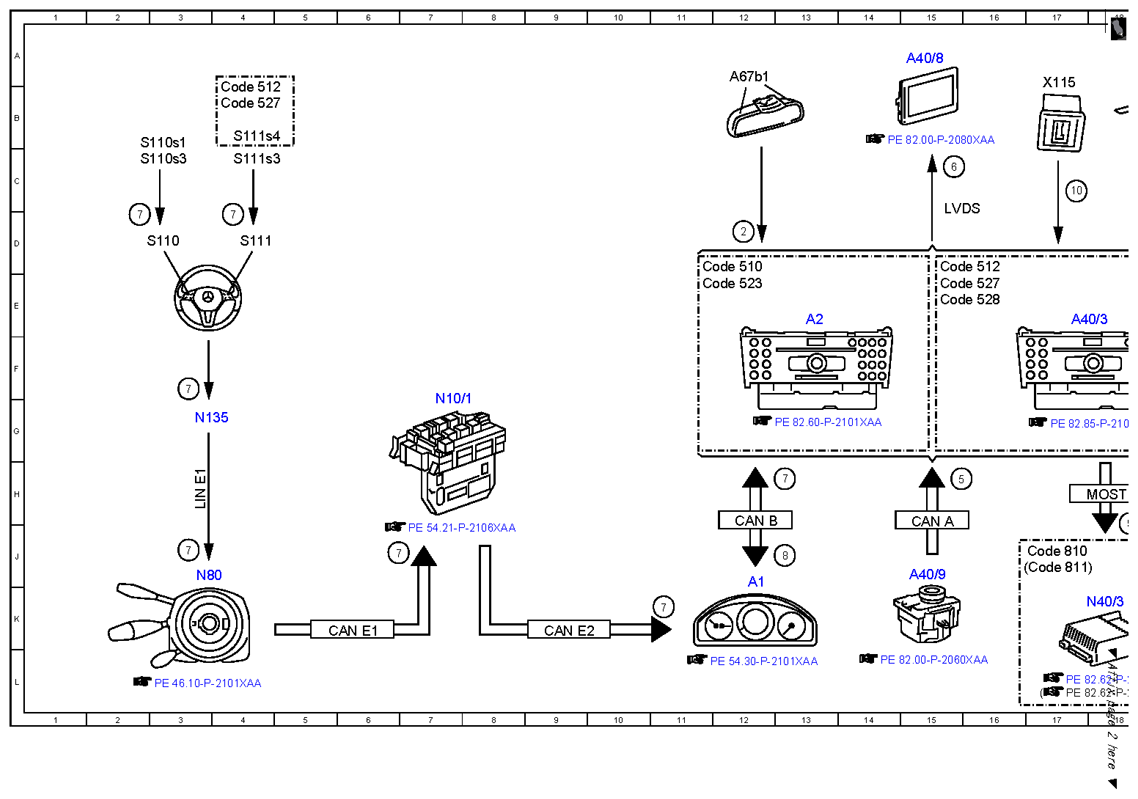

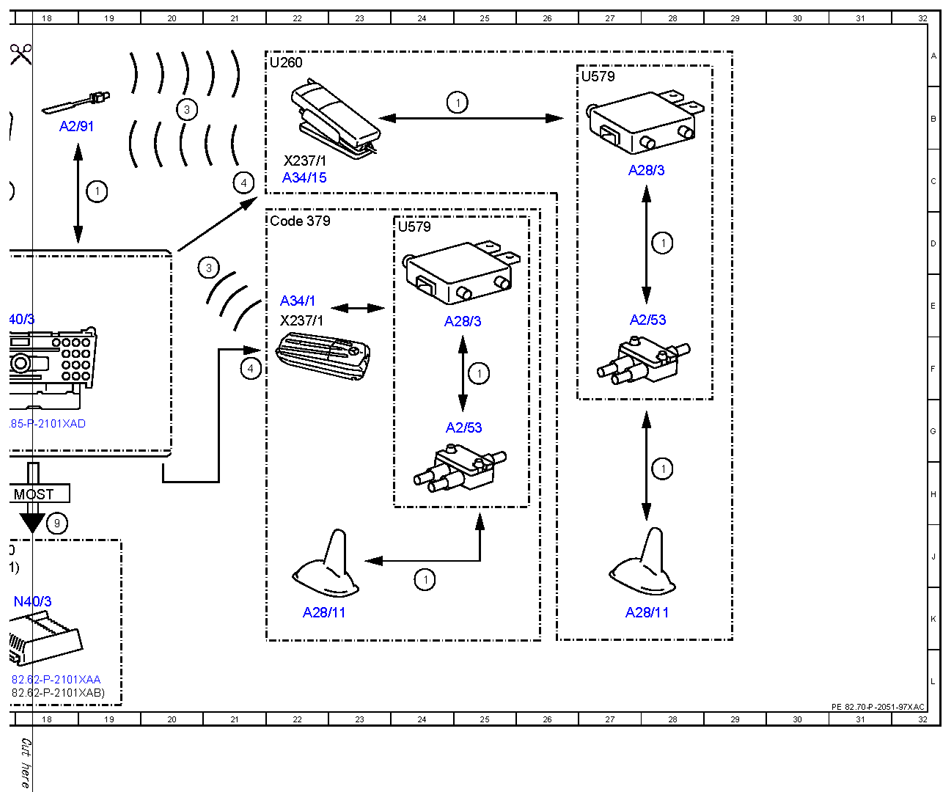

| 1 |
Telephone, signal |
28H |
| 1 |
Telephone, signal |
19C |
| 1 |
Telephone, signal |
28D |
| 1 |
Telephone, signal |
25B |
| 1 |
Telephone, signal |
25F |
| 1 |
Telephone, signal |
24J |
| 10 |
Address data, signal |
17C |
| 2 |
Voice input, signal |
12D |
| 3 |
Bluetooth, signal |
20B |
| 3 |
Bluetooth, signal |
21D |
| 4 |
Switch-on request, signal |
21C |
| 4 |
Switch-on request, signal |
21F |
| 5 |
Audio/COMAND controller, request |
15H |
| 6 |
Audio/COMAND display, signal |
15C |
| 7 |
Multifunction steering wheel button group, signal |
3J |
| 7 |
Multifunction steering wheel button group, signal |
3F |
| 7 |
Multifunction steering wheel button group, signal |
13H |
| 7 |
Multifunction steering wheel button group, signal |
2D |
| 7 |
Multifunction steering wheel button group, signal |
4D |
| 7 |
Multifunction steering wheel button group, signal |
6J |
| 7 |
Multifunction steering wheel button group, signal |
11K |
| 8 |
Instrument cluster, message |
13J |
| 9 |
Sound system amplifier, actuation |
18J |
| A1 |
Instrument cluster |
12J |
| A2 |
Radio |
13E |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
27E |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
25G |
| A2/91 |
Bluetooth antenna |
18B |
| A28/11 |
Multifunction antenna |
27K |
| A28/11 |
Multifunction antenna |
22K |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
27C |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
24E |
| A34/1 |
Telephone module with Bluetooth® (SAP profile) |
22E |
| A34/15 |
Mobile phone holder |
22C |
| A40/3 |
COMAND control unit |
17E |
| A40/8 |
Audio/COMAND display |
15A |
| A40/9 |
Audio/COMAND control panel |
15J |
| A67b1 |
Hands-free system microphone |
12A |
| CAN A |
Telematics CAN |
15J |
| CAN B |
Interior CAN |
12J |
| CAN E1 |
Chassis CAN 1 |
6K |
| CAN E2 |
Chassis CAN 2 |
9K |
| Code 379 |
Telephone module with Bluetooth SAP |
22D |
| Code 510 |
Audio 20 with CD changer |
11D |
| Code 512 |
COMAND APS with DVD changer |
15D |
| Code 512 |
COMAND APS with DVD changer |
4B |
| Code 523 |
Audio 20 radio |
11E |
| Code 527 |
COMAND APS (with navigation) |
15E |
| Code 527 |
COMAND APS (with navigation) |
4B |
| Code 528 |
COMAND with DVD changer |
15E |
| Code 810 |
Sound system |
17J |
| Code 811 |
Extended sound system |
16J |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
15D |
| MOST |
Media Oriented System Transport |
18H |
| N10/1 |
Front SAM control unit with fuse and relay module |
7G |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
18K |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S110s1 |
Scroll forward/back button |
2B |
| S110s3 |
System selection button |
2C |
| S111 |
Right multifunction steering wheel button group |
4D |
| S111s3 |
Accept/terminate phone call button |
4C |
| S111s4 |
Voice control system ON button |
4B |
| U260 |
Valid for comfort telephony |
22A |
| U579 |
Valid for stationary heater |
27A |
| U579 |
Valid for stationary heater |
24D |
| X115 |
USB electrical connector |
17B |
| X237/1 |
Mobile phone contact plate |
22C |
| X237/1 |
Mobile phone contact plate |
22E |
