Night View Assist control unit, component description - GF54.30-P-6200FQ
MODEL 218 with CODE (610) Night vision assist
Location

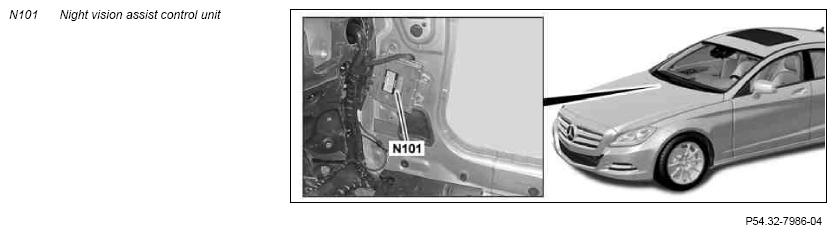

The Night View Assist control unit is located on the right A-pillar, behind the trim in the footwell.
Tasks
The Night View Assist control unit performs the following tasks:
- Reading in of signals
- Evaluation of input factors
- Output of signals
- Actuating components
Reading in of signals
The input factors are read in via the following connections:
- Low Voltage Differential Signal (LVDS)
- Chassis CAN (CAN E)
Low voltage differential signal
The following signals are read in through the LVDS:
- Picture data for Night View Assist camera (B84/2)
Chassis CAN
The Night View Assist control unit reads in the signals over the chassis CAN.
The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Output of signals
The Night View Assist control unit sends the picture data over an analog video interface to the COMAND controller unit (A40/3).
From the COMAND control unit the video data are sent over an LVDS line to the Audio/COMAND display (A40/8).
Component actuation
Components are actuated with the following connection:
- Chassis CAN
Chassis CAN
The Night View Assist control unit sends the signals over the chassis CAN.
The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).
| Wiring diagram, Night View Assist control unit | PE54.30-P-2103-97XAA |
