Component description for rear SAM control unit with fuse and relay module - GF54.21-P-6030FQ
MODEL 218
Location

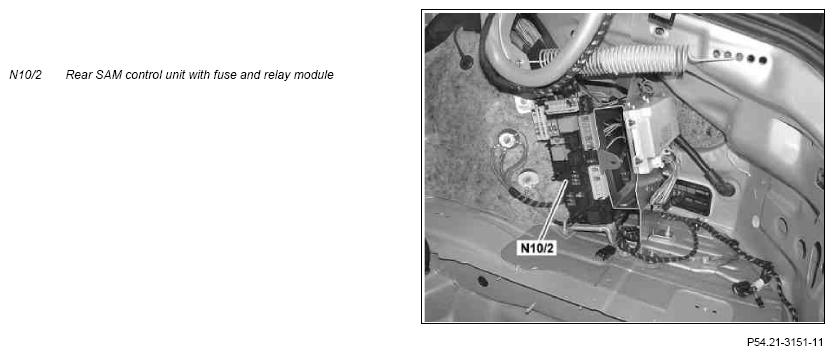

The rear SAM control unit is located at the right rear in the trunk.
Task
The rear SAM control unit has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Controlling functions
- Actuation of components
The fuse and relay module of the rear SAM control unit supplies various systems and control units with power through limit switches to match the function sequence.
The following tasks are the responsibility of the fuse and relay module:
- Voltage supply to components
- Power supply and relay switching
- Switching consumers using relays
Detailed information is available in the "Fuse and relay box, as-built configuration" function description.
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line
- LIN
- Interior CAN (CAN B)
Direct line
The signals from the following components are read via direct lines:
- Left rear door rotary tumbler switch (A85/3s1)
- Right rear door rotary tumbler switch (A85/4s1)
- Left fuel tank fill level indicator sensor (B4/1)
- Right fuel tank fuel level indicator fill level sensor (B4/2)
- Trunk lid/liftgate rotary tumbler switch (M14/7s1)
- Tank cap central locking actuator (M14/10)
- Trunk lid/liftgate lock element (M14/31) (model 218.9)
- Hall sensors in rear window roller sun blind motor (M24) (model 218.3 with CODE 540 (Electric roller blind for rear window))
- Left load compartment cover Hall sensor (M50/1b1) (model 218.9)
- Seat adjustment motor for left rear head restraint(M53/1)
- Seat adjustment motor for right rear head restraint (M53/2)
- Right front seat ventilation blower regulator (N29/6) (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Left front seat ventilation blower regulator (N29/5) (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Liftgate inside door handle (S15/2) (model 218.9)
- Left rear backrest inclination switch (S54/5) (model 218.3 with CODE 287 (Through-loading feature) or model 218.9)
- Right rear backrest inclination switch (S54/6) (model 218.3 with CODE 287 (Through-loading feature) or model 218.9)
- Left rear backrest lock switch (S54/7) (model 218.3 with CODE 287 (Through-loading feature) or model 218.9)
- Right rear backrest lock switch (S54/8) (model 218.3 with CODE 287 (Through-loading feature) or model 218.9)
- Trunk lid/liftgate KEYLESS-GO button (S62/21) (with CODE 889 (Keyless-Go))
- Trunk lid/liftgate control button (S62/36) (model 218.3 with CODE 881 (Remote trunk closing (RTC)), model 218.9)
- Left engine hood contact switch (S62/43) (with CODE 551 (Antitheft alarm system (ATA)) or with CODE B03 (ECO start/stop function))
- Left rear seat belt buckle switch (S68/5)
- Right rear seat belt buckle switch (S68/6)
- Trunk lid/liftgate contact switch (S88/6) (with CODE 887 (Valet Parking))
- Trunk lid/liftgate external operation switch (S88/8)
- Trunk lid emergency opening switch (S88/10) (model 218.3 with CODE 494 (USA version))
LIN
The signals from the following components are read in via LIN:
- Battery sensor (B95) (via on-board electrical system LIN (LIN B7))
- Alarm siren (H3/1) (with CODE 882 (Interior monitoring (only with ATA))) (via rear SAM LIN (LIN B4))
- Interior protection and tow-away protection control unit (N26/6) (with CODE 882 (Interior monitoring (only with ATA))) (via rear SAM LIN (LIN B4))
Interior CAN
The signals are read in by the rear SAM control unit over the interior CAN.
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
Evaluation of input factors
The input factors are evaluated by the microprocessor and the corresponding components are actuated.
Controlling functions
The rear SAM control unit controls the following functions:
- Battery state recognition
- Exterior lights in rear end
- Heated rear window
- Central locking in rear area
- Seat heater (with CODE 873 (Seat heater for left and right front seat) or with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Electric seat ventilation (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Anti-theft alarm system (ATA) (with CODE 551 (Anti-theft alarm system (ATA)))
- Trunk lid/liftgate control (model 218.3 with CODE 881 (Remote trunk closing (RTC)) or model 218.9)
Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- LIN
- Interior CAN
Direct line
The following components are actuated via direct lines:
- Left rear lamp unit (E3)
- Rear fog lamp (E3/6) (without CODE 460 Canada version) and without CODE 494 (USA version))
- Right rear lamp unit (E4)
- Right luggage compartment lamp (E18/4)
- Left trunk lamp (E185)
- Left license plate lamp (E19/1)
- Right license plate lamp (E19/2)
- Center brake lamp (E21)
- Trunk lid/liftgate ambient lamp (E40)
- Liftgate wiper motor (M6/4) (model 218.9)
- Trunk lid/liftgate central locking motor (M14/7)
- Tank cap central locking actuator (M14/10)
- Left front seat cushion seat ventilation motors (M18/9) (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Left front backrest seat ventilation motors (M18/10) (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Right front seat cushion seat ventilation motors (M18/11) (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Right front backrest seat ventilation motors (M18/12) (with CODE 401 (Front comfort seats, incl. seat heating and seat ventilation))
- Seat adjustment motor for left rear head restraint(M53/1)
- Seat adjustment motor for right rear head restraint (M53/2)
- Rear window heater (R1)
- Left front seat cushion heater pad (R13/1) (with CODE 873 (Seat heater for left and right front seat))
- Left front backrest heater pad (R13/2) (with CODE 873 (Seat heater for left and right front seat))
- Right front seat cushion heater pad (R13/3) (with CODE 873 (Seat heater for left and right front seat))
- Right front backrest heater pad (R13/4) (with CODE 873 (Seat heater for left and right front seat))
- Trunk lid emergency opening switch illumination (S88/10) (model 218.3 with CODE 494 (USA version))
LIN
The alarm siren (with CODE 882 (Interior monitoring (only with ATA))) is actuated via the rear SAM LIN.
Interior CAN
The signals are sent over the interior CAN by the rear SAM control unit.
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
| Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) | MODEL 218 Specification 1 | PE54.21-P-2108-97XAA |
| MODEL 218 Specification 2 | PE54.21-P-2108-97XAB | |
| MODEL 218 Specification 3 | PE54.21-P-2108-97XAC | |
| MODEL 218 Specification 4 | PE54.21-P-2108-97XAD | |
| MODEL 218 Specification 5 | PE54.21-P-2108-97XAE | |
| MODEL 218 Specification 6 | PE54.21-P-2108-97XAF | |
| MODEL 218 Specification 7 | PE54.21-P-2108-97XAG | |
| MODEL 218 Specification 8 | PE54.21-P-2108-97XAH |
