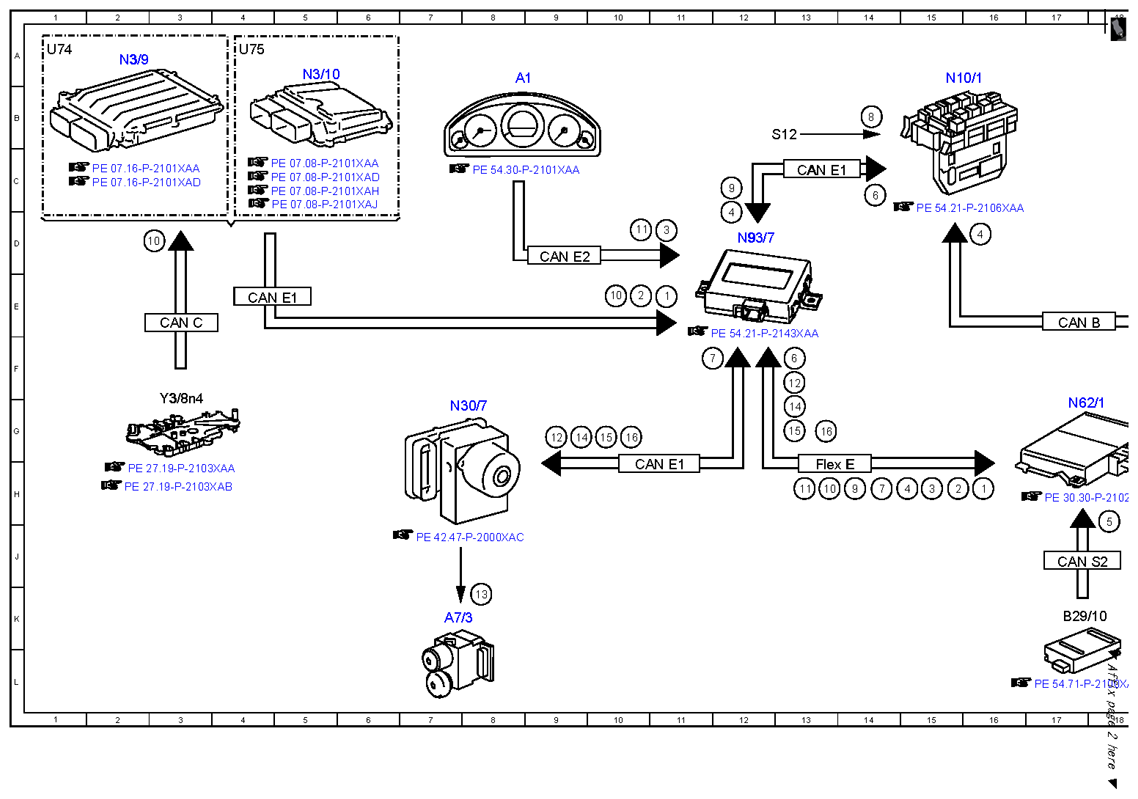

| 1 |
Engine running, signal |
16H |
| 1 |
Engine running, signal |
11E |
| 10 |
Gear range, status |
3D |
| 10 |
Gear range, status |
10E |
| 10 |
Gear range, status |
13H |
| 11 |
Vehicle speed, signal |
10D |
| 11 |
Vehicle speed, signal |
13H |
| 12 |
Service brake braking torque, request |
9G |
| 12 |
Service brake braking torque, request |
13F |
| 13 |
Traction system hydraulic unit, actuation |
8K |
| 14 |
Relative speed of object behind, signal |
10G |
| 14 |
Relative speed of object behind, signal |
13G |
| 15 |
Time until rear collision, signal |
10G |
| 15 |
Time until rear collision, signal |
13G |
| 16 |
PRE-SAFE® triggering recommendation, signal |
11G |
| 16 |
PRE-SAFE® triggering recommendation, signal |
14G |
| 2 |
Drivetrain operational, signal |
15H |
| 2 |
Drivetrain operational, signal |
10E |
| 3 |
PRE-SAFE® rear, status |
11D |
| 3 |
PRE-SAFE® rear, status |
15H |
| 4 |
Trailer recognition, status |
16D |
| 4 |
Trailer recognition, status |
12D |
| 4 |
Trailer recognition, status |
15H |
| 5 |
Far range radar sensor, signal |
18J |
| 6 |
Collision-critical warning, status |
14C |
| 6 |
Collision-critical warning, status |
13F |
| 7 |
Service brake, status |
11F |
| 7 |
Service brake, status |
14H |
| 8 |
Parking brake indicator switch, status |
14B |
| 9 |
Parking brake, status |
12C |
| 9 |
Parking brake, status |
14H |
| A1 |
Instrument cluster |
8A |
| A7/3 |
Traction system hydraulic unit |
7K |
| B29/10 |
Center rear bumper radar sensor |
17K |
| CAN B |
Interior CAN |
17E |
| CAN C |
Drive train CAN |
3E |
| CAN E1 |
Chassis CAN 1 |
13C |
| CAN E1 |
Chassis CAN 1 |
10H |
| CAN E1 |
Chassis CAN 1 |
4E |
| CAN E2 |
Chassis CAN 2 |
9D |
| CAN S2 |
Radar CAN 2 |
17J |

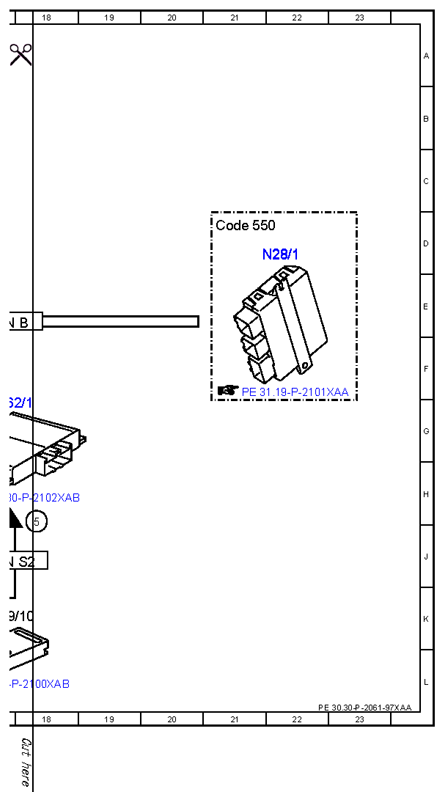

| Code 550 |
Trailer hitch |
21D |
| Flex E |
Chassis FlexRay |
13H |
| N10/1 |
Front SAM control unit with fuse and relay module |
15A |
| N28/1 |
Trailer recognition control unit |
21D |
| N3/10 |
ME-SFI [ME] control unit |
5A |
| N3/9 |
CDI control unit |
2A |
| N30/7 |
Premium Electronic Stability Program control unit |
7G |
| N62/1 |
Radar sensors control unit |
17G |
| N93/7 |
Chassis gateway control unit |
12D |
| S12 |
Parking brake indicator switch |
13B |
| U74 |
Valid for diesel engines |
1A |
| U75 |
Valid for gasoline engines |
4A |
| Y3/8n4 |
Fully integrated transmission control unit |
3G |
