Remove/install rear seat cushion - AR91.12-P-1020EL

MODEL 218.3

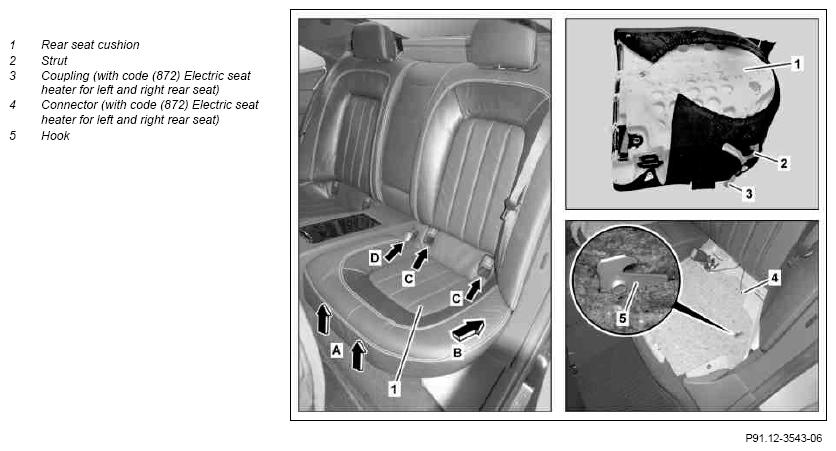

Shown on left rear seat cushion (1)

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Shown On Left Rear Seat Cushion

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move corresponding front seat forwards
2	Pull rear seat cushion (1) upwards (arrows A) and out of the guide sleeves
3	Push rear seat cushion (1) on outer side to rear (arrow B) and lift	Unhook the strut (2) in the rear seat cushion (1) from the hook (5).
4	Detach connector (4) from coupling (3)	For vehicles with code (872) Electrically heated left and right rear seats
5	Remove rear seat cushion (1)	Insert rear seat cushion (1) into ISOFix child seat attachment (arrows C) and seat belt buckle for rear seat (arrow D)
6	Install in the reverse order
