Remove and install center air vent - AR83.10-P-4503EL

MODEL 218

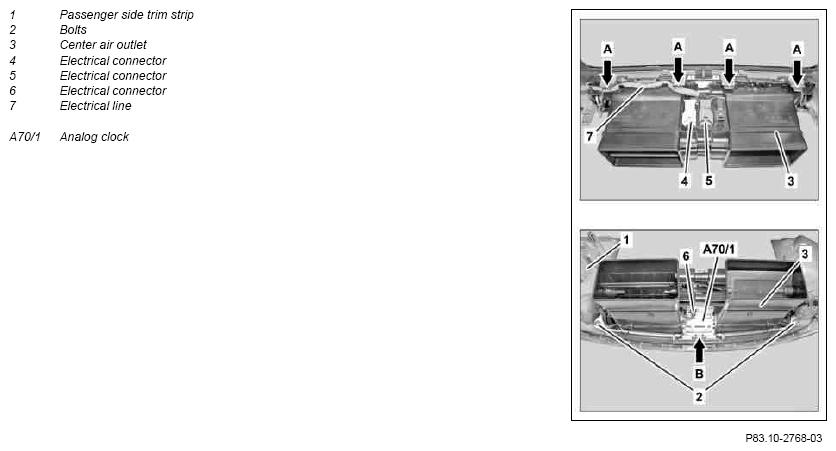

Fig 1: Identifying Center Air Vent Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trim strip on passenger-side (1)		AR68.10-P-1180EL
2	Remove bolts (2)
3	Unhook electrical line (7) from center air vent (3)
4	Unclip center air vent (3) (arrows A and B) and remove from trim strip on passenger-side (1)	Unclip first from upper clips (arrow A).
5	Unclip electrical connectors (4, 5) from center air vent (3)
6	Detach electrical connectors (6) from analog clock (A70/1)
7	Route electrical line (7) out of center air vent (3)
8	Unclip analog clock (A70/1) from center air vent (3)	When replacing the center air vent (3) or analog clock (A70/1).
9	Install in the reverse order
