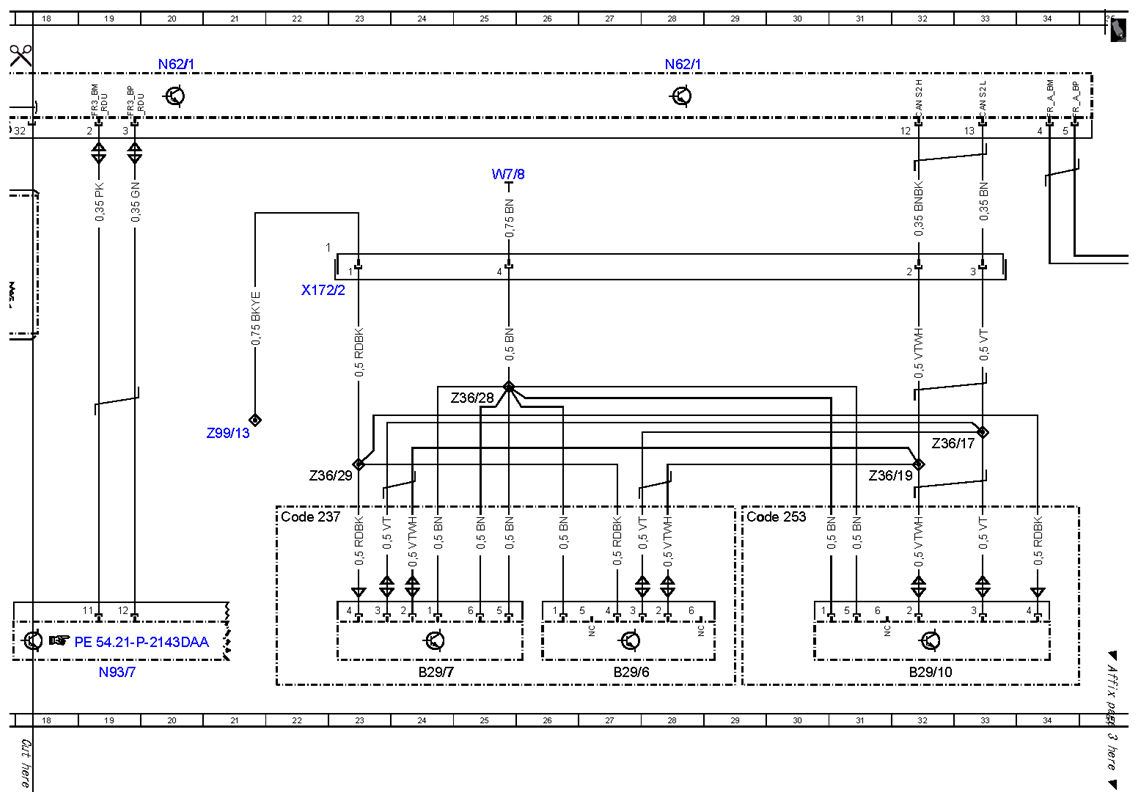

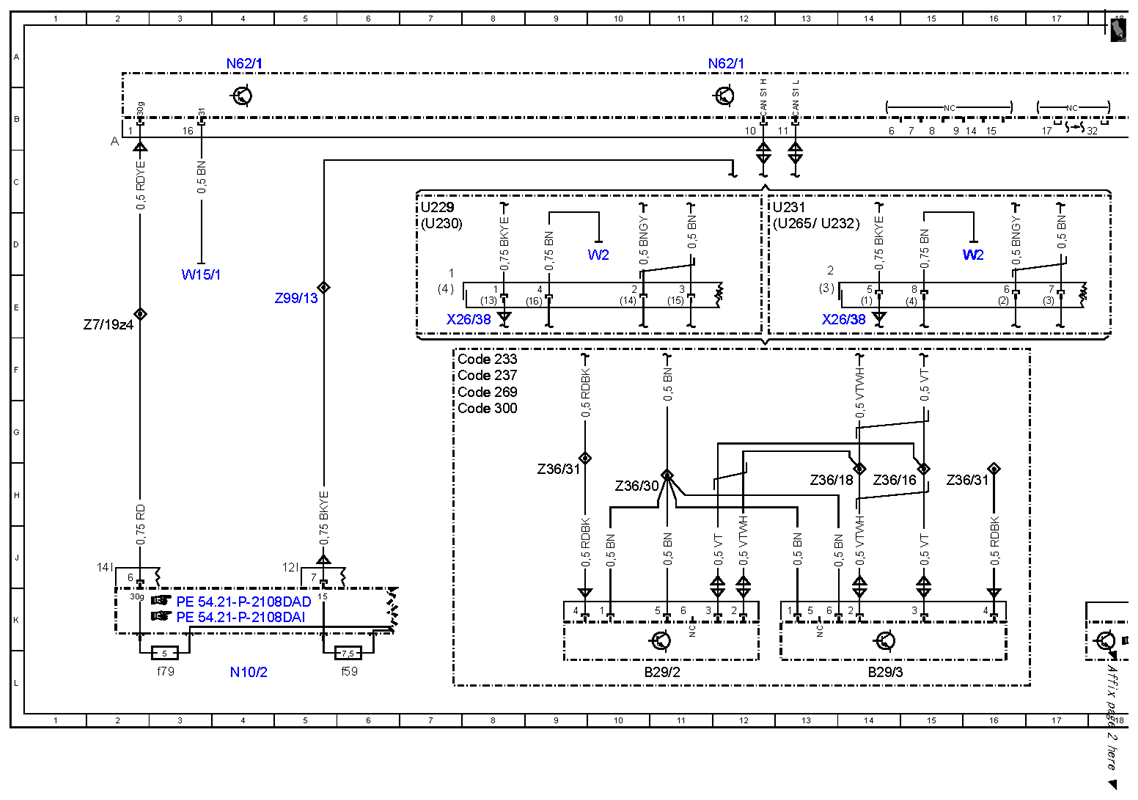

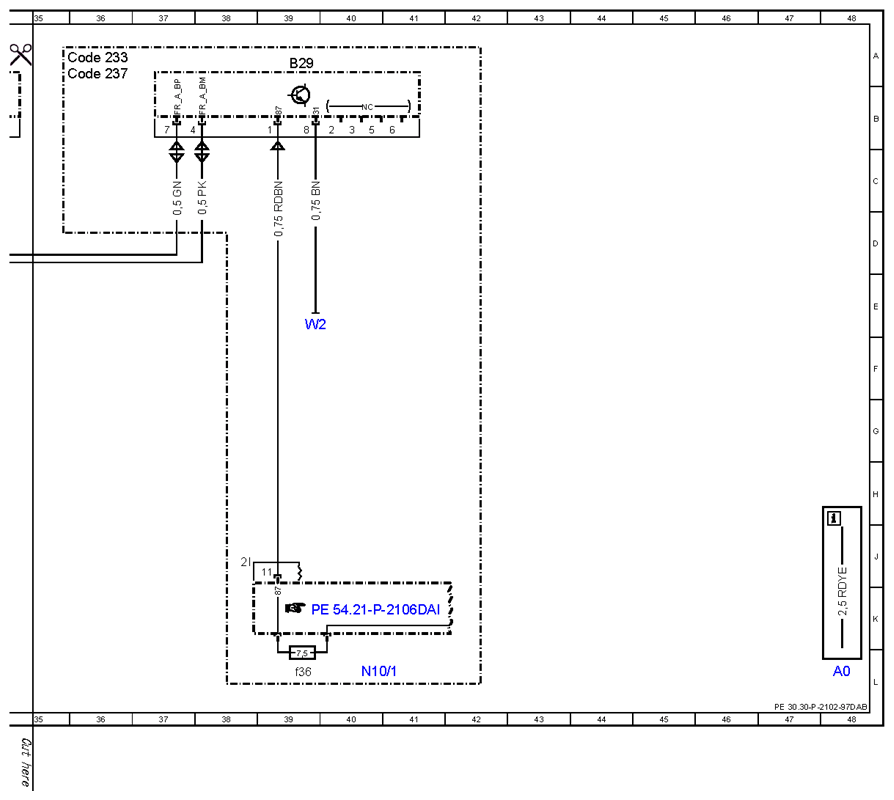

Wiring diagram for the radar sensors control unit - PE30.30-P-2102-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 274, 276, 278, 642, 651 in MODEL 212 as of model year 2014 Control unit N62/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B29 | Front long-range radar sensor | 39A |
| B29/10 | Center rear bumper radar sensor | 32L |
| B29/2 | DISTRONIC sensor (DTR) / left front bumper | 11L |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 14L |
| B29/6 | Left rear bumper radar sensor | 27L |
| B29/7 | Right rear bumper radar sensor | 24L |
| Code 233 | DISTRONIC PLUS | 7F |
| Code 233 | DISTRONIC PLUS | 35A |
| Code 237 | Active Blind Spot Assist | 7F |
| Code 237 | Active Blind Spot Assist | 22H |
| Code 237 | Active Blind Spot Assist | 35A |
| Code 253 | Rear-end collision warning and protection system | 29H |
| Code 269 | Brake Assist System PLUS, cross-traffic (BAS+Q) | 7F |
| Code 300 | Collision mitigation (CMS) | 7G |
| N10/1 | Front SAM control unit with fuse and relay module | 40L |
| N10/1f36 | Fuse 36 | 39L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2f59 | Fuse 59 | 6L |
| N10/2f79 | Fuse 79 | 3L |
| N62/1 | Radar sensors control unit | 4A |
| N62/1 | Radar sensors control unit | 12A |
| N62/1 | Radar sensors control unit | 20A |
| N62/1 | Radar sensors control unit | 28A |
| N93/7 | Chassis gateway control unit | 19L |
| U229 | Valid for short range radar with active Park Assist without pedestrian protection | 7C |
| U230 | Valid for short range radar with active Park Assist and pedestrian protection | 7D |
| U231 | Valid for short range radar with pedestrian protection without active Park Assist | 12C |
| U232 | Valid for short range radar without active Park Assist | 13D |
| U265 | Not valid for pedestrian protection | 13D |
| W15/1 | Right footwell ground point | 3E |
| W2 | Right front ground point at lamp unit | 10D |
| W2 | Right front ground point at lamp unit | 16D |
| W2 | Right front ground point at lamp unit | 39E |
| W7/8 | Right wheelhouse trunk ground point | 25C |
| X172/2 | Rear bumper radar sensors electrical connector | 22E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 8E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 14E |
| Z36/16 | Front sensor CAN connector sleeve | 14H |
| Z36/17 | Rear sensor CAN connector sleeve | 33G |
| Z36/18 | Front sensor CAN connector sleeve | 13H |
| Z36/19 | Rear sensor CAN connector sleeve | 31H |
| Z36/28 | Rear radar sensors ground line connector sleeve | 25G |
| Z36/29 | Rear radar sensors positive line connector sleeve | 23H |
| Z36/30 | Short range radar front sensor ground connector sleeve | 10H |
| Z36/31 | Short range radar front sensor voltage connector sleeve | 9H |
| Z36/31 | Short range radar front sensor voltage connector sleeve | 16H |
| Z7/19z4 | Circuit 30 (fused) connector sleeve | 2E |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 5E |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 21G |
