Adjusting headlamps when driving abroad - AH82.10-P-0001-01A

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 164, 169, 171, 172, 176, 203, 204, 207, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 242, 245, 246, 251 Headlamp with projection system (for halogen, Xenon or LED headlamp)

Headlamp adjustment is generally done mechanically.

Pressing a lever changes the position of a movable blind. The movable blind then covers up the part of the light beam which - through appropriate projection - is responsible for illuminating the edge of the roadway.

The lever is located next to the bulb and can be accessed after removing the cover on the headlamp housing.

The lever's location, version and actuation are dependent on the manufacturer of the headlamp and the model.

Observe the safety specifications pertaining to handling high-voltage parts on xenon and bi-xenon headlamps.

The setting is to be checked with a headlamp aimer following manual adjustment.

On MODEL 211 with an Intelligent Light System the headlamps are adjusted electronically using Star Diagnosis.

On MODEL 216 the headlamps are adjusted electronically using Star Diagnosis.

On MODEL 172 and 204.9 with halogen headlamps, the headlamps are adjusted using the headlamp range controller. The headlamp setting must be checked before adjustment using a headlamp aimer.

On MODEL 204.0/2/3 with Intelligent Light System, the headlamps are adjusted in the on-board computer via the instrument cluster.

On MODEL 204.0/2 as of AEJ 11/1 with halogen headlamps headlamp adjustment is not required.

On MODEL 204.3 with halogen headlamps, headlamp adjustment is not necessary.

On MODEL 207 and MODEL 212 up to 30.11.09 (AEJ 09/2) with bi-xenon headlamps the headlamps are electronically adjusted using Star Diagnosis.

On MODEL 172, 207 and MODEL 212 as of 1.12.09 (AEJ 09/2) with bi-xenon headlamps, adjustment of the headlamps occurs in the on-board computer via the instrument cluster.

On MODEL 207 and MODEL 212 with static LED headlamps, headlamp adjustment is not necessary.

On MODEL 207 and MODEL 212 as of model year 2014, with Intelligent Light System, the headlamps are adjusted in the on-board computer using the instrument cluster.

On MODEL 218 with full LED headlamps the headlamps are adjusted in the on-board computer using the instrument cluster.

On MODEL 117, 156, 242, 246 with halogen headlamps, headlamp adjustment is not necessary.

On MODEL 176 with halogen headlamps an adhesive label is attached to the lens.

On MODEL 117, 156, 176, 242, 246 with Intelligent Light System the headlamps are adjusted in the on-board computer using the instrument cluster.

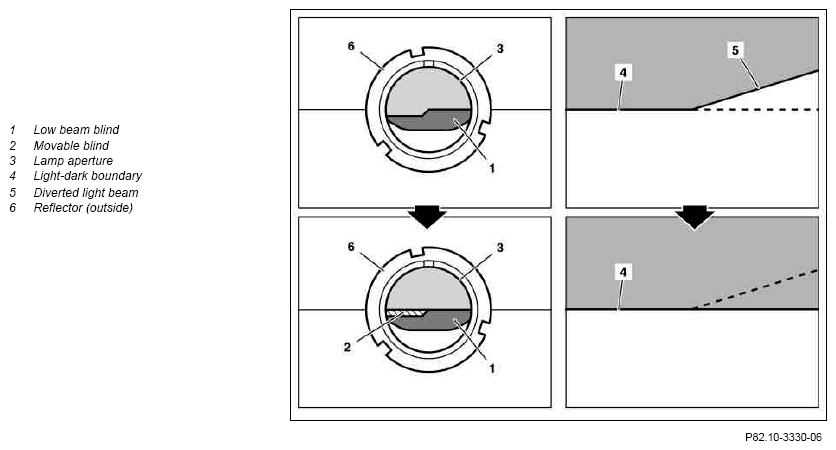

Changing the light beam after adjusting the movable blind (2) (view from behind through the lamp aperture (3)).

The overview shows the situation for right-hand traffic.

Fig 1: Identifying Headlamp Components

Courtesy of MERCEDES-BENZ USA

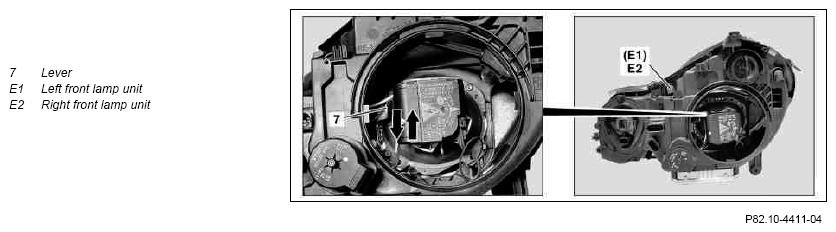

Model 164 with halogen headlamps

Fig 2: Identifying Halogen Headlamps Components (Model 164)

Courtesy of MERCEDES-BENZ USA

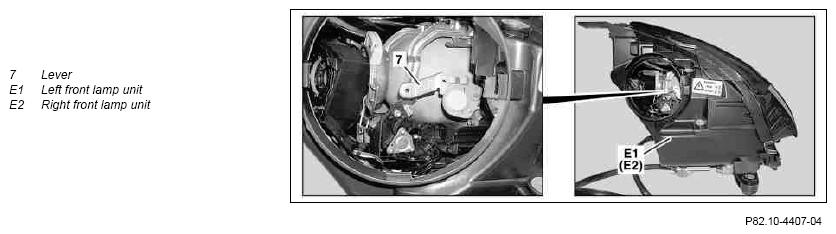

Model 164 with xenon headlamps

Fig 3: Identifying Xenon Headlamps Components (Model 164)

Courtesy of MERCEDES-BENZ USA

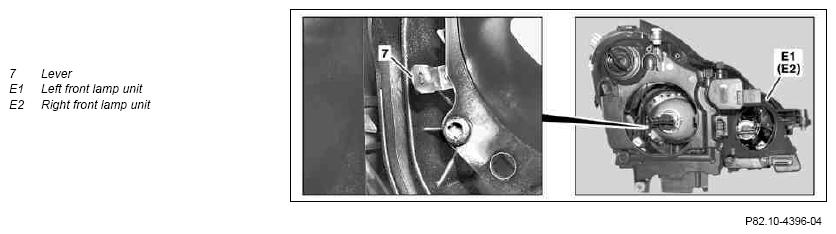

Model 169 with halogen headlamps

Fig 4: Identifying Halogen Headlamps Components (Model 169)

Courtesy of MERCEDES-BENZ USA

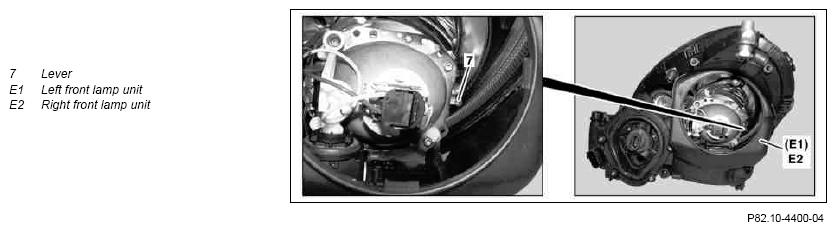

Model 169 with xenon headlamps

Fig 5: Identifying Xenon Headlamps Components (Model 169)

Courtesy of MERCEDES-BENZ USA

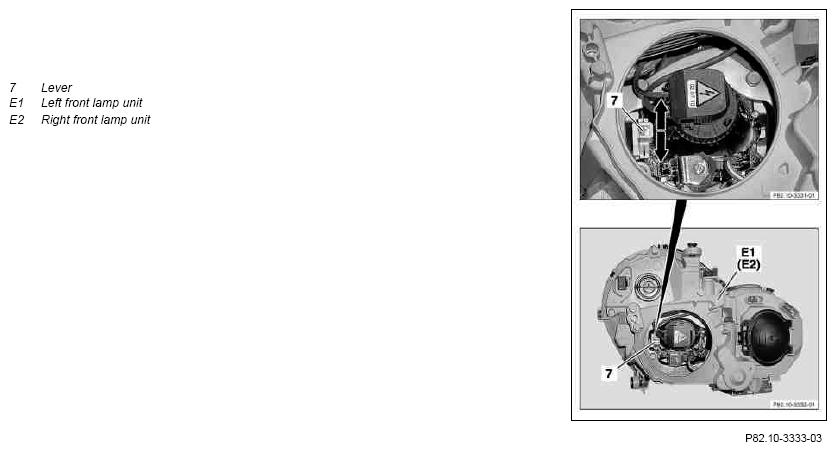

Model 171 with halogen headlamps

Fig 6: Identifying Halogen Headlamps Components (Model 171)

Courtesy of MERCEDES-BENZ USA

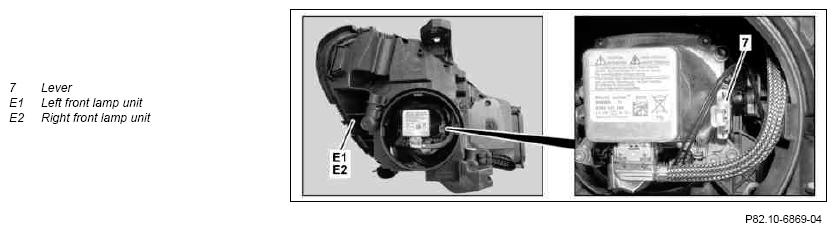

Model 171 with xenon headlamps

Fig 7: Identifying Xenon Headlamps Components (Model 171)

Courtesy of MERCEDES-BENZ USA

Model 172 with halogen headlamps

The headlamps are adjusted using the headlamp range controller. Procedure:

With normal load in vehicle, turn the headlamp range controller to position 1.

Turn headlamp range control to position 0 after returning to the country in which the car is registered.

With high load in vehicle, turn the headlamp range controller to position 2.

After unloading the vehicle, turn the headlamp range controller back to position 1.

Model 172 with Intelligent Light System

Headlamp adjustment occurs in the on-board computer via the instrument cluster.

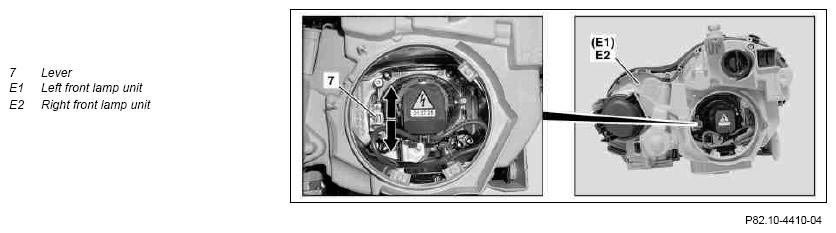

MODEL 203.0/2 with xenon headlamp, MODEL 203.7## #A with xenon headlamp, MODEL 203.7## #E up to 035817 with xenon headlamp

Fig 8: Identifying Xenon Headlamp Components (Model 203.0/2)

Courtesy of MERCEDES-BENZ USA

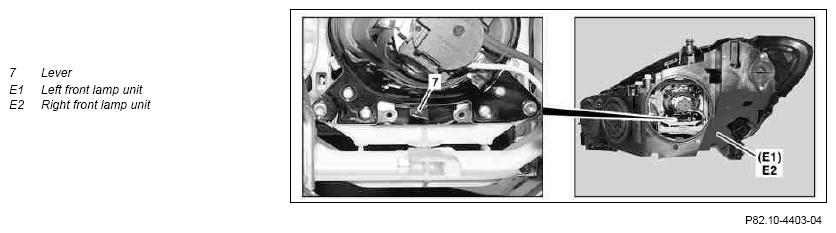

MODEL 204.0/2 up to AEJ 11/1 with halogen headlamp, MODEL 203.7## #E with CODE 809 (Model year 2009) with halogen headlamp

Fig 9: Identifying Halogen Headlamp Components (Model 204.0/2)

Courtesy of MERCEDES-BENZ USA

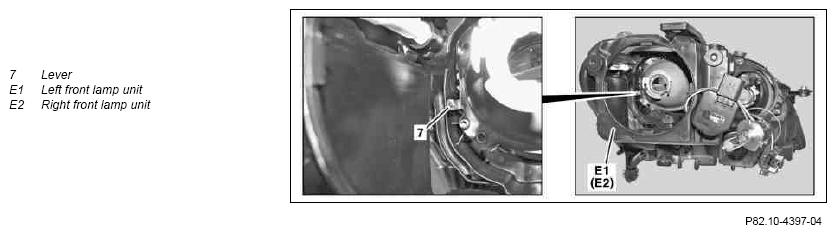

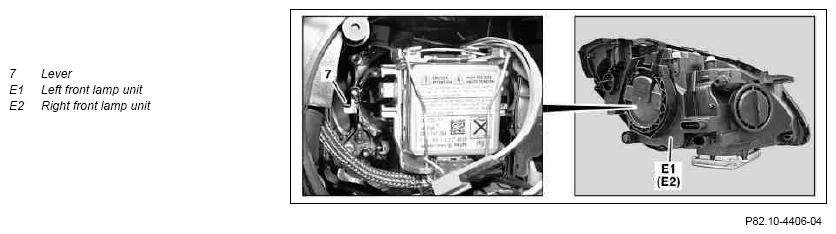

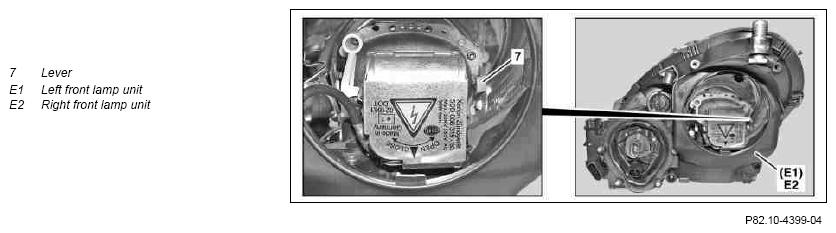

MODEL 204.0/2 up to AEJ 11/1 with bi-xenon headlamp, MODEL 204.9 with bi-xenon headlamp or with Intelligent Light System, MODEL 203.7## #E with CODE 809 (Model year 2009) with bi-xenon headlamp

Fig 10: Identifying Bi-Xenon Headlamp Components (Model 204.0/2)

Courtesy of MERCEDES-BENZ USA

MODEL 204.0/2/3 with Intelligent Light System

Headlamp adjustment occurs in the on-board computer via the instrument cluster.

Model 204.9 with halogen headlamps

The headlamps are adjusted using the headlamp range controller. Procedure:

With normal load in vehicle, turn the headlamp range controller to position 1.

Turn headlamp range control to position 0 after returning to the country in which the car is registered.

With high load in vehicle, turn the headlamp range controller to position 2.

After unloading the vehicle, turn the headlamp range controller back to position 1.

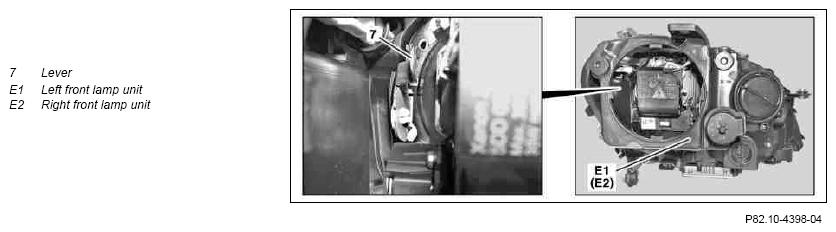

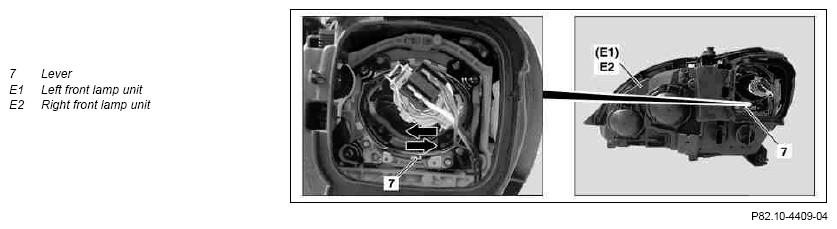

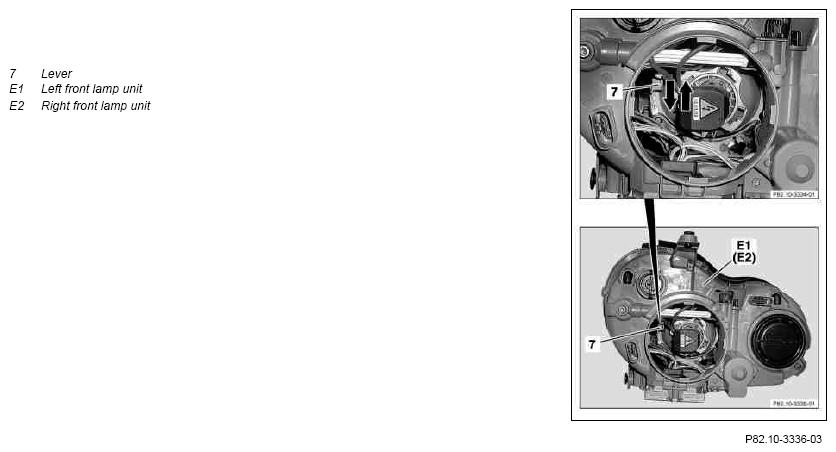

Model 209 with bi-xenon headlamps

Fig 11: Identifying Bi-Xenon Headlamps Components (Model 209)

Courtesy of MERCEDES-BENZ USA

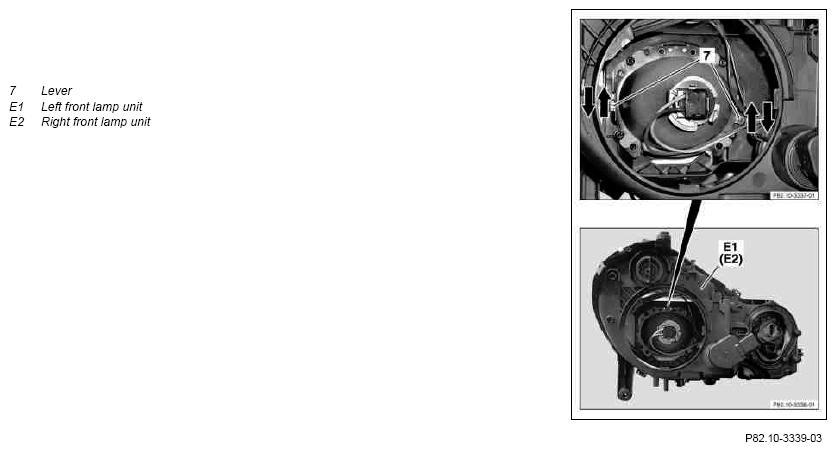

Model 209 with bi-xenon headlamps with integrated curve illumination

Fig 12: Identifying Bi-Xenon Headlamps Components (Model 209)

Courtesy of MERCEDES-BENZ USA

Only one of the two levers (7) needs to be adjusted. The other lever (7) moves automatically in sync.

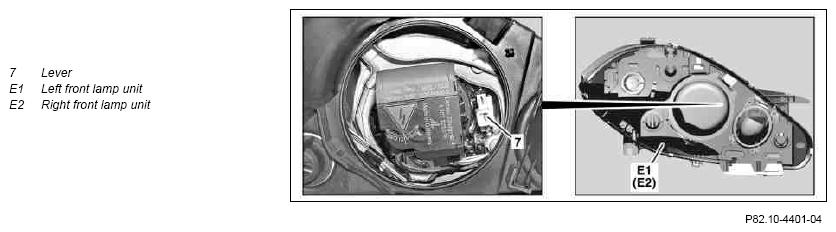

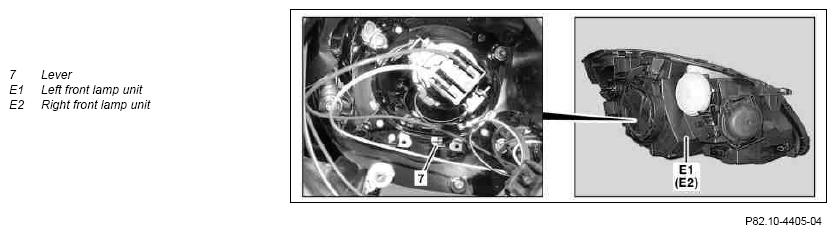

Model 211 with halogen headlamps

Fig 13: Identifying Halogen Headlamps Components (Model 211)

Courtesy of MERCEDES-BENZ USA

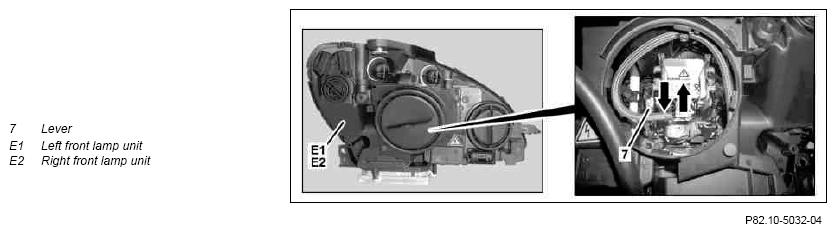

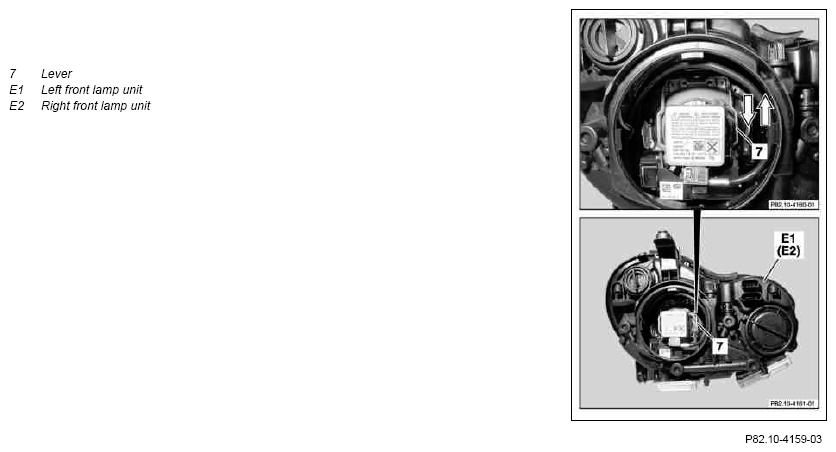

Model 211 with bi-xenon headlamps

Fig 14: Identifying Bi-Xenon Headlamps Components (Model 211)

Courtesy of MERCEDES-BENZ USA

Model 211 with Intelligent Light System

The headlamps are not adjusted manually. The headlamps are adjusted using STAR DIAGNOSIS.

Procedure:

Menu item "Control units"
Menu item "Body
Menu item "Left xenon headlamp control unit"
Menu item "Control unit adaptations"

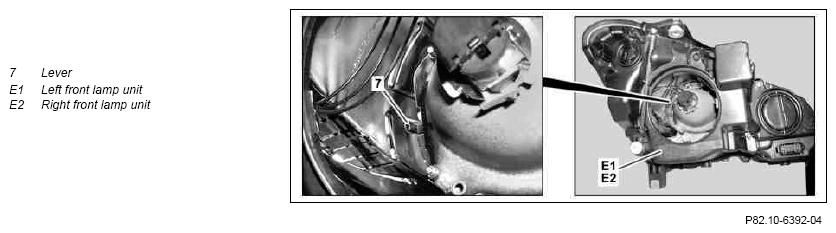

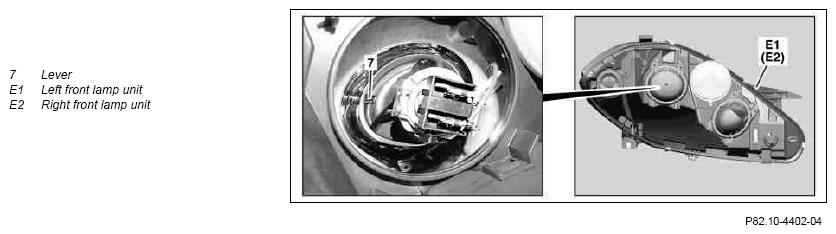

Model 207, 212 with halogen headlamps

Fig 15: Identifying Halogen Headlamps Components (Model 207, 212)

Courtesy of MERCEDES-BENZ USA

Model 207 and model 212 with bi-xenon headlamps up to 30.11.09 (AEJJ09/2)

The headlamps are adjusted using STAR DIAGNOSIS. Procedure:

Menu item "Control units"
Menu item "Body
Menu item "Left xenon headlamp control unit"
Menu item "Control unit adaptations"

Model 207 and model 212 with bi-xenon headlamps as of 1.12.09 (AEJJ09/2)

On vehicles with Intelligent Light System, the headlamps are adjusted in the on-board computer via the instrument cluster.

MODEL 207 and MODEL 212 with Intelligent Light System as of model year 2014

Headlamp adjustment occurs in the on-board computer via the instrument cluster.

MODEL 216

The headlamps are not adjusted manually. The headlamps are adjusted using STAR DIAGNOSIS.

Procedure:

Menu item "Control units"
Menu item "Body
Menu item "Left xenon headlamp control unit"
Menu item "Control unit adaptations"

Model 218 with full LED headlamps

Headlamp adjustment occurs in the on-board computer via the instrument cluster.

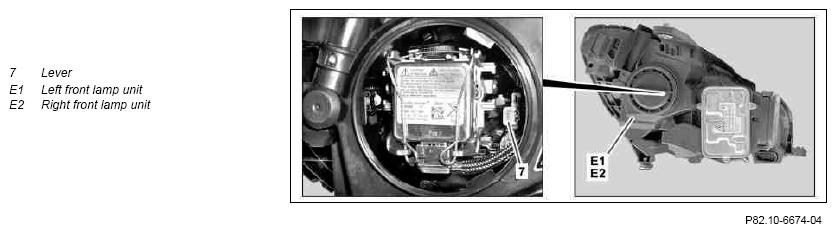

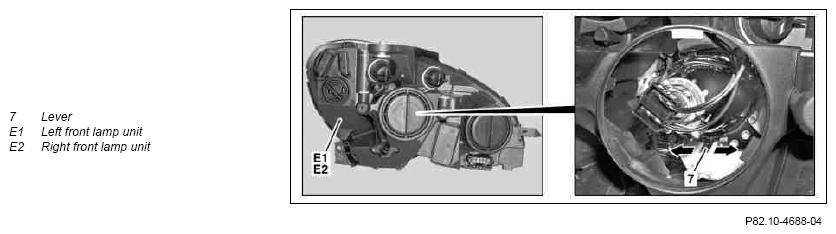

Model 218 with bi-xenon headlamps

Fig 16: Identifying Bi-Xenon Headlamps Components (Model 218)

Courtesy of MERCEDES-BENZ USA

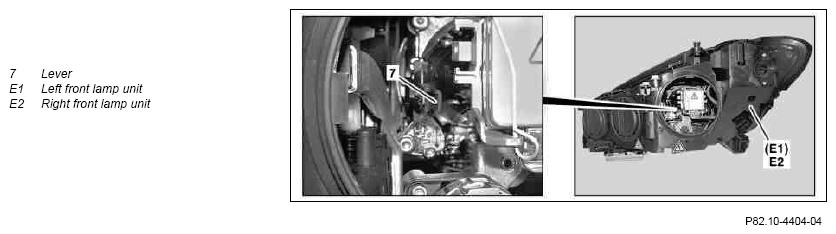

Model 219 with halogen headlamps

Fig 17: Identifying Halogen Headlamps Components (Model 219)

Courtesy of MERCEDES-BENZ USA

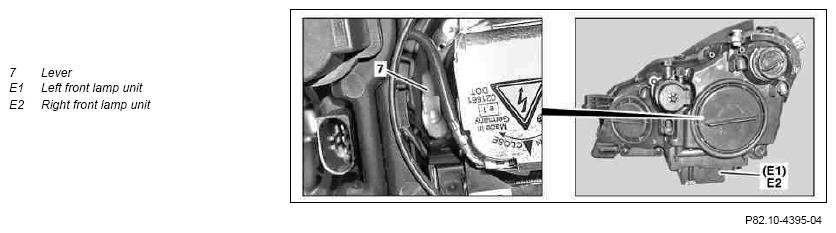

Model 219 with xenon headlamps

Fig 18: Identifying Xenon Headlamps Components (Model 219)

Courtesy of MERCEDES-BENZ USA

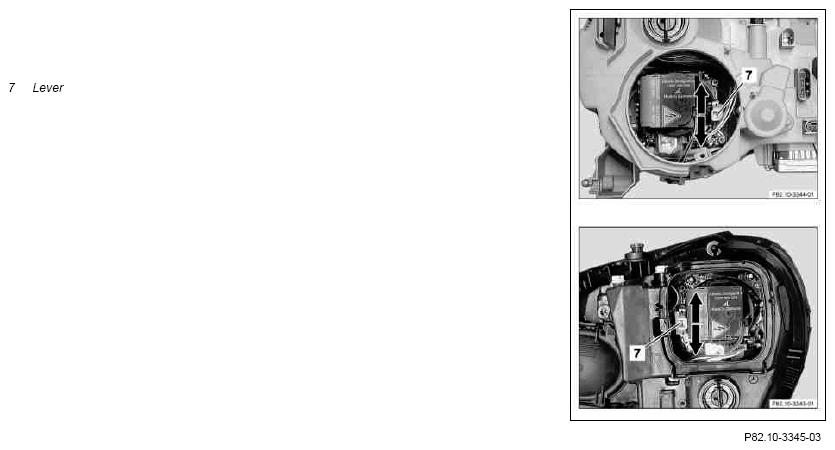

Model 215 with xenon headlamps (top picture) and model 220 with xenon headlamps (bottom picture)

Fig 19: Identifying Xenon Headlamps Components (Model 220)

Courtesy of MERCEDES-BENZ USA

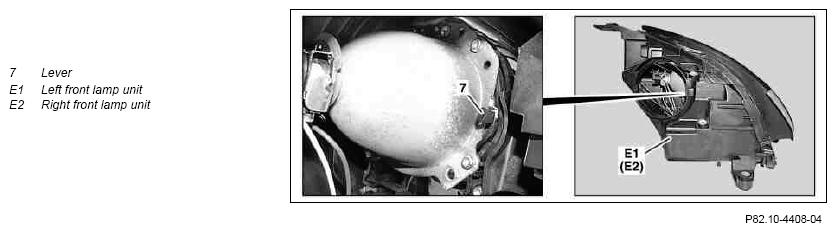

Model 220 with halogen headlamps

Fig 20: Identifying Halogen Headlamps Components (Model 220)

Courtesy of MERCEDES-BENZ USA

Model 221 with halogen headlamps

Fig 21: Identifying Halogen Headlamps Components (Model 221)

Courtesy of MERCEDES-BENZ USA

Model 221 with xenon headlamps

Fig 22: Identifying Xenon Headlamps Components (Model 221)

Courtesy of MERCEDES-BENZ USA

MODEL 230, shown on model up to 28.1.08

Fig 23: Identifying Xenon Headlamps Components (Model 230)

Courtesy of MERCEDES-BENZ USA

Model 245 with halogen headlamps

Fig 24: Identifying Halogen Headlamps Components (Model 245)

Courtesy of MERCEDES-BENZ USA

Model 245 with xenon headlamps

Fig 25: Identifying Xenon Headlamps Components (Model 245)

Courtesy of MERCEDES-BENZ USA

MODEL 117, 156, 176, 242, 246 with xenon headlamp, shown on MODEL 246

Fig 26: Identifying Xenon Headlamp Components (Model 246)

Courtesy of MERCEDES-BENZ USA

MODEL 117, 156, 176, 242, 246 with Intelligent Light System

Headlamp adjustment occurs in the on-board computer via the instrument cluster.

Model 251 with halogen headlamps

Fig 27: Identifying Halogen Headlamps Components (Model 251)

Courtesy of MERCEDES-BENZ USA

Model 251 with xenon headlamps

Fig 28: Identifying Xenon Headlamps Components (Model 251)

Courtesy of MERCEDES-BENZ USA
