Remove/install overhead control panel control unit - AR82.20-P-1000CW
MODEL 204, 207, 212, 218
Shown with model 204.0

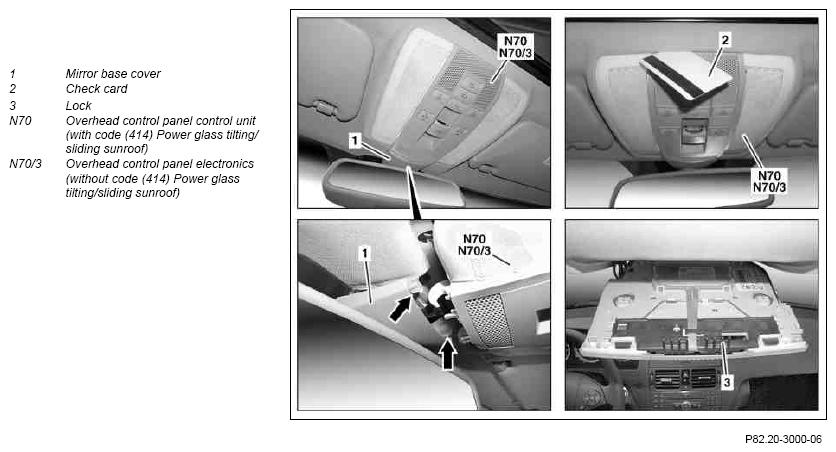

Fig 1: Identifying Overhead Control Panel Control Unit Remove/Install Components - Shown On Model 204.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of overhead control panel control unit (N70) or overhead control panel electronics (N70/3) | When replacing overhead control panel control unit (N70) or overhead control panel electronics (N70/3). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key | ||
| 3.1 | Unclip mirror base cover (1) | MODEL 204, 207.3, 212, 218 | |
| Figure | |||
| 3.2 | Unclip rain sensor cover | MODEL 207.4 without CODE 513 (Speed Limit Assist) without CODE 608 (Automatic high beam control) |
|
| 3.3 | Slide cover for rain sensor to the foremost position and remove downwards | MODEL 207.4 with CODE 513 (Speed Limit Assist) with CODE 608 (Automatic high beam control) |
|
| 4 | Release and lower overhead control panel control unit (N70) or overhead control panel electronics (N70/3) | ||
| 5 | Disconnect all electrical connectors at the overhead control panel control unit (N70) or overhead control panel electronics (N703) | ||
| 6 | Detach and remove overhead control panel control unit (N70) or overhead control panel electronics (N70/3) (arrow) | ||
| 7 | Install in the reverse order | ||
| 8 | Normalize tilting/sliding roof | When replacing overhead control panel control unit (N70) with code (414) Power glass titling/sliding roof. |
