Remove/install media interface control unit - AR82.60-P-1030EL
MODEL 218.3 up to model year 2013 with CODE 518 (Media interface)
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of media interface control unit (N125/1) | ||
| AD00.00-P-2000-04A | |||
| 2 | Remove rear center console | AR68.20-P-2020EL | |

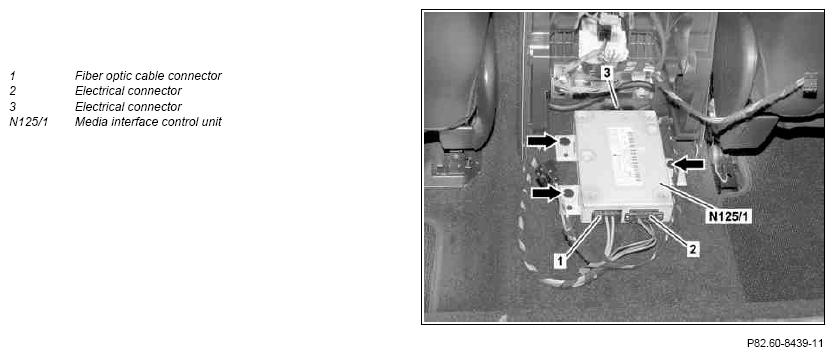

| 3 | Remove expansion clips (arrows) and lift media interface control unit (N125/1) | ||
| 4 | Disconnect electrical connections (2, 3) | ||
| 5 | Disconnect optical fiber connector (1) and cover equipment connector at media interface control unit (N125/1) | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| 6 | Remove media interface control unit (N125/1) | ||
| 7 | Install in the reverse order |
