Remove/install loudspeaker amplifier control unit - AR82.62-P-7720EW
MODEL 212.0/1 up to model year 2014 with CODE 810 (Sound system)
MODEL 218 with CODE 810 (Sound system)

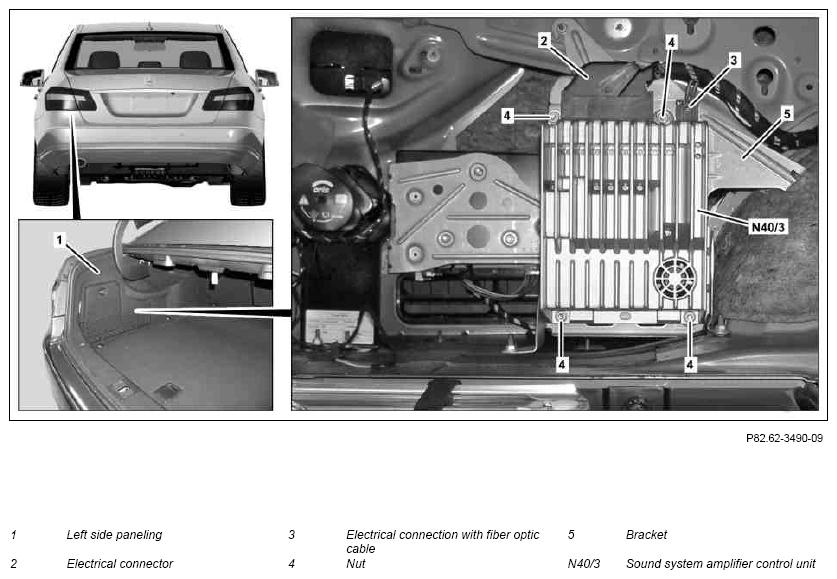

Fig 1: Identifying Loudspeaker Amplifier Control Unit Remove/Install Components - Shown On Model 212.0
Shown on model 212.0

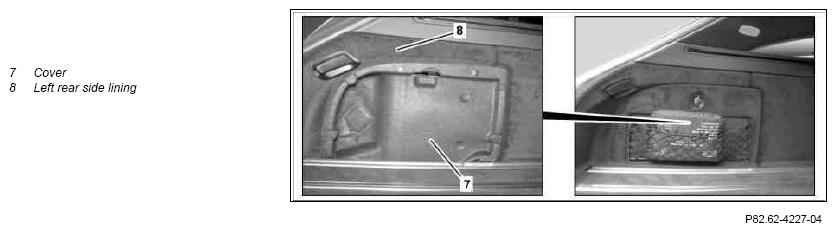

Fig 2: Identifying Loudspeaker Amplifier Control Unit Remove/Install Components - Shown On Model 218.9
MODEL 218.9
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of sound system amplifier control unit (N40/3) | When replacing sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 212.0/1 up to model year 2014 with CODE 810 (Sound system) without CODE 889 (KEYLESS-GO) MODEL 218 with CODE 810 (Sound system) without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 212.0/1 up to model year 2014 with CODE 810 (Sound system) with CODE 889 (KEYLESS-GO) MODEL 218 with CODE 810 (Sound system) with CODE 889 (KEYLESS-GO) |
|
| 3.1 | Remove left side paneling (1) | MODEL 212.0/1 up to model year 2014 with CODE 810 (Sound system) MODEL 218.3 with CODE 810 (Sound system) |
|
| MODEL 212.0/1 up to model year 2014 with CODE 810 (Sound system) |
AR68.30-P-4600EW | ||
| MODEL 218.3 with CODE 810 (Sound system) |
AR68.30-P-4600EL | ||
| 3.2 | Remove cover (7) from left rear side lining (8) | MODEL 218.9 with CODE 810 (Sound system) |
|
| AR68.30-P-1180ELX | |||
| 4 | Disconnect electrical connection (2) | ||
| 5 | Disconnect electrical connector with optical fiber (3) and cover equipment connection at sound system amplifier control unit (N40/3) | ||
| 6 | Unscrew nuts (4) | ||
| 7 | Remove sound system amplifier control unit (N40/3) from bracket (5) | ||
| 8 | Install in the reverse order |
