Remove/install headlamp range adjustment front axle sensor - AR82.10-P-4083CW
MODEL 204.0/2/3 with CODE 614 (Bi-xenon headlamp unit)
MODEL 204.0/2/3 with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 204.0/2/3 with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination)
MODEL 204.0/2/3 with CODE 618 (Bi-xenon headlamps)
MODEL 204.0/2/3 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 204.0/2/3 with CODE 622 (Intelligent Light System)
MODEL 204.9 with CODE 614 (Bi-xenon headlamp unit)
MODEL 204.9 with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 204.9 with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination)
MODEL 204.9 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 204.9 with CODE 622 (Intelligent Light System)
MODEL 207, 212 with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 207, 212 with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination)
MODEL 207, 212 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 207, 212 with CODE 622 (Intelligent Light System)
MODEL 207, 212 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 207, 212 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 207, 212 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 218

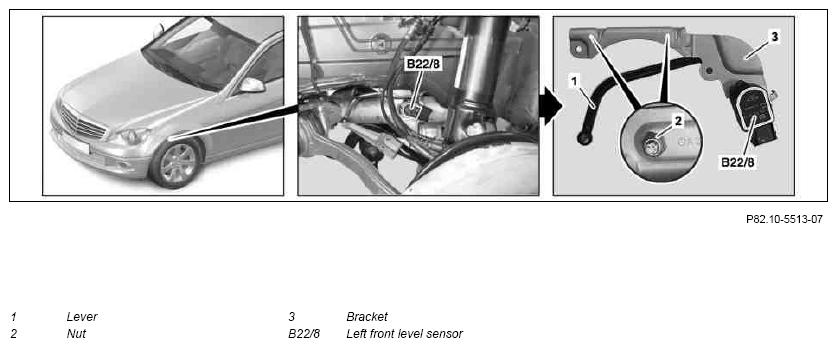

Shown on model 204.0

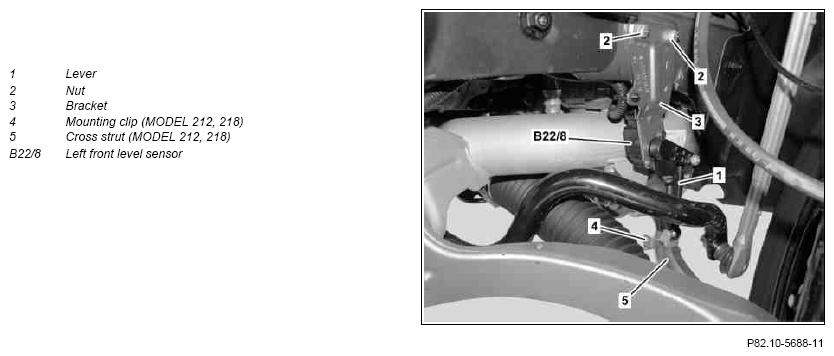

Shown on model 212
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | ||
| 2 | Push left fender liner front section to one side in area of left front level sensor (B22/8) | Model 204.9 | |
| 3 | Unclip electrical wiring harness from bracket (3) | ||
| 4 | Disconnect electrical connection from left front level sensor (B22/8). | ||
| 5.1 | Unclip lever (1) at torsion bar | MODEL 204.0/2/3, 207 | |
| 5.2 | Unclip lever (1) at strut rod | Model 204.9 | |
| 5.3 | Unclip mounting clip (4) at lever (1) of cross strut (5) | MODEL 212, 218 | |
| 6 | Unscrew nuts (2) | ||
| 7 | Remove bracket (3) with left front level sensor (B22/8) | ||
| 8 | Remove lever (1) from left front level sensor (B22/8) | Model 204.9 When replacing left front level sensor (B22/8). |
|
| 9 | Install in the reverse order | ||
| 10 | Connect diagnostic system, read out fault memory and adjust zero position of headlamps | ||
| AD00.00-P-2000-04A | |||
| 11 | Check headlamp setting and correct if necessary | ||
| MODEL 204 | AP82.10-P-8260CW | ||
| MODEL 207, 212, 218 | AP82.10-P-8260EW |
