Remove/install control unit for TELE AID emergency call system - AR82.95-P-0005EL
MODEL 218 as of model year 2013 with CODE 348 (Emergency call/assistant system)
MODEL 218 up to model year 2015 with CODE 359 (TELE AID emergency call system)
Illustrated in model 218.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2.1 | Remove front trunk floor paneling | MODEL 218.3 as of model year 2013 with CODE 348 (Emergency call/assistant system) MODEL 218.3 up to model year 2015 with CODE 359 (TELE AID emergency call system) |
|
| AR68.30-P-4600EL | |||
| 2.2 | Remove cargo area floor at front | MODEL 218.9 as of model year 2013 with CODE 348 (Emergency call/assistant system) MODEL 218.9 up to model year 2015 with CODE 359 (TELE AID emergency call system) |
|

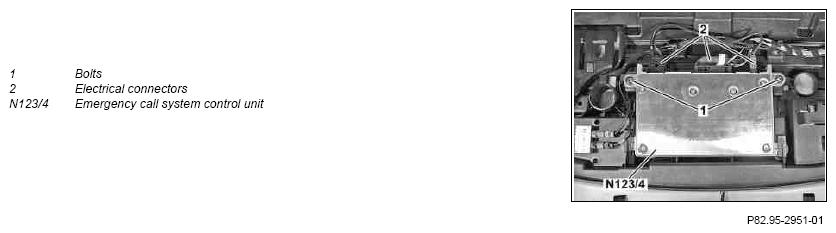

| 3 | Remove bolts (1) | ||
| 4 | Separate electrical connectors (2) | ||
| 5 | Remove emergency call system control unit (N123/4) towards rear | ||
| 6 | Install in the reverse order |
