Remove/install contact plate for cell phone holder (UPCI (UHI)) in the armrest - AR82.70-P-8919EW
MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony)
MODEL 218 with CODE 386 (Comfort telephony)
Shown on model 212.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

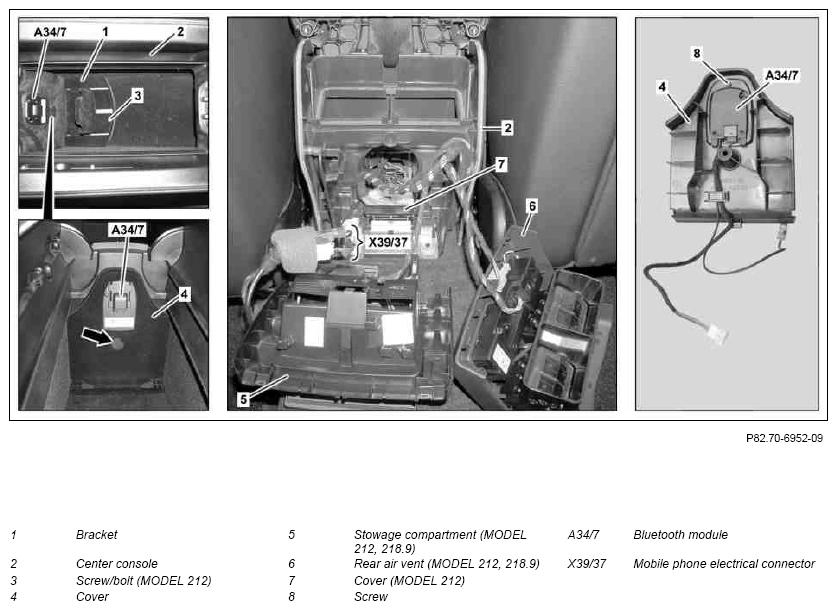

| 1.1 | Remove rear air vent (6) from center console (2) and lay down to one side with electrical lines connected | MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony) MODEL 218.9 with CODE 386 (Comfort telephony) |
|
| MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony) |
AR83.10-P-4800CW | ||
| MODEL 218.9 with CODE 386 (Comfort telephony) |
AR83.10-P-4800EL | ||
| 1.2 | Remove rear center console and place to one side with connected electrical lines | MODEL 218.3 with CODE 386 (Comfort telephony) |
|
| AR68.20-P-2020EL | |||
| 2 | Remove stowage compartment (5) from center console (2) and lay down to one side with electrical lines connected | MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony) MODEL 218.9 with CODE 386 (Comfort telephony) |
|
| MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony) |
AR68.20-P-2230EW | ||
| 3 | Fold cover (7) up toward rear | MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony) |
|
| 4 | Slide back foam rubber jacketing and disconnect mobile phone electrical connector (X39/37) | ||
| 5 | Unscrew bolt (3) | MODEL 212.0/1 with CODE 279 (Electronic gear selector) with CODE 386 (Comfort telephony) |
|
| 6 | Remove bracket (1) from center console (2) | ||
| 7 | Unscrew screw (arrow) | ||
| 8 | Remove cover (4) with Bluetooth module (A34/7) upwards out of center console (2) while leading electrical wiring harness of Bluetooth module (A34/7) out of center console (2) | ||
| 9 | Unscrew screw/bolt (8) and remove Bluetooth module (A34/7) with electrical wiring harness from cover (4) | ||
| 10 | Install in the reverse order |
