Remove/install additional fan for COMAND - AR82.85-P-0005EL
MODEL 218 up to 2/28/13 up to model year 2014
| Remove/install | ||

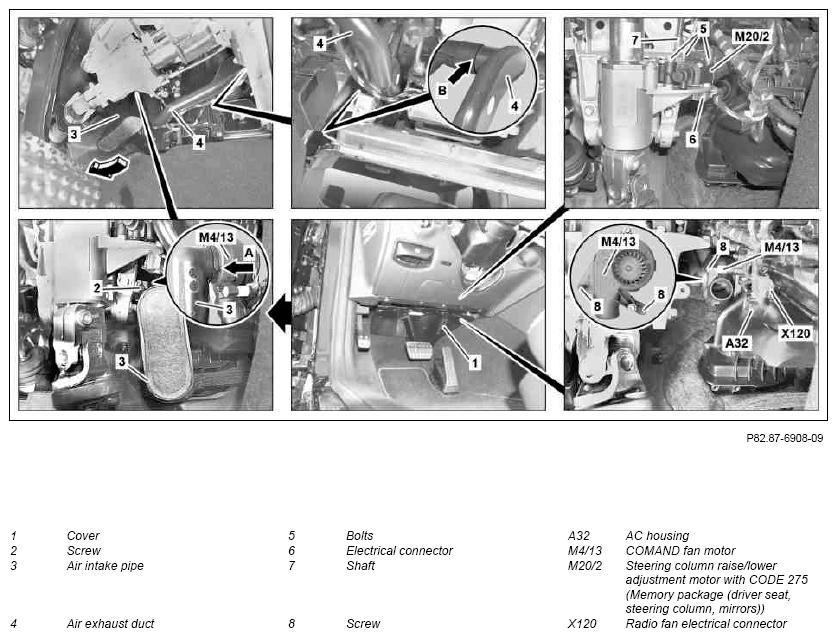

| 1 | Switch off ignition and remove transmitter key | |
| 2 | Remove cover (1) below dashboard on left | |
| 3 | Unscrew bolt (2) | |

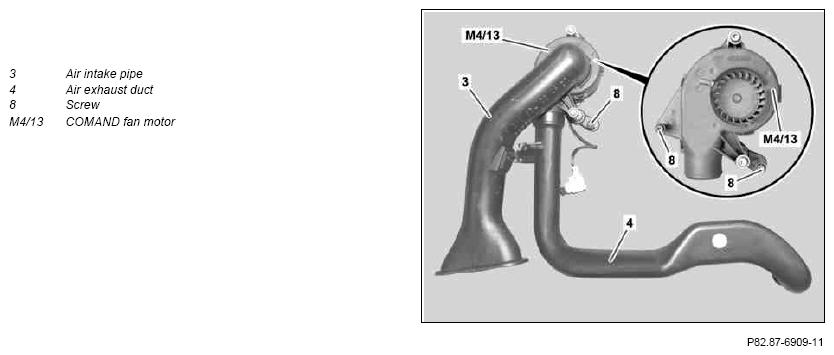

| 4 | Swivel air intake pipe (3) at bottom forward and remove | Ensure that air intake pipe (3) engages completely (arrow A) at COMAND fan motor (M4/13). Otherwise air intake pipe (3) may detach and cause noises. |
| 5 | Remove air exhaust duct (4) from COMAND fan motor connection (M4/13) | |
| 6 | Pull air exhaust duct (4) out of connection (arrow B) | |
| 7 | Remove air exhaust duct (4) downward | |
| 8 | Remove screws/bolts (5) and remove steering column raise/lower adjustment motor (M20/2) until electric connector (6) is accessible | Vehicles with code 275 (Memory package (driver's seat, steering column, mirrors)) |
| 9 | Disconnect electric connector (6) and remove steering column raise/lower adjustment motor (M20/2) until shaft (7) is accessible Vehicles with code 275 (Memory package (driver's seat, steering column, mirrors)) | |
| 10 | Guide shaft (7) out of steering column raise/lower adjustment motor (M20/2) and remove steering column raise/lower adjustment motor (M20/2) | Vehicles with code 275 (Memory package (driver's seat, steering column, mirrors)) |
| 11 | Unclip radio fan electrical connector (X120) at air conditioner housing (A32) and disconnect | |
| 12 | Remove screws/bolts (8) until COMAND fan motor (M4/13) detaches | |
| 13 | Remove COMAND fan motor (M4/13) from air conditioner housing (A32) | |
| 14 | Install in the reverse order |
