Remove/install fender liner in front fender - AR88.10-P-1300ELX
MODEL 207, 212, 218

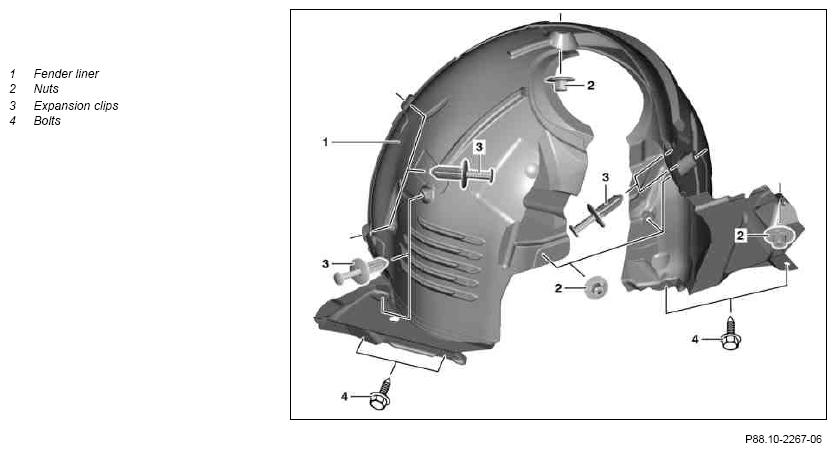

Shown on model 218
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove expansion clips (3) | ||
| 3 | Remove screws/bolts (4) | ||
| 4 | Unscrew nuts (2) | ||
| 5 | Pull outer edge of fender liner (1) toward inside out of fender edge and remove fender liner (1) downward | ||
| 6 | Install in the reverse order |
