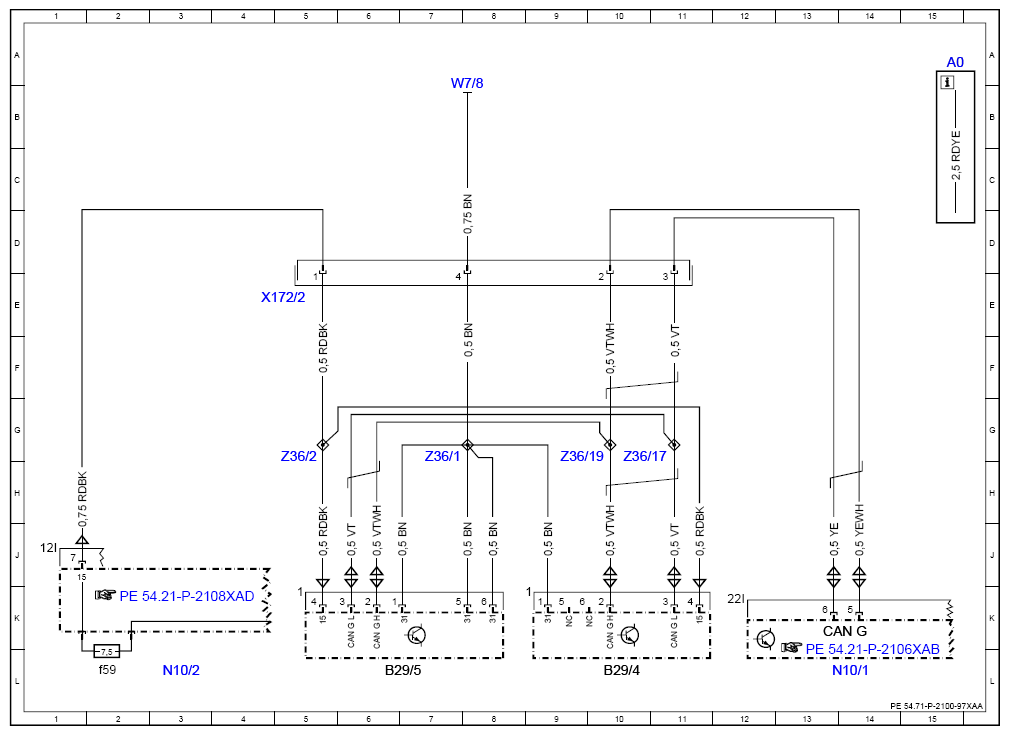

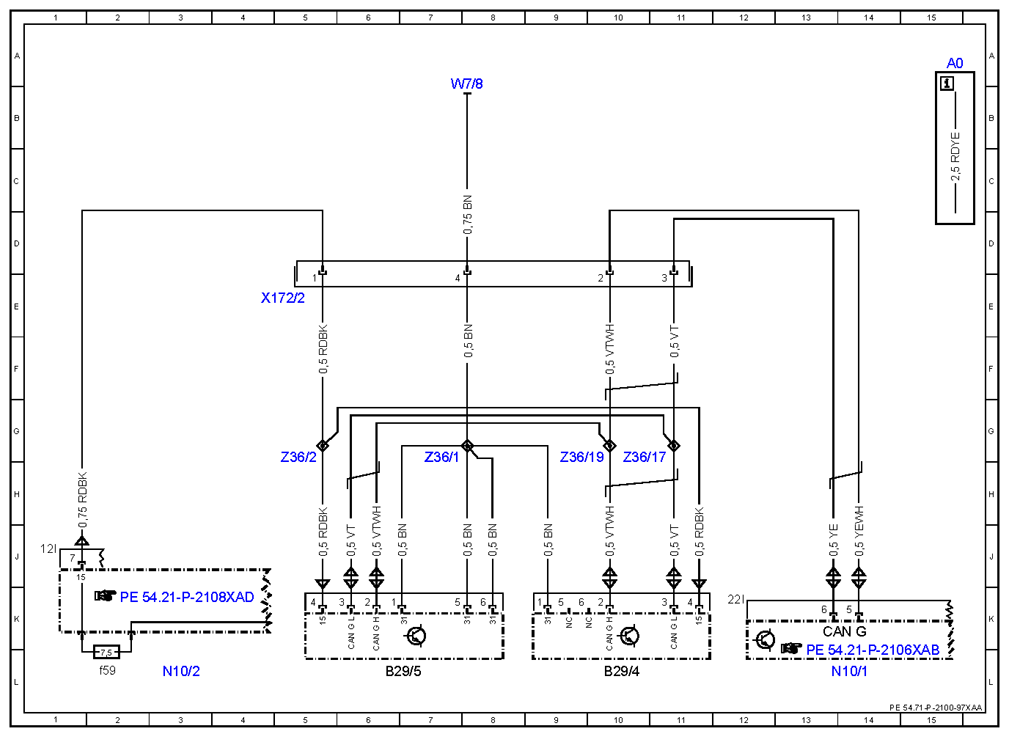

| A0 |
Color code key |
15A |
| B29/4 |
Left rear bumper intelligent radar sensor |
10L |
| B29/5 |
Right rear bumper intelligent radar sensor |
6L |
| CAN G |
Front end CAN |
13K |
| N10/1 |
Front SAM control unit with fuse and relay module |
14L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f59 |
Fuse 59 |
2L |
| W7/8 |
Right wheelhouse trunk ground point |
7B |
| X172/2 |
Rear bumper radar sensors electrical connector |
5E |
| Z36/1 |
Rear PARKTRONIC sensors ground line connector sleeve |
7G |
| Z36/17 |
Rear sensor CAN connector sleeve |
10G |
| Z36/19 |
Rear sensor CAN connector sleeve |
9G |
| Z36/2 |
Rear PARKTRONIC sensors positive line connector sleeve |
5G |
