Remove/install oil lines of oil cooling for automatic transmission - AR27.55-P-0600SX
TRANSMISSION 722.9 in MODEL 221.0/1, 216.3
without 4MATIC
TRANSMISSION 722.6 in MODEL 221.1, 216.3
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Open engine hood and raise to vertical position | ||

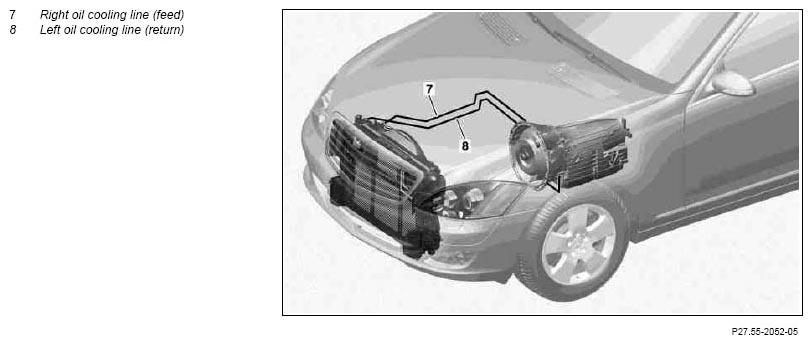

| 2 | Detach oil cooling lines (7, 8) from radiator | AR27.10-P-0501-03SX | |
| *129589009100 | |||
| 3 | Attach engine hoist | Model 221.095/195 | AR33.10-P-0105SX |
| 4 | Remove bolts of front engine mount from front axle carrier and lift engine | Model 221.095/195 | AR22.10-P-1260SXH |
| 5 | Detach ground line from bell housing | Model 221.095/195 | |
| *BA27.40-P-1001-01E | |||
| 6 | Remove double clamps and retaining clamps of oil cooling lines (7, 8) | *BA27.55-P-1009-01B | |
| *BA27.55-P-1006-01D | |||
| *BA27.55-P-1010-01B | |||
| *BA27.55-P-1005-01D | |||
| 7 | Detach oil cooling lines (7, 8) from automatic transmission | AR27.10-P-0502-01SX | |
| *BA27.55-P-1002-01B | |||
| *BA27.55-P-1009-01B | |||
| *BA27.55-P-1010-01B | |||
| *BA27.55-P-1002-01D | |||
| *BA27.55-P-1005-01D | |||
| *BA27.55-P-1006-01D | |||
| *129589009100 | |||
| 8 | Pull oil cooling lines (7, 8) out of radiator | See "Disconnect and connect transmission oil line". | AR27.10-P-0501-03SX |
| *129589009100 | |||
| 9 | Remove oil cooling lines (7, 8) | ||
| 10 | Install in the reverse order | ||
| 11 | Check oil level in automatic transmission and correct if necessary | Transmission 722.9 | AR27.00-P-0270W |
| Transmission 722.6 | AR27.00-P-0100AC | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Perform engine test run and check transmission for proper function and leaktightness. |
HOUSING
| Number | Designation | Transmission 722.9 in Model 216, 221 | |
|---|---|---|---|
| BA27.40-P-1001-01E | Bolt, automatic transmission to crankcase | Nm | 39 |
TRANSMISSION OIL COOLING SYSTEM
| Number | Designation | Transmission 722.9 | |||
|---|---|---|---|---|---|
| BA27.55-P-1002-01D | Bolt, transmission oil line to transmission housing | Banjo bolt | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | |||
| Hexalobular bolt | Nm | 12 | |||
| BA27.55-P-1005-01D | Bolt, oil cooling line double clamp to bracket | Nm | 8 | ||
| BA27.55-P-1006-01D | Bolt, oil cooling line double clamp to engine oil pan | Nm | 8 |
TRANSMISSION OIL COOLING
| Number | Designation | Transmission 722.6 in model 204, 216, 221 | ||
|---|---|---|---|---|
| BA27.55-P-1002-01B | Banjo bolt or union nut, oil cooler line to torque converter and transmission housing | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | ||
| Hexalobular bolt | Nm | 12 | ||
| BA27.55-P-1009-01B | Bolt, oil cooling line double clamp to engine oil pan | Nm | 10 | |
| BA27.55-P-1010-01B | Bolt, oil cooling line double clamp to bracket | Nm | 10 |
