Remove and install wiper arm - AR82.30-P-6100SX

MODEL 216.3, 221.0 /1

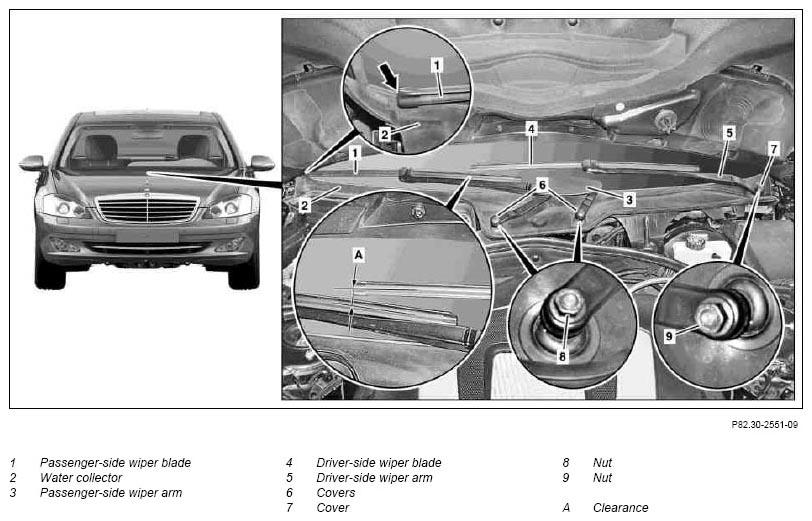

Fig 1: Identifying Wiper Arm Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Move wiper system to home position
2	Switch off ignition and detach transmitter key or Keyless Go start/stop button from EIS [EZS] control unit	Keyless Go start/stop button only for vehicles with code (889) Keyless Go.
3	Remove cover (7), remove nut (9) and remove driver side wiper arm (5)	Installation:  Position driver side wiper arm (5) such that the distance (A) of approx. 20 mm is maintained.
			*201589143300
			*210589046300
			*BA82.30-P-1001-01L
4	Remove covers (6), remove nuts (8) and remove passenger side wiper arm (3)	Installation:  Position passenger side wiper arm (3) such that the upper end of the wiper blade on the passenger side wiper blade (1) contacts with the water collector (2) (arrow).
			*201589143300
			*210589046300
			*BA82.30-P-1001-01L
5	Install in the reverse order

WINDSHIELD WIPER

Number	Designation		Model 216	Model 221.0/1
BA82.30-P-1001-01L	Nut to wiper arm	Nm	33	33

Fig 2: Identifying Puller (201 589 14 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
